10kv led SPD street light surge protection device Additive protection for electronic luminaire devices

10kv led SPD street light surge protection device Additive protection for electronic luminaire devices

  • 10kv led SPD street light surge protection device Additive protection for electronic luminaire devices
  • 10kv led SPD street light surge protection device Additive protection for electronic luminaire devices
10kv led SPD street light surge protection device Additive protection for electronic luminaire devices
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/UL/CB/CE/ROHS/ISO9001
Model Number: BR-LED-10S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15 days after payment
Payment Terms: T/T, D/P
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Features: Waterproof & Dustproof Item Name:: Led Street Light Surg Protector
Protection Level: T2+T3 Maximum Continuous Operating Voltage: 275VAC
Protection Level/Up: 1.8kV Application: Power Supply System
Open-Circuit Voltage/Uoc: 10kV TA: ≤25ns
Environment: Outdoor



275V 10kv 6kv spd led street light surge protection device



LED Surge Protection Device Modules 10kA Outdoor SPD Feature:


Protection of LED lighting systems and drivers

Provide 10kV lightning surge protection

Space saving footprint for mounting in confined locations

Smart Over-Temperature Protection

Protection for 230V Systems

Universal AC Input up to 275Vac

High performance to size ratio

Waterproof up to IP65

Fully automatic operation

Comprehensive Protection Circuitry

Rated for harsh environments

2 years product warranty

Metal Oxide Varistor (MOV) technology and high energy discharge tube (gdt) technology with a state-of-the-art failure disconnect network


LED Surge Protection Device Modules 10kA Outdoor SPD Product Details:

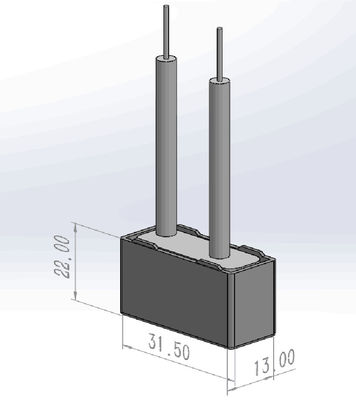

10kv led SPD street light surge protection device Additive protection for electronic luminaire devices 0

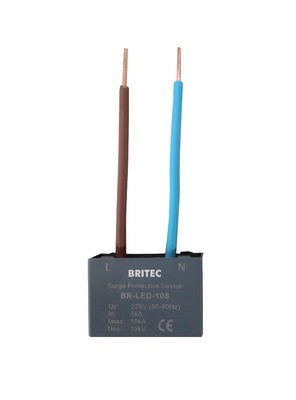

10kv led SPD street light surge protection device Additive protection for electronic luminaire devices 1



  BR-LED-10S
SPD classification according to EN61643-11 Type 2 + Type 3
SPD classification according to IEC 61643-11 Class II + Class III
Nominal a.c. voltage                                                  Un 230V
Max. continuous operating a.c. voltage                     Uc 275V
Nominal discharge current (8/20us)                            In 5kA
Maximum discharge current (8/20μs)                     Imax 10kA
Voltage protection level                                              Up ≤1. 8kV
Response time                                                            tA ≤25ns
Operating temperature range                                     Tu -40°C~ +80°C
Enclosure materail                    Thermal plastic UL94-V0





LED Surge Protection Device


Applications

• Outdoor and Commercial LED Lighting
• Roadway lighting
• Traffic lighting
• Digital signage
• Wall wash lighting
• Parking garage lighting
• Flood lighting
• Tunnel lighting
• Street lighting


Why is protection needed?

LED technology has become the reference technology for lighting, mainly because of four characteristics: efficiency, versatility, energy savings and longer life. In spite of these benefits, the technology has a number of drawbacks: Higher cost of implementation (initial investment) and internal electronics (LED optics and drivers), much more complex and sensitive to overvoltage than in the case of traditional light sources. For these reasons, the use of overvoltage protection systems is a very cost-effective investment, since it extends the life of the luminaires, ensures the cost effectiveness (ROI) of LED projects and reduces the costs of maintenance and replacement of luminaires. A surge protection device (SPD) connected upstream of the driver, complements the intrinsic immunity of the luminaire, creating much more robust protection against the effects of lightning and overvoltage.


Surge protection for LED Advantages:


1). We have our own factory.

2). Same design, better quality; Same quality, better price; Same price, better after-sale service.

3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce

     the defective percentage effectively, control the quality.

4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.

5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish

     long-term cooperative relationship.

6). Various Style, suitable for customers' demand

7). We can do OEM&ODM, produce according to your original sample or pictures.





10kv led SPD street light surge protection device Additive protection for electronic luminaire devices 2

Company Information:



We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!


10kv led SPD street light surge protection device Additive protection for electronic luminaire devices 3

Certificate:

Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.

10kv led SPD street light surge protection device Additive protection for electronic luminaire devices 4


FAQ:


Q1: Are you a manufacturer or trading company?
  A: We are a manufacturer of SPDs with more than 17 years experience.


Q2: Do you have any MOQ for order?
  A: MOQ is 1pcs.



Q3: What's your terms of payment?
  A: 30% T/T, balance before shipment.



Q4: Can you customize my products or put my logo on your products?
  A: Yes, we offer OEM and ODM services. Please inform us formally before production.



Q5: What's the lead time?
  A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.
