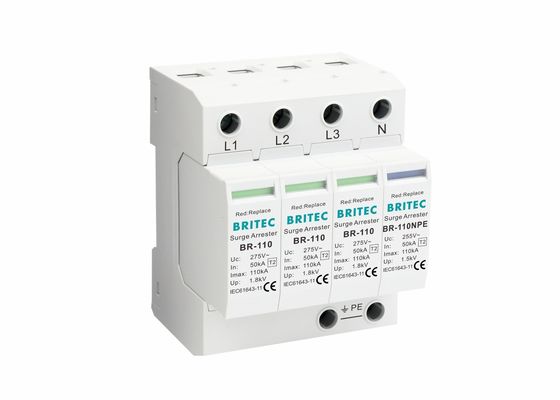

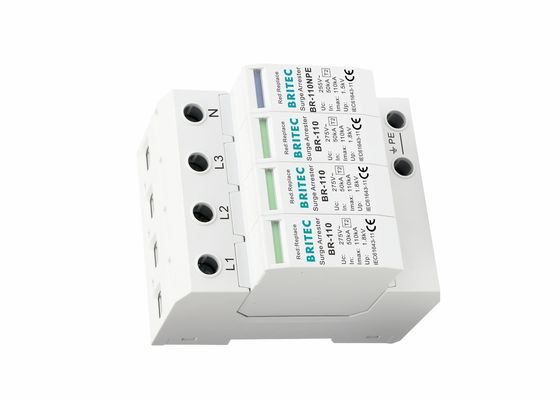

380V Type 2 Surge Protection Device 100KA Three Phase Electric Type

380V Type 2 Surge Protection Device 100KA Three Phase Electric Type

  • 380V Type 2 Surge Protection Device 100KA Three Phase Electric Type
  • 380V Type 2 Surge Protection Device 100KA Three Phase Electric Type
380V Type 2 Surge Protection Device 100KA Three Phase Electric Type
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: TY-100 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protector Type: Type 2
Pole Number: 3P+NPE Uc: 385V
In: 50kA Imax: 100kA
Degree Of Protection: IP20 Material: Plastic
Standards: EN61643-11/IEC61643-11 Operation: Electric Type
High Light:

380V Type 2 Surge Protection Device

,

Surge Protection Device 100KA

,

IP20 Three Phase Surge Protection Device

380V 385V Lightning Arrester 100KA Lightning Protection Three Phase AC Power Class C 3P+NPE



380V 385V Lightning Arrester 100KA Lightning Protection Application:

1) Three phase power SPD is suitable for system power protection, such as switching room, power distribution cabinet, switch cabinet, AC distribution board, etc.
2) For using in the lightning protection zones concept at boundary 1-2.
3) Distribution box with outdoor input in the building and each floor
4) AC power line of house, bank, and telecom tower and so on.
5) Low voltage(200/380VAC) industrial and civil power grid
6) AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage.
7) Automation machine room, power supply panel of converting station main control room



380V 385V Lightning Arrester 100KA Lightning Protection Technology characteristic:



Specification TY-100 3+1
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage         Uc 385V
Max. discharge current (8/20µs)                Imax 100kA
Norminal discharge current (8/20µs)            In 50kA
Voltage protection level                               Up ≤2.5kV
Response time                                             tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Max. backup fuse 315A gG
Operating temperature range                      Tu -40℃—80℃
Cross-section area (Min.) 6mm2
Cross-section area (Max.) 35mm2
Enclosure material Thermal plastic UL94-V0



380V 385V Lightning Arrester 100KA Lightning Protection Features:

1) Big discharger current capacity, low residual voltage, quick response
2) IP20, UL94 V0
3) Lowe leakage current and rate of change
4) Class II / Type 2 surge protective devices.
5) Heat isolation technique, no fire disaster
6) The core parts are metal oxide varistor components with high discharge capacity.
7) Apply special shock fuse pieces, with high reliability
8) Standard compliance: IEC61643-11, EN61643-11
9) With power indicator to display working condition
10) Protecting low voltage devices from surge for TN-S (or TT 3+1 mode as custom-made) power supply systems.
11) Temperature control protective circuit, built-in heat protection, automatic release unit
12) Mount on the 35mm DIN rail.
13) 3+1 protection model(L-N, N-PE), suitable for the poor power grid area
14) Nominal Discharge Current: 50kA
15) Max. Discharge Current: 100kA
16) Achieve Kevin wiring way, precise structure, easy installation and maintain
17) Exquisite process, can work under the hostile environment for a long time, like acid, alkali, dust, salt fog, wet, etc.



Operational principle:

In common situation, SPD is under high resistance. When the power network is under surge over voltage caused by lightning or other reasons, the SPD will be immediately powered with in microsecond; it will release the surge over voltage into the earth and protect the electrical equipment connected on the power network. When the surge voltage gets through the SPD and disappeared, the SPD will return to high resistance status. Then it will not affect the normal operation of the power network.



Company information:



Wenzhou Britec Electric Co., Ltd. is specialized in manufacturing SPDs. We were established in 2003, located in Yueqing, Zhejiang, China. Our main products include AC surge arrester, DC surge protector, data surge protection device etc.



380V Type 2 Surge Protection Device 100KA Three Phase Electric Type 0



Shipping:



380V Type 2 Surge Protection Device 100KA Three Phase Electric Type 1



Our service:



• Quick Response, we will reply your inquiry within 24 hours.

• Trial order acceptable.

• Supporting OEM/ODM, customzied as per customer's need.

• Delivery Punctually.

• QC SYSTEM, we have perfect and strict quality control team, ensure every product is 100% qualified.

• Perfect After-sales, any quality problem will be solve within 24 hours to ensure satisfy every customer.



Our certificate:



380V Type 2 Surge Protection Device 100KA Three Phase Electric Type 2



FAQ:



Q1: Are you a factory or a trade company?

  A: We are the factory.



Q2: Where are your products distributed?

  A: Our products are distributed all over the world, Main market are Europe, South America, the United Arab Emirates, Africa and so on.



Q3: Can I have a sample?

  A: Yes, but according to our company's policy, we don't provided free samples, while you should pay the sample cost and freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.



Q4: Which port is the nearest from you?

  A: Ningbo port or Shanghai port.



Q5: What's your lead time?

  A: Sample lead time: 10 working days. Mass production: usually 20days. For big orders, honestly, it depends on the order quantity and designs.



Q6: When can I get the price?

  A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.



Q7: Can you do the design for us?

  A: Yes, we have a professional team having rich experience in design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork.



Q8: OEM & ODM are accepted or not?

  A: OEM&ODM are welcome.
