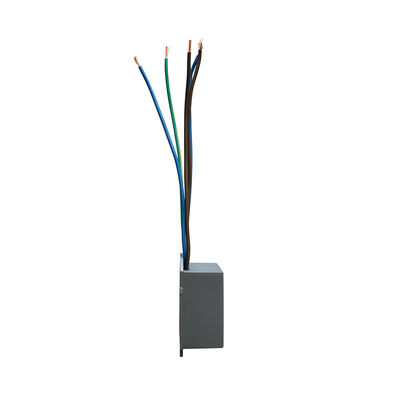

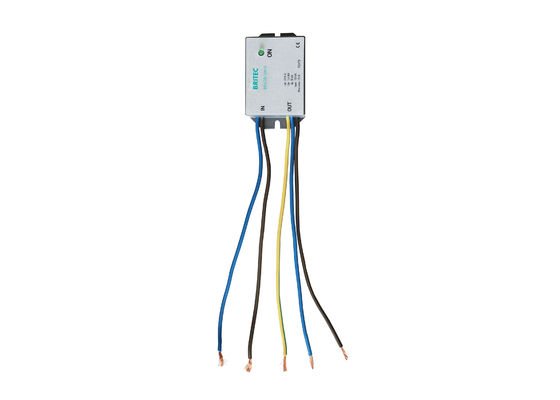

10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting

10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting

  • 10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting
  • 10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting
10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-LED-10INS
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: LED Surge Protection Type: Type 2+3
Material:: Thermal Plastic UL94-V0 Un: 230V
Uc: AC 275V In: 5kA
Imax: 10kA Up: ≤1.6kV
Tu: -40℃-80℃ Standard:: IEC61643-11 / EN 61643-11
High Light:

10kA LED Surge Protection Device

,

Thermal Plastic Surge Protection Device

,

LED Surge Protection Device 230V

10kA Type 2+3 Surge Protector LED Lighting Surge Protection Module Lightning Arrester


10kA Type 2+3 Surge Protector LED Lighting Surge Protection Module Feature:

10kA capable indicating surge arrestors for outdoor lighting applications.
New designed LED lighting surge protection module.
The Module is self-protected devices that can be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.
Specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
This device is constructed with thermally protected varistor technology.
Metal oxide varistor (MOV) thermal protection.
The built-in thermal disconnect provides additional protection against catastrophic failure/fire hazard under varistor end-of-life or sustained overvoltage conditions.


10kA Type 2+3 Surge Protector LED Lighting Surge Protection Module Product Details:


 BR-LED-10INS
SPD classification according to EN61643-11Type 2+3
SPD classification according to IEC 61643-11Class II+III
Nominal a.c. voltage                                                  Un230V
Max. continuous operating a.c. voltage                     Uc275V
Nominal discharge current (8/20us)                            In5kA
Max. discharge current (8/20us)                             Imax10kA
Voltage protection level                                              Up≤1.6kV
Response time                                                            tA≤100ns
Operating temperature range                                     Tu-40℃—80℃
Operating state / fault indicationgreen/non
Section of cables1mm²
Length of cables110mm
Degree of protectionIP65


Dimension:

10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting 0


10kA Type 2+3 Surge Protector LED Lighting Surge Protection Module Application:

Outdoor and commercial LED lighting
Roadway lighting
Traffic lighting
Digital signage
Wash wall lighting
Parking garage lighting
Floodlighting
Tunnel lighting
Street lighting

Why need LED surge protector?

LED lamp posts can be directly struck by lightning since they are usually in an exposed position. In some cases, this can affect entire streets, since the lights are interconnected within the power grid. If there are no suitable protective devices in place, the lightning current quickly can be dispersed across the entire installation and incur significant damage. Accordingly, suitable surge protection should be used as protection against damage from lightning or surge voltages.


Certifications:

10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting 1

Company information:

Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing city, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has got highly praise from customers.

10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting 2

Workshop:

10kA Thermal Plastic LED Surge Protection Device 230V For Traffic Lighting 3

FAQ:

Q1. What Certificates Have You Got?
A1: Our company is verified by ISO9001, and products approved by CE, CB, TUV etc.

Q2. What is your terms of payment?
A2: T/T 30% as deposit, 70% before delivery.

Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A4: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A5: Yes, we could produce by your samples or technical drawings. We are power in R&D.
