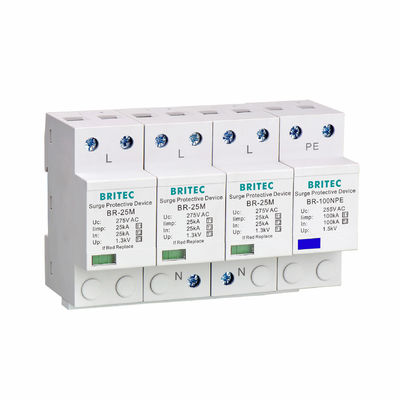

BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector

BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector
BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector

Large Image :  BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-25M 3P+1NPE
Payment & Shipping Terms:
Minimum Order Quantity: 15 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now

BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Surge Protector

Description
Item Name: 25kA Low Voltage Surge Arrestor Device Model Numbers: BR-25M 3P+1NPE
EN Type: T1+T2 Configuration: 3+1
Place Of Origin: Wenzhou Response Time: 25ns
Brand Name: BRITEC MOQ: 15 PCS
Highlight:

TVSS T1+T2 Surge Arrester B+C

,

25kA T1+T2 Surge Arrester B+C

,

25kA tvss arrester

BR-25M 3P+1NPE 25kA T1+T2 Surge Arrester B+C Low Voltage 3 Phase Type 1 AC SPD Surge Protector Class 1 & 2
Product Overview
T1+T2 surge arrester 25kA low voltage surge arrestor device providing comprehensive protection for electrical systems.
Key Features
  • Iimp by pole: 25 kA
  • Single, 3 or 3-Phase+Neutral AC network compatibility
  • 230/400 V, 120/208 V and 690 V AC network support
  • All AC system types compatibility
  • Common mode protection (CT1 configuration) or Common and Differential mode protection (CT2 configuration)
Technical Specifications
BR-25M 3P+1NPE surge arrester technical diagram
Parameter Specification
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 100kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Max. backup fuse 315A
Operating temperature range Tu -40℃ - +80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards IEC 61643-11, EN 61643-11
Dimensions
BR-25M 3P+1NPE surge arrester dimensional drawing
Applications
Application-optimized and prewired combined lightning current arrester. Particularly useful in high lightning density areas where the risk of heavy surge current or even direct strikes is high (e.g., buildings equipped with lightning rods).
Certifications
CB, CE, TUV, RoHS Certificate:
Product certifications and compliance certificates
Company Information
Wenzhou Britec Electric Co., Ltd. established in 2003 and located in Yueqing, Zhejiang, China. Our company specializes in research and development of surge protection devices. The series of surge protection device Type 1, Type 2, and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
Wenzhou Britec Electric company overview
Production Line
Surge protection device production line Manufacturing process and quality control
Laboratory Equipment
Testing and laboratory equipment Quality assurance testing equipment Advanced laboratory testing facilities
Shipping
Product packaging and shipping process
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
