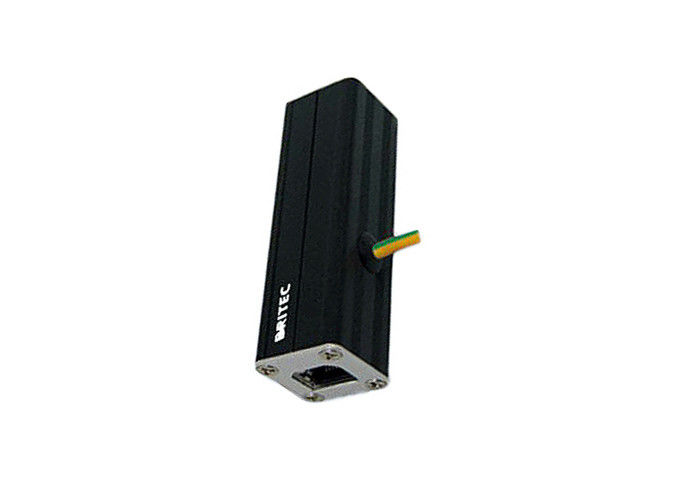

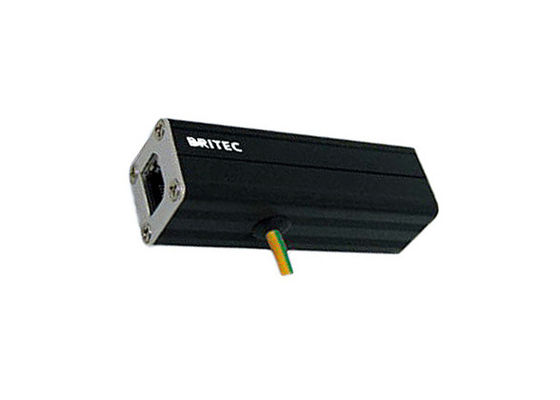

RJ45 Interface Ethernet Surge Protection Devices
Professional Ethernet cable surge protectors designed to safeguard network equipment from transient voltage spikes and lightning-induced surges.
Advanced Lightning Protection Technology
- Utilizes special diodes and gas discharge modules for effective lightning protection
- Multi-level protection system for comprehensive coverage
- Protects RJ45 Ethernet devices including switches, DSL modems, routers, and computers
- High discharge current capacity for maximum protection
- Available in multi-port configurations (8, 16, or 24 surge protecting ports)
- Low limiting voltage for optimal performance
- Fast energy absorption on over-voltage conditions
Technical Specifications
| Model |
BRRJ45L-4L |
| Test Standards |
IEC61643-21 |
| Nominal Voltage (Un) |
5V |
| Max Continuous Operating DC Voltage (Uc) |
6V |
| Max Continuous Operating AC Voltage (Uc) |
4V |
| Nominal Current (IL) |
0.5A |
| D1 Lightning Impulse Current (10/350μs) per line (Iimp) |
0.5kA |
| C2 Nominal Discharge Current (8/20μs) per line (In) |
1.5kA |
| Voltage Protection Level [Line-Line] (Up) |
≤30V |
| Voltage Protection Level [Line-PG] (Up) |
≤500V |
| Response Time [Line-Line] (tA) |
≤1ns |
| Response Time [Line-PG] (tA) |
≤100ns |
| Operating Temperature Range (Tu) |
-40℃ to +80℃ |
| Connection (Input/Output) |
RJ45 Socket |
| Bandwidth |
30 Mbps |
| Insertion Loss |
≤0.3dB |
| Enclosure Material |
Aluminium Alloy |
| Degree of Protection |
IP20 |
Product Dimensions
Application & Protection
BRRJ45 series signal surge protectors are ideal for computer networks including Ethernet, LAN, token ring systems, servers, routers, hubs, and broadband equipment. These devices protect RJ45 interfaces from damage caused by ground potential increases or line-induced overvoltage conditions.
Dual Protection Modes
Line-to-Line protection safeguards against short circuits between different network nodes, while Line-to-Ground protection prevents short circuits between network nodes and earth ground. This dual-mode approach ensures comprehensive protection regardless of where transients occur.
The nominal discharge current of 5kA represents the peak current capacity with an 8/20μs waveform, allowing the RJ45 lightning arrestor to remain functional after 15 surge events. When voltage exceeds design ratings, the surge protector begins clamping and directs energy to the electrical grounding system.
Manufacturer Information
Wenzhou Britec Electric Co., Ltd. is a specialized manufacturer and exporter of surge protection devices, including AC surge protectors, DC surge protection, LED lighting surge arresters, and data surge protective devices. Located in Yueqing, Zhejiang, China, we combine convenient transportation with excellent quality, competitive pricing, and superior service to serve customers worldwide. Our company culture is built on sincerity, trustworthiness, punctuality, and high-quality standards.
Certifications
Payment & Shipping
Frequently Asked Questions
Q1: Are you a trade company or a manufacturer?
A: We are the manufacturer and we are specialized in low voltage surge protection field.
Q2: What is your delivery date?
A: Sample Order: 15 days after receipt of the full payment; Mass Order: 30 days after receipt of the full payment; OEM Order: 30 days after receipt of the deposit.
Q3: What is your payment terms?
A: PayPal, TT, L/C etc.
Q4: Can you send samples?
A: Yes, every time you need, please contact us directly.
