EN 61643-11 Standard 8/20 Type 2 Surge Protection Device 35mm Dinrail

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	TY-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Surge Protective Device	Power:	AC
Standard:	IEC / EN 61643-11	Pole No.:	4P
Rated Voltage:	150V / 275V / 320V / 385V / 440V	In:	20kA
TA:	≤25ns	Mounting On:	35mm Din Rail
Color:	Gray And Black	Warranty:	2-5 Years
High Light:	EN 61643-11 Type 2 Surge Protection Device , 35mm Dinrail Type 2 Protector , TUV Type 2 Protector

40ka Surge Protective Device 8/20 SPD Lightning Arrester Power Lightning Protection

40ka Surge Protective Device 8/20 SPD Lightning Arrester Description:

- Surge protective devices consisting of a base part and MOV plug-in protection modules.

- It protects the indirect lightning and direct lightning impact or other transient overvoltage surge, which is mainly applicable to the residence, the third industry and the industrial and mining enterprises.

- High energy MOV inside.

- Safety insulation of fire retardant high flame retardant material

- Low residual voltage and quick response.

- Built-in overheating and temperature control circuit breaker

- Reliable control

- With 35mm standard DIN-rail mounting

- With remote signaling contact for control device.

- Connecting copper stranded conductor is 4~35mm²

- Fault indication via red mark in the inspection window.

- We also can supply more of product for low--voltage power system lightning protective device, surge protective device with Imax=60kA, 80kA, 100kA etc. And type B SPD with spark gap.

40ka Surge Protective Device 8/20 SPD Lightning Arrester Product Details:

	TY150 40 4P	TY275 40 4P	TY320 40 4P	TY385 40 4P	TY440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

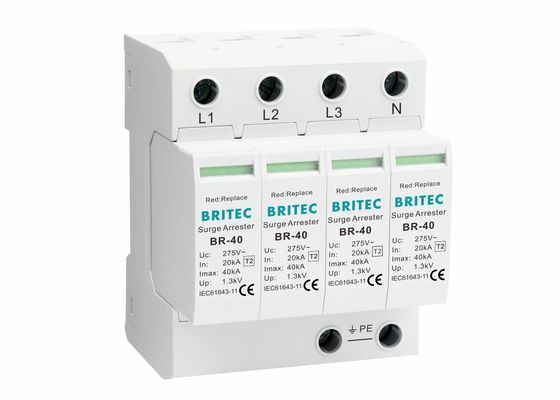

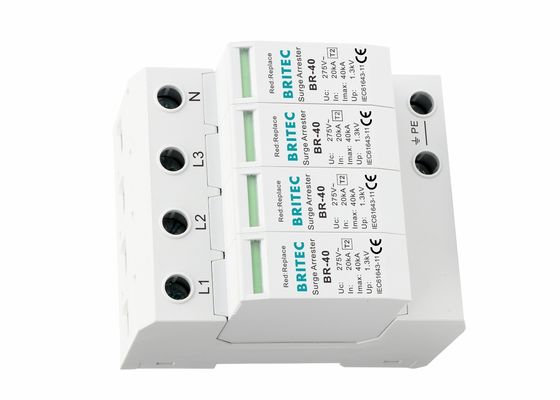

Product picture:

EN 61643-11 Standard 8/20 Type 2 Surge Protection Device 35mm Dinrail 0

40ka Surge Protective Device 8/20 SPD Lightning Arrester Application:

• Surge protection device are suitable for lightning and surge protection in AC 50/60Hz.

• The power supply surge protector is suitable for TN-S power supply systems, and factory low voltage power and control system.

• Application of AC power line of house, bank, and telecom tower and so on.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.

• In areas where storms are frequent, it is strongly recommended to install additional protection systems.
