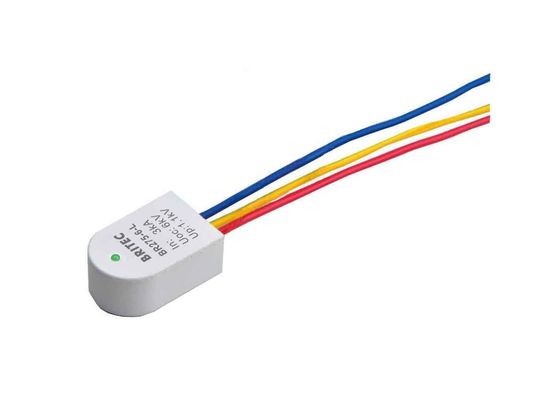

6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor

6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor

  • 6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor
  • 6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor
6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR275-6-L
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: LED Surge Protective Protection Level: Type 3
Un: 230V Uc: 275V
In: 3kA Imax: 6kA
Uoc: 6kV TA: ≤25ns
Housing Material: UL94-V0 Environment: Outdoor
High Light:

Outdoor led spd Modules


6kA 230V led spd


6kA spd for led lighting


LED Surge Protection Device Modules 6kA/230V Outdoor SPD for Street Lights


LED Surge Protection Device Modules 6kA/230V Outdoor SPD Feature:
Used in surge protectors, thermally protected varistor modules from Britec are built with high-quality, dependable materials.
LED Lights Surge Protection Device for LED Street Lights can be connected in series or parallel.

LED Surge Protection Device Modules 6kA/230V Outdoor SPD Product Details:


SPD classification according to EN61643-11 Type 3
SPD classification according to IEC 61643-11 Class III
Nominal a.c. voltage                                                  Un 230V
Max. continuous operating a.c. voltage                     Uc 275V
Max. continuous operating d.c. voltage                     Uc 300V
Nominal discharge current (8/20us)                            In 3kA
Combined impulse                                                   Uoc 6kV
Voltage protection level                                              Up ≤1. 2kV
Response time                                                            tA ≤25ns
Operating temperature range                                     Tu -40°C~ +80°C
Operating state / fault indication LED
Enclosure materail                    Thermal plastic UL94-V0
Degree of protection IP20



6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor 0

LED Surge Protection Device Modules 6kA/230V Outdoor SPD Description:
The BR275-6-L Modules are self-protected devices that can be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.
This LED street lighting surge protection devices are specially designed to protect outdoor and commercial LED lightning devices against surge and lightning damages.
It can provide up to 6kA protection module maximum lighting surge current.
This surge protective device sports its large capacity to withstand impulse current with 8/20µs waveform and low residual voltage, an ideal device for LED surge protection.
This device is constructed with Britec thermally protected varistor technology.
It meets IEC61643-11, EN61643-11, Class III compliance standards.
The built-in thermal disconnect provides additional protection against catastrophic failure/fire hazard under varistor end-of-life or sustained overvoltage conditions.
Why is protection needed?
LED technology has become the reference technology for lighting, mainly because of four characteristics: efficiency, versatility, energy savings and longer life. In spite of these benefits, the technology has a number of drawbacks: Higher cost of implementation (initial investment) and internal electronics (LED optics and drivers), much more complex and sensitive to overvoltage than in the case of traditional light sources. For these reasons, the use of overvoltage protection systems is a very cost-effective investment, since it extends the life of the luminaires, ensures the cost effectiveness (ROI) of LED projects and reduces the costs of maintenance and replacement of luminaires. A surge protection device (SPD) connected upstream of the driver, complements the intrinsic immunity of the luminaire, creating much more robust protection against the effects of lightning and overvoltage.

Surge protection for LED Advantages:

1). We have our own factory.

2). Same design, better quality; Same quality, better price; Same price, better after-sale service.

3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce

     the defective percentage effectively, control the quality.

4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.

5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish

     long-term cooperative relationship.

6). Various Style, suitable for customers' demand

7). We can do OEM&ODM, produce according to your original sample or pictures.


Packaging & Shipping:


• Standard packing for keeping your products safe

• Supply the packing as customer’s requirements

• Different transportation ways for your choice.

• FOB Port:Ningbo,Shanghai

• Delivery Time:15-30 days against the deposit.

• Payment Term:30% T/T in advance,the balance before shippment.


6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor 1

Company Information:


We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!

6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor 2
Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.
6kA 230V Outdoor LED SPD Modules Thermally Protected Varistor 3


Q1: Are you a manufacturer or trading company?
  A: We are a manufacturer of SPDs with more than 17 years experience.

Q2: Do you have any MOQ for order?
  A: MOQ is 100pcs.


Q3: What's your terms of payment?
  A: 30% T/T, balance before shipment.


Q4: Can you customize my products or put my logo on your products?
  A: Yes, we offer OEM and ODM services. Please inform us formally before production.


Q5: What's the lead time?
  A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.
