IEC61643-1 40ka AC 4 Pole SPD Surge Protector Thermal Plastic Housing

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	TY-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Type:	Surge Protection Device	Test Standards:	IEC 61643-11 / EN61643-11
Matrial:	Thermal Plastic	Max Input Voltage:	150V / 275V / 320V / 385V / 440V
In:	20kA	Max Discharge Current:	40kA
Poles Number:	4P	TA:	≤25ns
Mounting On:	35mm Din Rail	Application:	AC System
High Light:	40ka 4 pole SPD , IEC61643-1 4 pole SPD , IEC61643-1 ac surge protector

20ka-40ka Surge Protective Device AC 320V SPD 4 Pole Surge protectors

20ka-40ka Surge Protective Device AC 320V SPD Description:

• Intensity of Remote Signalling Alarm Contact.

• TY-40 Series surge protective device( hereinafter referred to as SPD) are suitable for AC 50/60Hz, rated voltage up to 380v IT,TT,TN-C, TN-S,TN-C-S and other power supply system, it protect to indirect and direct lightning effect or other transient overvoltage

• Failure indication and centralized remote signalling alarm dry contacts.

• SPD design according with GB18802.1/IEC61643-1 standard.

• High discharge capacity and low residual voltage;

• For protecting low voltage equipment from surge damages.

• Over-temperature protection;

• Pluggable module, easy for installation and maintenance.

• IP20, UL94 V0

20ka-40ka Surge Protective Device AC 320V SPD Product Details:

	TY150 40 4P	TY275 40 4P	TY320 40 4P	TY385 40 4P	TY440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Product picture:

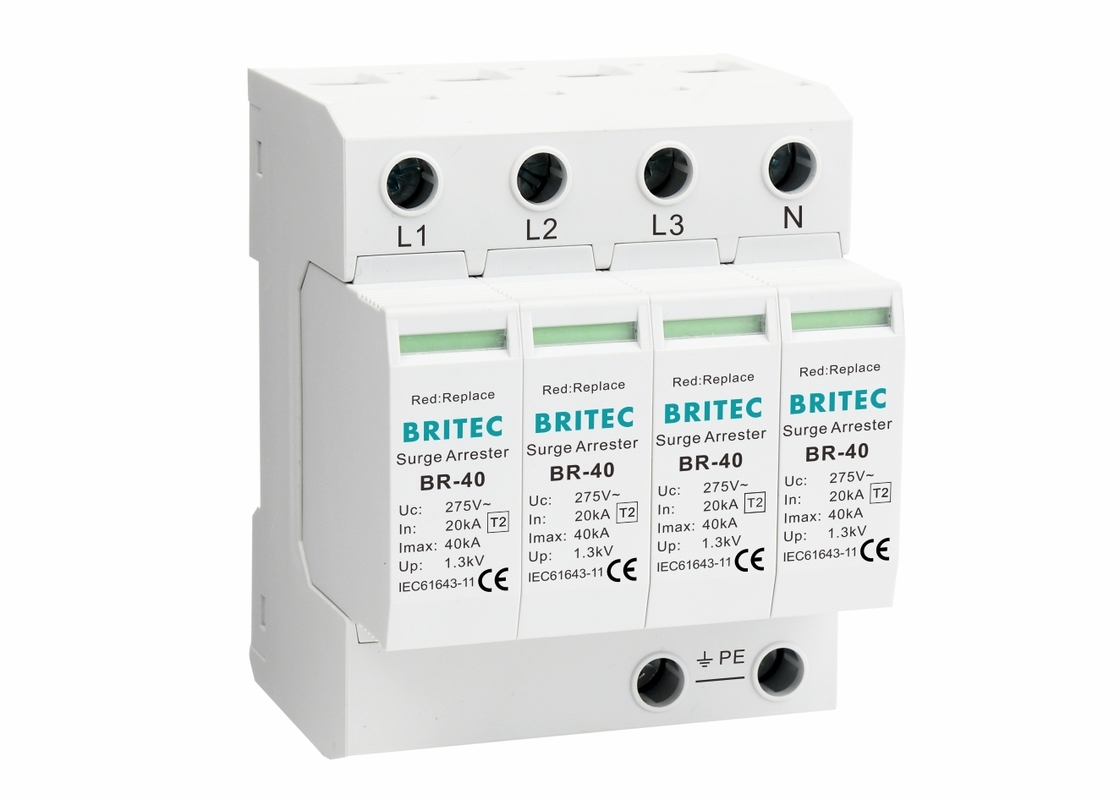

IEC61643-1 40ka AC 4 Pole SPD Surge Protector Thermal Plastic Housing 0

20ka-40ka Surge Protective Device AC 320V SPD Characteristic:

- Class II / Type 2 surge arrester.

- It is suitable for the AC 50/60HZ, the rated voltage 220V/380V power supply system to protect the indirect lightning and direct lightning impact or other instantaneous overvoltage surge, suitable for home housing and the third industry.

- Consisting of a base part and 4 MOV plug-in protection modules.

- New technology, high energy

- For using in the lightning protection zones concept at boundary 1-2.

- Number of poles: 4P

- The core parts are metal oxide varistor components with high discharge capacity.

- Low residual voltage and quick response.

- Reliable control.

- With remote signaling contact for control device.

- Fault indication via red mark in the inspection window.

Working principle of product:

• Surge protector is an indispensable device in lightning protection of electronic equipment. It used to be called "lightning arrester" or "overvoltage protector". The function of surge protector is to limit the transient overvoltage to the power line and signal transmission line within the electric pressure range that the equipment or system can bear, or to inflow the powerful lightning discharge into the ground. The protected equipment or system is not damaged by impact.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Certificate:

Company profile:

Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 17 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.

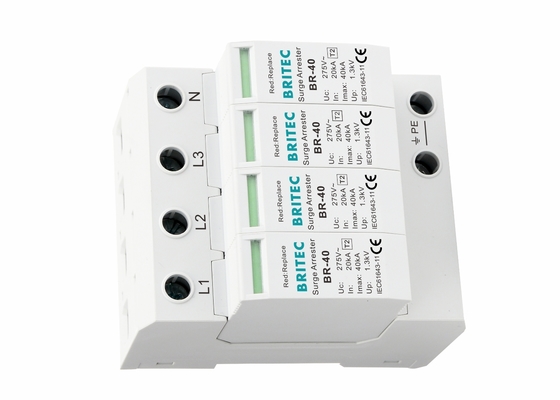

IEC61643-1 40ka AC 4 Pole SPD Surge Protector Thermal Plastic Housing 2
