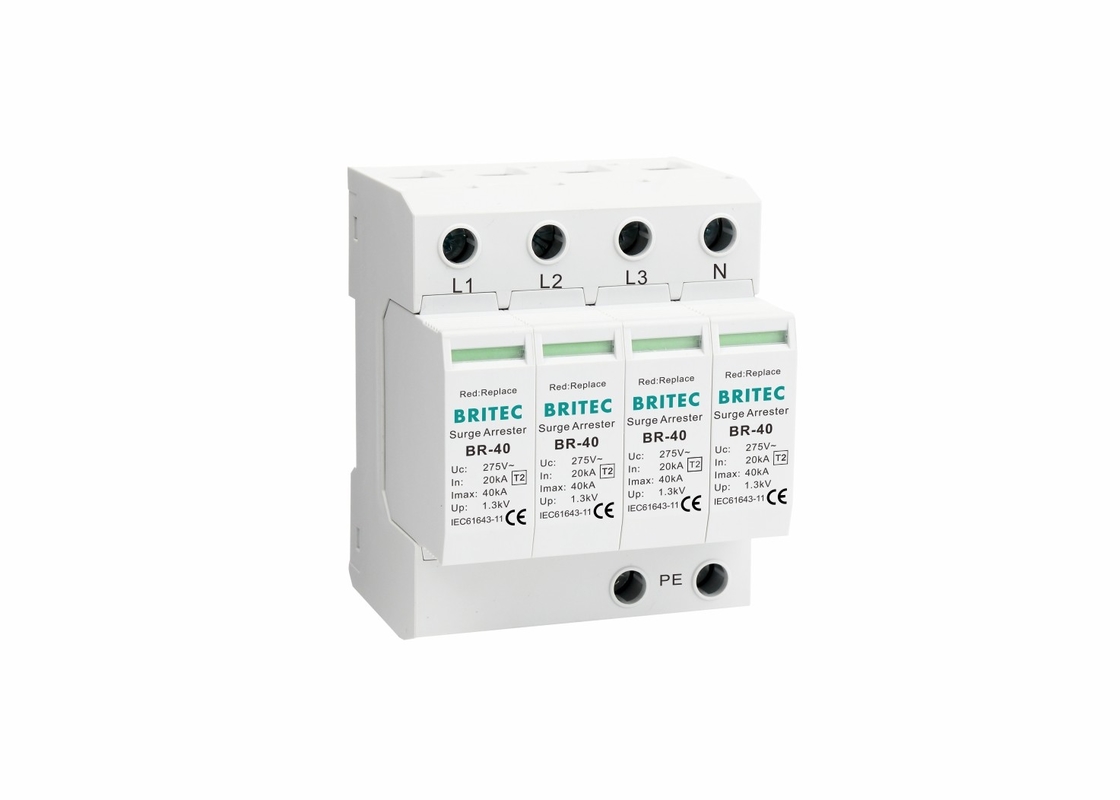

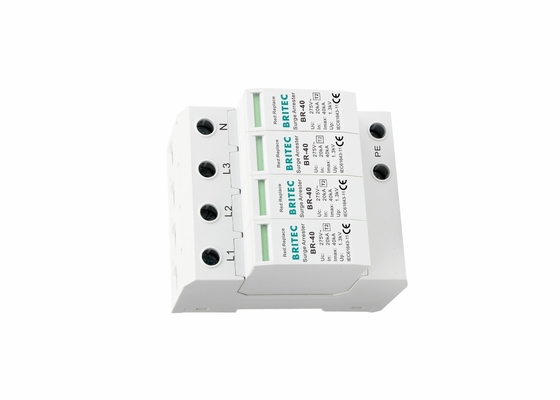

UL94-V0 35mm Din Rail 40ka Type 2 Lightning Power Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/CB/TUV/ISO9001
Model Number:	BR-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Surge Protection Device	Standard:	IEC/EN 61643-11
Model:	AC SPD	Pole:	4P
In:	20kA	Imax:	40kA
TA:	≤25ns	Material:	Thermal Plastic UL94-V0
Mounting On:	35mm Din Rail	Tu:	-40℃...+80℃
High Light:	35mm power surge arrester , 35mm lightning surge arrester , UL94-V0 type 2 surge arrester

Power Surge Voltage Protector 40ka Lightning Surge Arrester China Suppliers

Power Surge Voltage Protector 40ka Lightning Surge Arrester Description:

• Britec new SPD’s provides solutions suitable for all types of installations and all risk levels.

• Extremely low voltage protection level

• For protection against transient overvoltage to be effective, the position of the SPD in the installation and the type of SPD must be appropriate for the level of risk.

• Green window will change to red when fault occurs

• Britec’s range of type 2 (T2) SPDs meets all the requirements of low voltage installations.

• Also provide remote alarm terminal

Power Surge Voltage Protector 40ka Lightning Surge Arrester Product Details:

	BR150 40 4P	BR275 40 4P	BR320 40 4P	BR385 40 4P	BR440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8401	B8403	B8405	B8407	B8409
Order Code (With remote signaling)	B8402	B8404	B8406	B8408	B8410

Technology characteristic:

UL94-V0 35mm Din Rail 40ka Type 2 Lightning Power Surge Arrester 0

Power Surge Voltage Protector 40ka Lightning Surge Arrester Feature:

• T2 Type.

• 8/20μs

• Removable plug-in module.

• 4-poles lightning current arrester

• 40kA protection

• For using high-performance MOV and maximum

Power Surge Voltage Protector 40ka Lightning Surge Arrester Applicable range:

The Class C series of over-voltage surge protective devices has been developed to protect against the effects of indirect lightning discharges and induced voltages and is intended to provide protection in zones 1 2 per IEC 62305.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.

• In areas where storms are frequent, it is strongly recommended to install additional protection systems.

Certificate:

Company profile:

Wenzhou Britec Electric Co., Ltd. founded in 2003, has been committed to the field of lightning protection, the company is located in Yueqing, Zhejiang. The company is committed to the development and application of lightning protection. The company has gathered a group of experienced industry elites and marketing management personnel. They have accumulated more than ten years of industry experience, mastered exquisite product development technology and practical application experience, and can provide targeted scientific industry solutions.

UL94-V0 35mm Din Rail 40ka Type 2 Lightning Power Surge Arrester 2

Production flow:

UL94-V0 35mm Din Rail 40ka Type 2 Lightning Power Surge Arrester 3

Laboratory equipment:

Shipping:

FAQ:

1 How long is your products warranty ?

A: The warranty period of our products is 2 years.

2 How about inspection?

A: We have the whole inspection system from raw material to end products.

3 What do you have for certificate?

A: Our products are passed through CE, TUV, CB standarded.

4 What is payment terms?

A: T.T, Paypal and L/C is acceptable.

5 What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement. We also have the sales team to offer good service from pre-sale to after-sale.

6 How to become the agents for Britec?

A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
