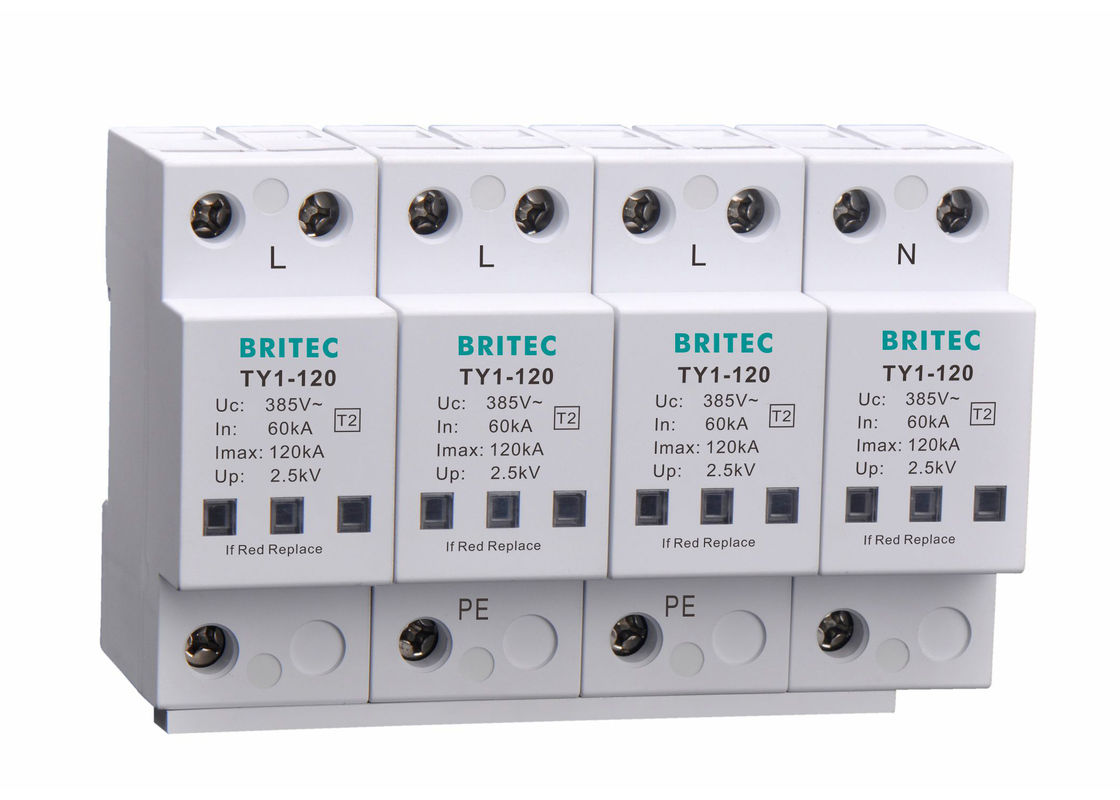

3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector

3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector

  • 3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector
  • 3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector
3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: TY1-120 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Device Type: Ac Surge Protector
Material: Plastic Pole Number: 4P
UC: 385V Imax: 120kA
Brand Name: Britec Degree Of Protection: IP20
Tu: -40℃-80℃ Delivery Time: Shipped In 20 Days After Payment
Highlight:

385V Type 2 Surge Protection Device

,

120ka Type 2 Surge Protection Device

,

120ka electrical surge protection devices

3 Phase 120ka Lightning Protector 385V AC Power Surge Arrester SPD TVSS



3 Phase 120ka Lightning Protector Product Features:



1: Selection of high-quality varistors, stable and reliable performance
2: Low residual voltage, free of leakage current
3: High lightning current capability, ns response speed
4: 120kA maximum surge current
5: Built-in overheat short-circuit device
6: Exquisite process, can work under the hostile environment for a long time, like acid, alkali, dust, salt fog, wet, etc.
7: Failure detection indication
8: Optional remote signaling interface.
9: 35mm rail mounting, standard modular design.
10: Energy saving, environmental protection, easy installation, no special maintenance



3 Phase 120ka Lightning Protector Technology characteristic:



Specification TY1-120 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage         Uc 385V
Max. discharge current (8/20µs)                Imax 120kA
Norminal discharge current (8/20µs)            In 60kA
Voltage protection level                               Up ≤2.5kV
Response time                                             tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Max. backup fuse 315A gG
Operating temperature range                      Tu -40℃—80℃
Cross-section area (Min.) 6mm2
Cross-section area (Max.) 35mm2
Enclosure material Thermal plastic UL94-V0



3 Phase 120ka Lightning Protector Application:



3 phase lightning protector 385V spd tvss 120ka with high lightning current capacity is suitable for the Class 2 lightning protection of the power system.
Protection of C class AC Power System
It is widely used in mobile communication base stations, Microwave Communications Bureau/Station, Telecommunications room, Industrial mining, civil aviation, Financial, Securities and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets. Switch box and other various equipment that is important and vulnerable to lightning strikes
Protection of power distribution system



Product standard:

1) EN60950:Safety of information technology equipment, including electrical business equipment
2) GB18802.1 low-voltage distribution system SP: performance demand and test method;
3) IEC61643-1:1998 Surge Protective devices connected to Low-voltage power
4) YD/T 1235.1 Communication Station low-voltage power system SPD technical requirement;
5) YD/T 1235.2 Communication Station low-voltage power system SPD test method;
6) Distribution system.Part1:Performance requirements and testing methods



Company information:



Wenzhou Britec Electric is specialized in manufacturing SPDs. We were established in 2003, located in Yueqing, Zhejiang, China. Our main products include AC surge arrester, DC surge protector, data surge protection device etc.



3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector 0



Shipping:



3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector 1



Our service:



• Quick Response, we will reply your inquiry within 24 hours.

• Trial order acceptable.

• Supporting OEM/ODM, customzied as per customer's need.

• Delivery Punctually.

• QC SYSTEM, we have perfect and strict quality control team, ensure every product is 100% qualified.

• Perfect After-sales, any quality problem will be solve within 24 hours to ensure satisfy every customer.



Our certificate:



3 Phase 120ka 385V Electrical Type 2 Surge Protection Device AC Surge Protector 2



FAQ:



Q1: Are you a factory or a trade company?

  A: We are the factory.



Q2: Where are your products distributed?

  A: Our products are distributed all over the world, Main market are Europe, South America, the United Arab Emirates, Africa and so on.



Q3: Can I have a sample?

  A: Yes, but according to our company's policy, we don't provided free samples, while you should pay the sample cost and freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.



Q4: Which port is the nearest from you?

  A: Ningbo port or Shanghai port.



Q5: What's your lead time?

  A: Sample lead time: 10 working days. Mass production: usually 20days. For big orders, honestly, it depends on the order quantity and designs.



Q6: When can I get the price?

  A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.



Q7: Can you do the design for us?

  A: Yes, we have a professional team having rich experience in design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork.



Q8: OEM & ODM are accepted or not?

  A: OEM&ODM are welcome.
