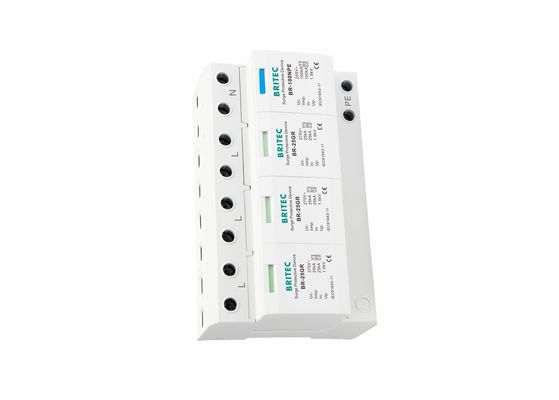

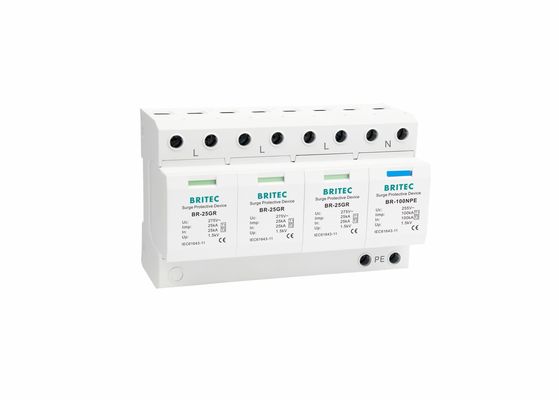

House Arrester TT 385V BR-25GR 3+1 Electrical Surge Protector

House Arrester TT 385V BR-25GR 3+1 Electrical Surge Protector

  • House Arrester TT 385V  BR-25GR 3+1 Electrical Surge Protector
  • House Arrester TT 385V  BR-25GR 3+1 Electrical Surge Protector
House Arrester TT 385V  BR-25GR 3+1 Electrical Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-25GR 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protector Type: Low-voltage
Uc: 385V Iimp: 25kA
Pole Number: 3P+NPE Enclosure: Thermalplastic UL94-VO
Tu: -40℃-80℃ Material: Plastic
Protection: IP20 Certificate: TUV/CE/ROHS/ISO9001 Approved Standard
High Light:

BR-25GR 3+1 electrical surge protector


BR-25GR 3+1 lightning surge protector


385V electrical surge protector

3P+NPE Surge Protector 25KA 385V Low-voltage House Protective Arrester


Low-voltage House Protective Arrester Product introduction:
Surge protector is the lightning protection measures adopted by Wenzhou Britec Electric Co., Ltd. for the electrical system. It is widely used in home, third industry and industrial fields to protect sensitive lines and protect the surge of lightning and direct lightning or other instantaneous overvoltage.


Low-voltage House Protective Arrester Technology characteristic:

Specification BR-25GR 3+1
Item name  Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to EN61643-11 Class I
Max continuous 0perating a.c. voltage                      Uc 385V/255V
Lightning impulse current (10/350µs)                      limp 25kA/50kA
Norminal discharge current (8/20µs)                          In 25kA/50kA
Voltage protection level                                             Up 1.8kV
Follow current extinguishing capability a.c.                Ifi 25kA rms

Max. backup fuse

315A gG

Response time                                                           tA


For mounting on            35mm Din rail
Degree of protection IP20
Operating temperature range                                    Tu -40 ℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²

Enclosure material

Thermal plastic UL94-V0




BR25R 3+1 1+1.jpg

Low-voltage House Protective Arrester Structure and Principle:
SPD is a port, shocking protection, and indoor-mounted installation, voltage-limited. SPD hold disconnector inside, when SPD breakdown failure by overheating, the disconnector can remove from the power grid automatically, and show indication signal. It display red when it breakdown and disconnect. 3P+NPE SPD consist of 3P SPD+NPE zero ground protection module, apply to TN-S, TT and other power supply system.
Low-voltage House Protective Arrester Working principle of product:
The lightning arrester can effectively protect the power equipment. Once the abnormal voltage appears, the lightning arrester will play a protective role. When the protected device is running under normal working voltage, the arrester will not work, and it will be regarded as a circuit for the ground.
Once the high voltage is present and the insulation of the protected equipment is endangered, the lightning arrester acts immediately and leads the high voltage impact current to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the electrical equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so that the system can be supplied normally.
The main function of the arrester is to reduce the voltage value of the protected equipment by the action of parallel discharge gap or nonlinear resistance, so as to protect the power equipment.
Low-voltage House Protective Arrester Product features:
1. Core components are strictly screened, stable performance and reliable operation.
2. Using the latest arc extinguishing technology to avoid fire completely
3. Module is designed and installed conveniently.
Notice of product:
1. Grounding lines should be short, thick and straight, so as to reduce the influence of distributed inductors on the ability of lightning electromagnetic pulse.
2. It should match the working voltage of the protected equipment. Please install according to the installation sketch.




House Arrester TT 385V  BR-25GR 3+1 Electrical Surge Protector 1


Company information:


Wenzhou Britec Electric Co., LTD. is located in Yueqing. We provide all kinds of SPDs including: AC power supply surge arrester, DC surge protector, data surge protective device and LED lightning protection. Our firm also brings you considerable expertise in the areas of product design, engineering, assembly, packaging and quality assurance. For many of our customers, we are their sole manufacturing resource, we are in this field for over 17 years. Warmly welcome customers from home and abroad to trade and negotiate with us for the mutual benefits and prosperity.


House Arrester TT 385V  BR-25GR 3+1 Electrical Surge Protector 2


Production process:


House Arrester TT 385V  BR-25GR 3+1 Electrical Surge Protector 3


Laboratory equipment:


House Arrester TT 385V  BR-25GR 3+1 Electrical Surge Protector 4




Q1: Are you a lightning surge protectors factory or trading company?

A1: We are lightning surge protectors manufacturer.


Q2: Warranty and return:

A2: Our products have been 100% tested before ship out. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.


Q3: Is sample available and free?

A3: Sample is avaible, but the sample cost should be pay by you. The cost of sample will be refund after further order.


Q4: How can I get some lightning surge protectors samples?

A4: Please contact our staff and leave detailed contact information, we promise to keep your information confidential.


Q5: Do you accept customized order?

A5: Yes, we do.
