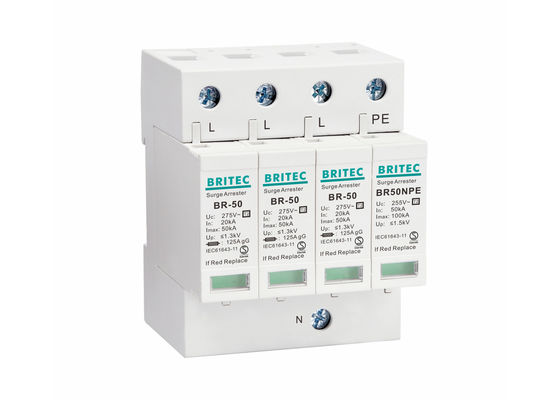

Class II AC T2 Class C BR-50 Type 2 Spd 50kA Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR275-50 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protection Device	Type:	Ac Surge Protector
Material:	Plastic	Pole Number:	3+1
Uc:	275V	Imax:	50kA
Brand Name:	Britec	Certificate:	TUV/CE/ROHS/ISO9001
Tu:	-40℃-80℃	Delivery Time:	Shipped In 20 Days After Payment
High Light:	BR-50 Type 2 Spd , 275V type 2 spd

Type 2 Class II AC Surge Protection Devices T2 Class C Surge Protective BR-50 Series

Class II AC T2 Class C BR-50 Type 2 Spd Features:

• Transient and power frequency overvoltage protection.

• The AC Surge Protective Devices T2 BR-50 line is a group of Class II Surges Protective Devices.

• Ability to discharge induced voltage surges (8/20 μs).

• High Discharge Current Imax: 50 kA.

• Compact Size, integrated Type-2 protection in small module width, ideal in all reduced-size plants.

• Better Protection, voltage protection level 1.3 kV.

Class II AC T2 Class C BR-50 Type 2 Spd Technology characteristic:

Specification	BR275-50 3+1
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 2
SPD dassification according to IEC61643-11	Class II
Max continuous 0perating a.c. voltage Uc	275V
Max. discharge current (8/20µs) Imax	50kA
Norminal discharge current (8/20µs) In	20kA
Voltage protection level Up	≤1.5kV
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enlcosure material	Thermal plastic UL94-V0

Dimension:

Class II AC T2 Class C BR-50 Type 2 Spd 50kA Surge Protection Device 0

Class II AC T2 Class C BR-50 Type 2 Spd Application:

• For use in AC power supply systems.

• Suitable for the second level of protection in supply distribution panels in which Type 1 protectors are installed, or for the first level of protection for applications not exposed to direct strikes and with no external lightning protection system.

• Protect against transient overvoltage caused by fast switching operations or indirect hits of lightning strokes (residuum effects).

Shipping:

Our service:

• Quick Response, we will reply your inquiry within 24 hours.

• Trial order acceptable.

• Supporting OEM/ODM, customzied as per customer's need.

• Delivery Punctually.

• QC SYSTEM, we have perfect and strict quality control team, ensure every product is 100% qualified.

• Perfect After-sales, any quality problem will be solve within 24 hours to ensure satisfy every customer.

Company information:

Wenzhou Britec Electric is specialized in manufacturing SPDs. We were established in 2003, located in Yueqing, Zhejiang, China. Our main products include AC surge arrester, DC surge protector, data surge protection device etc.

Class II AC T2 Class C BR-50 Type 2 Spd 50kA Surge Protection Device 2

FAQ:

Q1. Are you a manufacturer or a trading company?

A: Both, we are a more than 17 years professional manufacturer for SPDs, moreover, we have own trade company.

Q2. Can you customize and supply samples?

A: Yes, we support OEM/ODM service to our clients. You need to provide us some technical data such as dimension and drawing. And samples order is acceptable.

Q3. What's your packing?

A: Export standard carton.

Q4. How to pay?

A: T/T, Credit Card, Paypal etc.

Q5. Which service you can supply?

A: OEM & ODM; Good discount for large order; Reply you inquiry within 24 hours; After-sale service.
