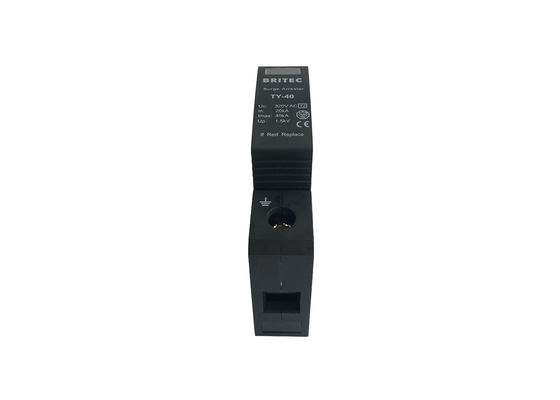

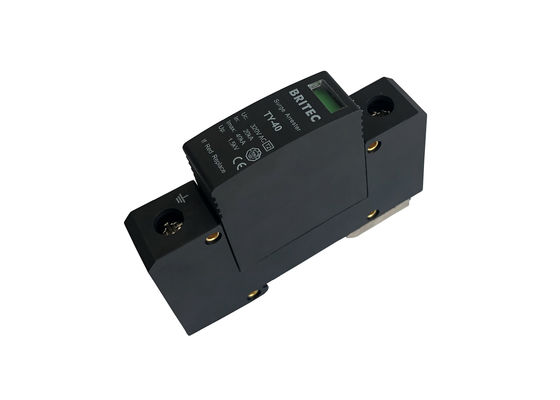

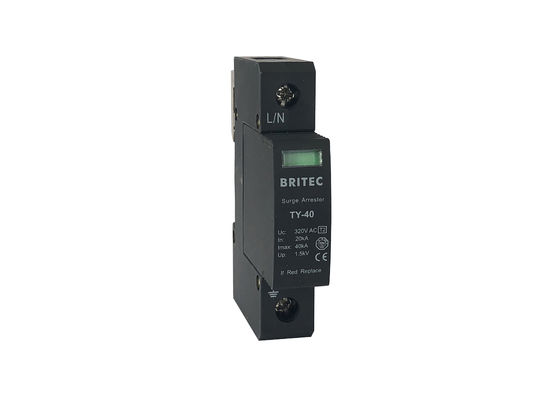

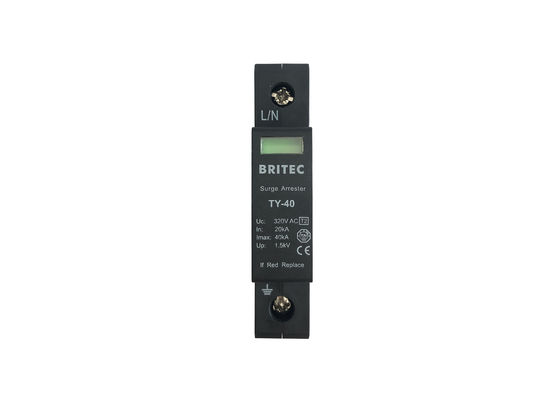

35 Millimeter Type 2 Surge Arrester Din Rail Surge Protector Type 2 - 1P

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR TY-40B 1P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	150V / 275V / 320V / 385V / 440V
In:	20kA	Imax:	40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Tu:	-40℃...+80℃
Class:	Type 2	Item:	Surge Arrester
High Light:	lightning surge arrester , 2 pole surge protector

35 Millimeter Din Rail Surge Protector Type 2 - 1P 40kA Surge Protection Device

35 Millimeter Type 2 Surge Arrester Feature:

• Protection class: Type 2, Class II.

• Pole number: 1P.

• Max. continuous operating voltage (Uc) (AC): 150V / 275V / 320V / 385V / 440V.

• Nominal discharge current (8/20μs) (In): 20kA.

• Max. discharge current (8/20μs) (Imax): 40kA.

• Width of one pole: 18mm.

• Remote contacts: available.

• It consists of a high performance varistor with thermal disconnection tripping device.

35 Millimeter Type 2 Surge Arrester Product Details:

	TY150 40B 1P	TY275 40B 1P	TY320 40B 1P	TY385 40B 1P	TY440 40B 1P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Dimension:

35 Millimeter Type 2 Surge Arrester Din Rail Surge Protector Type 2 - 1P 0

35 Millimeter Type 2 Surge Arrester Application:

• It is for protecting low-voltage consumer’s installations against indirect lightning discharges and is to be installed in LEPM zone:LPZ1 - LPZ2 as per IEC 62305.

• Provide protection to electrical/electronic equipment against a brief overvoltage spike or disturbance on a power/signal waveform called a surge.

• Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.

35 Millimeter Type 2 Surge Arrester Advantage:

• Hold patent for the design of casing.

• The new technology, high-energy.

• Window color shows working condition.

• OEM & ODM are acceptable.

• We can produce according to customer's requirements.

• The plug-in module / base design facilitate replacement of a failed module without the need to remove system wiring etc.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Installation:

• The line of surge arresters includes a full range of compact protectors for installation on DIN rail

• When the fault indication window turns from green to red please replace the cartridge as soon as possible

• After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.

Certification:

Company Profile:

Wenzhou Britec Electric Co., Ltd, is specialized in making surge protection device. Our products mainly includes AC power surge protector series, DC surge protective series, data lightning arrester series, LED lightning protection series. Our products are popular in China and also sold to Europe and Southeast Asia, the Middle East, South America and other countries with high appreciation. Britec focuses on improving technical strength to meet special need by our customers. Britec also attaches a great importance to providing professional knowledge and rich culture for the staff, with it's continuous investment in technology and people, it has possesses a number of senior technical and very professional service team. We pay much attention to the quality of the production, from raw material suppliers estimation to the final finished product checking, it has established strict quality assurance system to promise high quality of the products.

35 Millimeter Type 2 Surge Arrester Din Rail Surge Protector Type 2 - 1P 2

Delivery:

Lead time is mostly depends on order quantity. Usually, 20 days and goods in stock can be sent out within 7 working days after the payment reached, by UPS / DHL / TNT / EMS / FedEX or other way you preferred.

35 Millimeter Type 2 Surge Arrester Din Rail Surge Protector Type 2 - 1P 3

FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: If we have enough stock for delivering within 7 days, if not have stock, mass production is around 20 days.

Q3: What's your after-sales service?
A: We provide technical support for you, also can help you to solve your customers' problem.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by TNT, DHL, UPS, FedEx or EMS. It usually takes 7 days to arrive. Airline and sea shipping also optional.

Q5. Is it OK to print my logo on your product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
