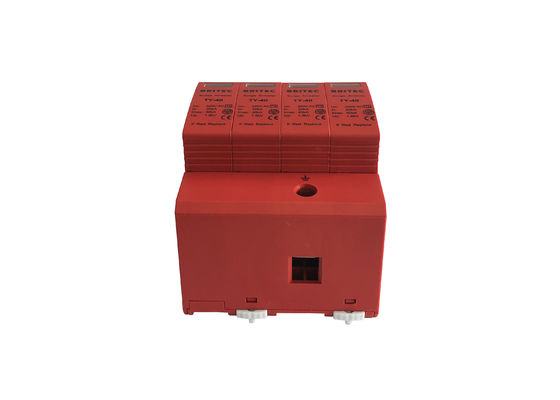

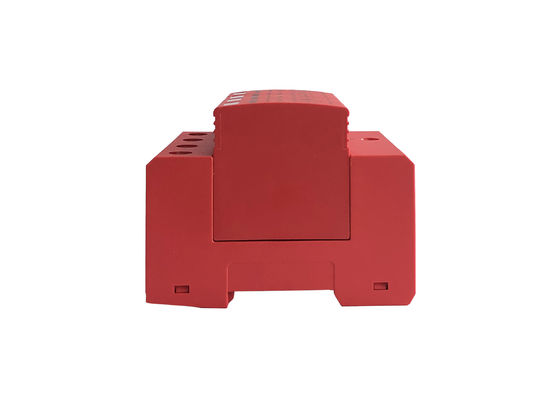

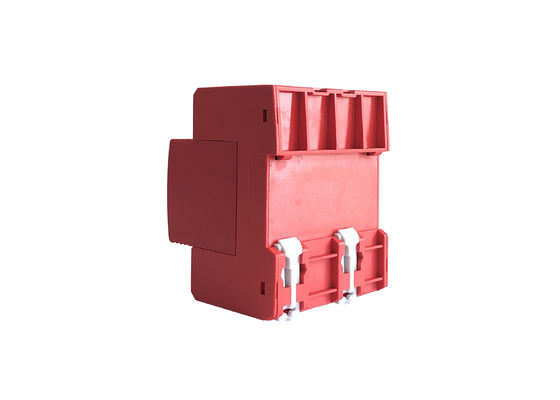

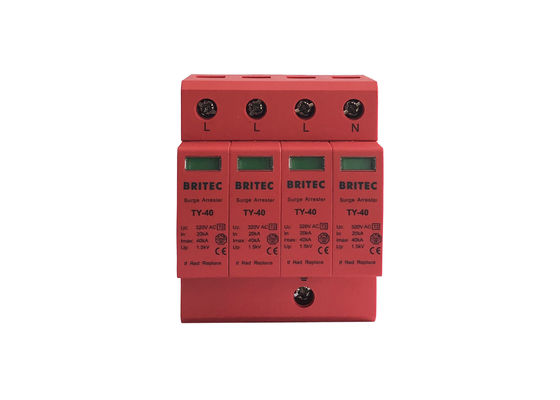

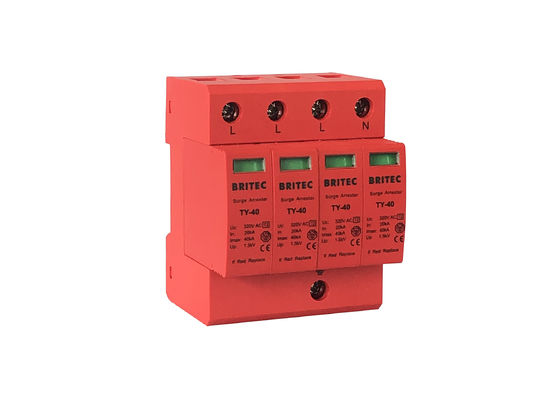

BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor

BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor

  • BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor
  • BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor
  • BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor
  • BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor
  • BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor
BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: TY-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Brand: Britec Item No.: TY-40
High Light:

lightning surge arrester

,

type 2 surge protector



BRITEC TY-40 320V Type 2 Surge Arrestor 40kA Pluggable Surge Protection Device



BRITEC TY -40 Type 2 Surge Protection Device Feature:



• Protection class:Type 2, Class II.

• Pole number:4P.
• Max. discharge current:40kA(8/20μs).
• Enclosure material:Thermal plastic UL94-V0.
• Using the L-L-L-N (4 MOV) protection mode.
• Remote alarm mode can be selectable.
• Patented fast tripping mechanism.
• Complies with EN 61643-11 on arresters connected to low voltage distribution systems.



BRITEC TY -40 Type 2 Surge Protection Device Product Details:



  TY150 40 4P TY275 40 4P TY320 40 4P TY385 40 4P TY440 40 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)              Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                            tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:



BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor 0



BRITEC TY -40 Type 2 Surge Protection Device Application:



• Protecting low-voltage consumers' installations against indirect lightning discharges.

• Suitable for 150V / 275V / 320V / 385V / 440V voltage power supply and distribution systems.
• Suit for applied power supply systems, used to guard sensitive equipments from voltage spike.
• Used to protect electrical & electronic devices against switching surges generated due to switch off of heavy inductive loads like transformers, heavy motors, etc.
• Designed for installations where direct lightning strike risk is reduced (without LPS or medium risk).
• Also used in addition to the SPD type 1 in order to limit the operating voltage arresters.



BRITEC TY -40 Type 2 Surge Protection Device Advantage:



• Anti shock, flame retardant plastic are adopted.

• Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring.
• High performance varistor with thermal disconnection tripping device.
• IP20 protection.
• Incorporate technology-based high energy varistors.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Installation:



• Installed between the power supply network and equipment for relief, suppression and reduce the over current and overvoltage resulting from induction stroke or internal power grid system.

• Directly installed in the standard 35mm rail profiles.
• In areas where storms are frequent, it is strongly recommended to install additional protection systems



Our factory:



BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor 1



Certificate:



BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor 2



Shipping:



BRITEC TY -40 Type 2 Surge Protection Device 320V Type 2 Surge Arrestor 3



FAQ:



Q1: Which kinds SPD you can supply?

  A: We can supply all kinds of surge protection device, including AC power surge protector, PV(solar) surge protective device, data surge arrester, LED lightning arrestor and so on.



Q2: How we can choose the suitable products for us?

  A: Please tell us your detail requirements, and we will give you the best advice for your choice.



Q3: Why your goods is very cheap, quality is guaranteed?

  A: Because we have our own factory, quality control is very strict, the goods direct sales and wholesale in the online, so our quality and price are very competitive.



Q4: I want to order different items, wholesale can mix together?

  A: Yes, sure. And we also support OEM&ODM.
