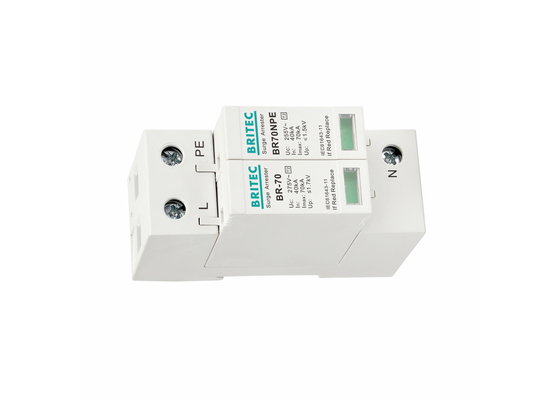

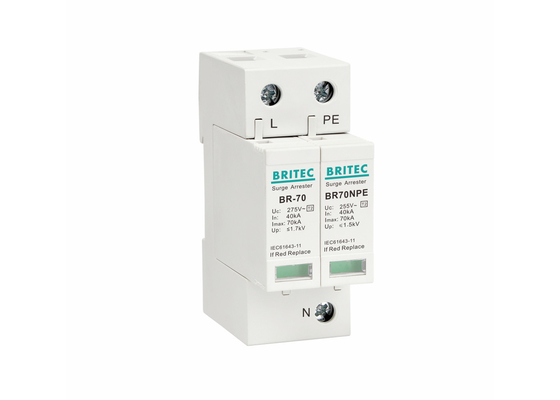

Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester

Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester
Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester

Large Image :  Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-70 1P+NPE
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now

Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester

Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V
In: 40kA Imax: 70kA
Material: Thermal Plastic UL94-V0 TA: ≤25ns / ≤100ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Enclosure Material: Thermal Plastic Class: Type 2
Keyword: Lightning Protection
Highlight:

2 pole surge protector

,

type 2 surge protector



Thermal Plastic Type 2 Electrical Protection Device 70kA 1P+NPE AC Single Phase SPD Surge Arrester

Thermal Plastic Type 2 Surge Protection Device Feature:


• Type 2 Surge Protector
• Discharge currents : In : 30 kA / Imax : 70 kA
• Pluggable module by phase
• Remote Signalling in option
• IEC 61643-11 and EN 61643-11 compliance
• This product has passed the standard test of 8/20us (level II test).
• BR-70 series are designed to meet all your surge protection needs for any low voltage installation


Thermal Plastic Type 2 Surge Protection Device Product Details:



  BR150 70 1P+NPE BR275 70 1P+NPE BR320 70 1P+NPE BR385 70 1P+NPE
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II
Max. continuous operating a.c. voltage          (L-N)Uc 150V 275V 320V 385V
Max. continuous operating a.c. voltage       (N-PE)Uc 255V 255V 255V 255V
Nominal discharge current (8/20us)                        In 40kA 40kA 40kA 40kA
Max. discharge current(8/20μs)                         Imax 70kA 70kA 70kA 70kA
Voltage protection level                                     (L-N)Up ≤1.0kV ≤1.7kV ≤2.0kV ≤2.3kV
Voltage protection level                                   (N-PE)Up ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV
Follow current extinguishing capability (N-PE) a.c. Ifi 100Arms 100Arms 100Arms 100Arms
Max. backup fuse 200A gG 200A gG 200A gG 200A gG
Response time                                        (L-N/N-PE)tA ≤25ns/≤100ns
Operating temperature range                                Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication  green / red   green / red   green / red   green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20
Order Code B8360 B8362 B8364 B8366
Order Code (With remote signaling) B8361 B8363 B8365 B8367


Dimension:

Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester 0

Thermal Plastic Type 2 Surge Protection Device Application:


• Protection of AC Power System
• Protection of power distribution system
• Protection of terminal devices
• Protect for sensitive electronic equipment, telecom centers, automatic control centers, intelligent buildings, industrial enterprises, and medical institutes.
• This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high, for example: buildings equipped with lightning rods.


Thermal Plastic Type 2 Surge Protection Device Advantage:


• Eeasy to install in any standardized distribution pane or control cabinets.
• Equipped with a thermal disconnection device and provide real-time fault indicators thus allowing complete operational safety.
• The design of BR-70 is based on the use of a pluggable module that plugs into a matching receptacle. This makes replacement, and checking very easy without impairing the protection function.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment



Product process:



Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester 1



Test instrument:



Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester 2



Quality assurance:



Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester 3



Company profile:



Wenzhou Britec Electric Co.,Ltd. is founded in 2003, which is a professional SPD manufacturer. And through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.



Thermal Plastic Type 2 Surge Protection Device 70kA 1P + NPE AC SPD Surge Arrester 4


Why need surge arrester?


• Surge arrester are designed to interrupt and divert transient surge events to ground. Surge events are responsible for a big amount of damage annually and can be caused by electrical storms or bank switching on electrical distribution lines. These events can effect sensitive electrical equipment, telephone networks, and computer networks.
• SPDs designed to protect sensitive equipment, minimize preventative maintenance, and prevent unscheduled equipment downtime.
