| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-70 1P |
| Minimum Order Quantity: | 200 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Test Standards: | IEC 61643-11 / EN61643-11 | Uc: | 150V / 275V / 320V / 385V |
|---|---|---|---|
| In: | 40kA | Imax: | 70kA |
| Material: | Thermal Plastic UL94-V0 | TA: | ≤25ns |
| Mounting On: | 35mm Din Rail | Tu: | -40℃...+80℃ |
| Module: | Pluggable | Poles No.: | Single Pole |
| High Light: | 2 pole surge protector,type 2 surge protector |
||

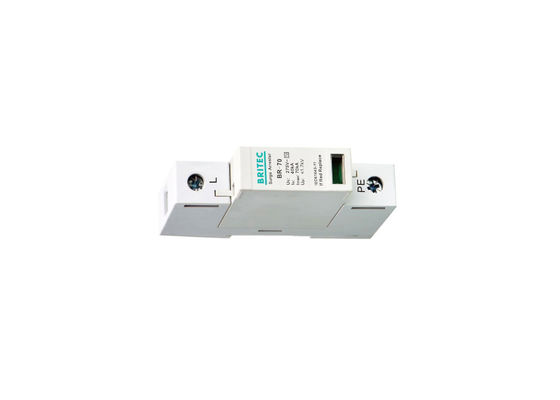

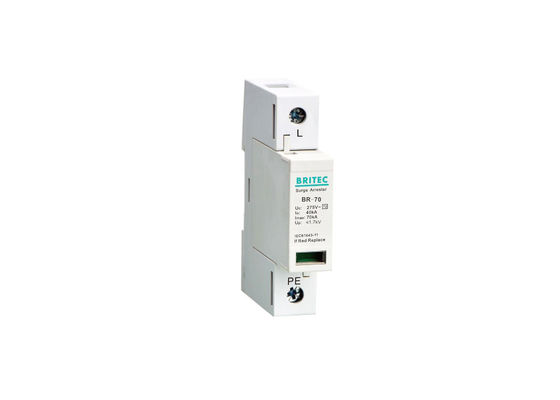

Pluggable Module By Phase Type 2 AC Surge Protector 40kA~70kA Single Pole Surge Arrester
Pluggable Module Single Phase Type 2 Surge Protection Device Feature:
•This product is for low-voltage power supply 150V / 275V / 320V / 385V, Imax 70kA, 1pole.
Pluggable Module Single Phase Type 2 Surge Protection Device Product Details:
| BR150 70 1P | BR275 70 1P | BR320 70 1P | BR385 70 1P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 40kA | 40kA | 40kA | 40kA |
| Max. discharge current(8/20μs) Imax | 70kA | 70kA | 70kA | 70kA |
| Voltage protection level Up | ≤1.0kV | ≤1.7kV | ≤2.0kV | ≤2.3kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.9kV | ≤1.1kV | ≤1.3kV |
| Max. backup fuse | 200A gG | 200A gG | 200A gG | 200A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermal plastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | IP20 |
| Order Code | B8284 | B8286 | B8288 | B8290 |
| Order Code (With remote signaling) | B8285 | B8287 | B8289 | B8291 |
Dimension:
Pluggable Module Single Phase Type 2 Surge Protection Device Application:
Pluggable Module Single Phase Type 2 Surge Protection Device Advantage:
Our Services:
Company Introduction:
Wenzhou Britec Electric Co.,Ltd, based in Yueqing, Zhejiang, specialize in nearly all kinds of SPDs like AC surge protection, DC power surge protector, Data surge protective device, LED surge arrester etc. We cooperated with thousands of customers all over the world, most of them came from Europe and Asia. After years of development, we got exellent reputation.
Installation:
For the voltage surge protector to perform it’s function as well as possible, it must be installed:
