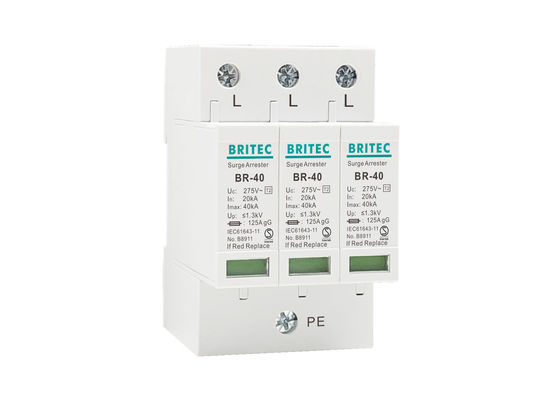

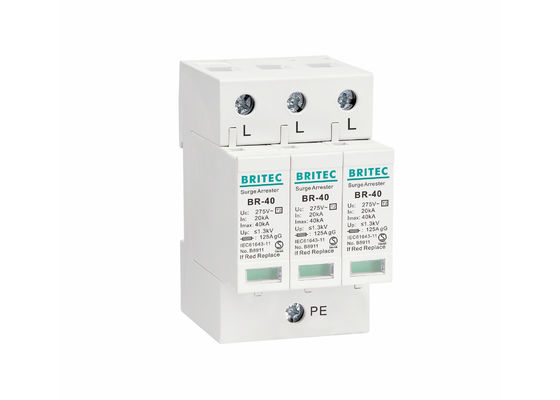

Type 2 Surge Protection Device SPD 20~40KA Lightning Arrester with 35mm Din Rail Mounting

Type 2 Surge Protection Device SPD 20~40KA Lightning Arrester with 35mm Din Rail Mounting
Type 2 Surge Protection Device SPD 20~40KA Lightning Arrester with 35mm Din Rail Mounting Type 2 Surge Protection Device SPD 20~40KA Lightning Arrester with 35mm Din Rail Mounting

Large Image :  Type 2 Surge Protection Device SPD 20~40KA Lightning Arrester with 35mm Din Rail Mounting

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE/TUV/CB/S
Model Number: BR-40 3P
Document: BR-40 3P Old version.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month
Contact Now

Type 2 Surge Protection Device SPD 20~40KA Lightning Arrester with 35mm Din Rail Mounting

Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Material: Thermoplastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Class: Type 2 Protection Level: IP20
Keyword: Lightning Protection
Highlight:

2 pole surge protector

,

type 2 surge protector

Low Voltage SPD 3P Type 2 Surge Protection Device
AC Lightning Arrester 20~40KA Standard 35mm
Product Features
  • Model: BR-40 3P
  • Reaction time of less than 25 ns
  • Color of visible window shows operating status: normal green, red fault
  • Remote monitoring switch signal capability
  • Continuous operating voltage: 150 / 275 / 320 / 385 / 440 V
  • IEC61643-11:2012 confirmed
Technical Specifications
Parameter BR-40 150 3P BR-40 275 3P BR-40 320 3P BR-40 385 3P BR-40 440 3P
SPD classification (EN61643-11) Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification (IEC61643-11) Class II Class II Class II Class II Class II
Max. continuous operating voltage Uc 150V 275V 320V 385V 440V
Nominal discharge current In (8/20μs) 20kA 20kA 20kA 20kA 20kA
Max. discharge current Imax (8/20μs) 40kA 40kA 40kA 40kA 40kA
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level Up (5kA) ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red green / red
Cross-section area (Min.) 4mm² 4mm² 4mm² 4mm² 4mm²
Cross-section area (Max.) 35mm² 35mm² 35mm² 35mm² 35mm²
Order Code B8301 B8303 B8305 B8307 B8309
Order Code (With remote signaling) B8302 B8304 B8306 B8308 B8310
Additional Specifications:
For mounting on: 35mm Din rail
Enclosure material: Thermoplastic UL94-V0
Degree of protection: IP20
Product Dimensions
Low Voltage SPD 3P Type 2 Surge Protection Device dimensional drawing and specifications
Applications
  • Suitable for TN-C systems
  • Protection of electrical installations and connected devices against destructive overvoltage surges
  • Surge protection for home appliances, commercial building equipment, and industrial equipment
  • Complete and effective protection against surges in low-voltage networks
  • Ideal for low-voltage AC power distribution systems up to 380V
  • Protection from direct and indirect lighting impulses and transient over voltages
Product Advantages
  • Plug modular design for easy maintenance
  • Low residual voltage
  • Quick response time
  • In-house laboratory testing
  • Fast delivery
Our Services
  • 22 years as global leading professional manufacturer of electrical surge arresters
  • All products well packed before shipping
  • Standard packaging with custom options available
  • Faster delivery times
  • Individually tested prior to shipment
Company Introduction
Wenzhou Britec Electric Co., Ltd. was established in 2003 and is a professional surge protective devices (SPD) manufacturer with many years of experience. We provide quality products, competitive pricing, prompt delivery, and excellent service, looking forward to greater cooperation with overseas trade based on mutual benefits.
Wenzhou Britec Electric Co., Ltd. facility and manufacturing overview
Certifications
Product certifications and quality standards for Low Voltage SPD 3P Type 2 Surge Protection Device
Shipping Information
Shipping and logistics information for Low Voltage SPD 3P Type 2 Surge Protection Device
Installation Guidelines
  • Full range of compact protectors for installation on DIN rail
  • No adjustment required after installation
  • Automatic protection of power network after proper installation
  • Replace invalid elements promptly in case of failure
