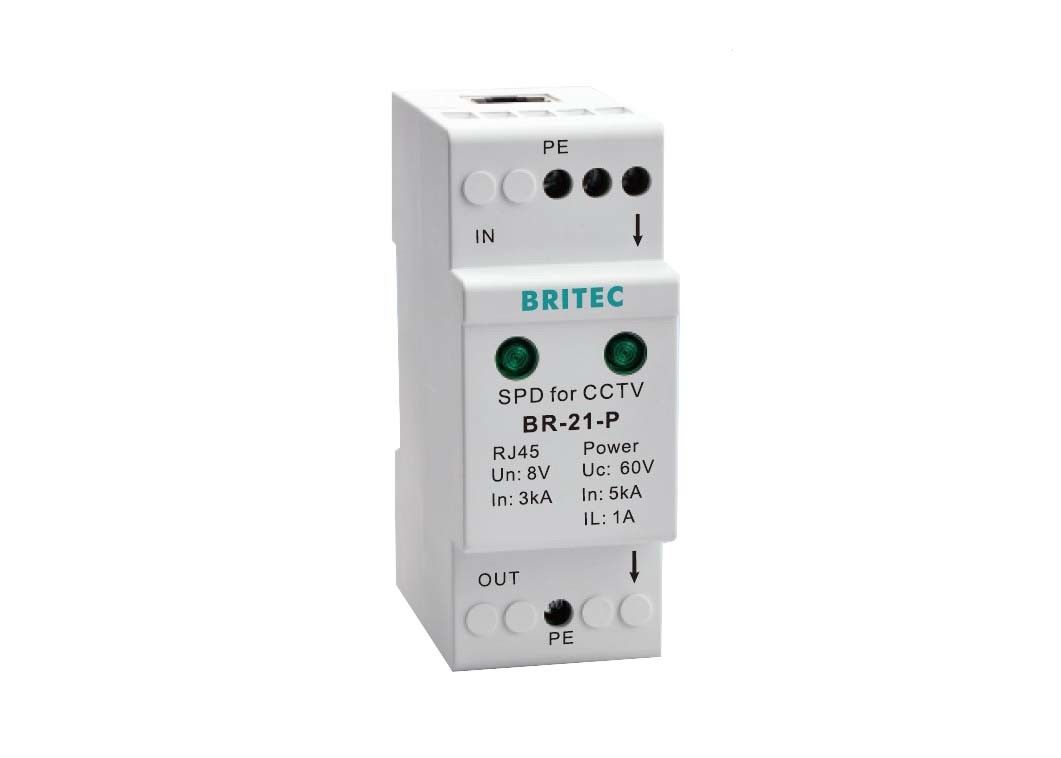

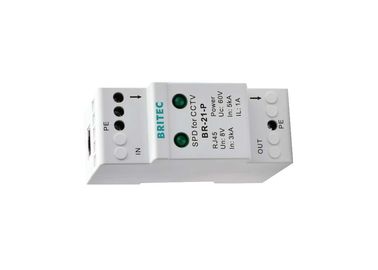

5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic

5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic

  • 5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic
  • 5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic
5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-CCTV-21P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 Uc: 6V
In: 5kA Material: Thermal Plastic
TA: ≤100ns Connection: RJ45/Terminal Block
Bandwidth: 30Mbps Insertion Loss: ≤0.3dB
Imax: 10kA Tu: -40℃...+80℃
High Light:

spd surge protector

,

commercial surge protection devices



5kA Signal Line Protectors CCTV SPD Surge Protection Devices for CCTV System Thermal Plastic



Feature:



  • • High-End Spec Surge Protection Devices
    • Operating temperature:-40℃~+80℃
    • Line to line, line to ground protection
    • Rapid response to the over-voltage(response time <1ns)
    • Designed according to IEC 61643-21 standards which defines the characteristic and test for SPD
      connected to telecommunication and signaling network.
    • It's a new generation of CCTV signal protection products



Product Details:



  CCTV-21P-48 CCTV-21P-230
Test standards IEC 61643-21 IEC 61643-21
Max. continuous operating d.c. voltage               (RJ45)Uc 6V 6V
Max. continuous operating a.c. voltage               (RJ45)Uc 4V 4V
Max. continuous operating a.c. voltage             (power)Uc 60V 275V
Nominal current                                                             IL 0.5A 0.5A
C2 Nominal discharge current (8/20us)                         In 5kA 5kA
C2 Max. discharge current(8/20μs)                           Imax 10kA 10kA
Voltage protection level [line-line/shield]             (RJ45)Up   ≤30V ≤30V
Voltage protection level [line/shield-PG]             (RJ45)Up ≤500V ≤500V
Voltage protection level                                     (power)Up ≤200V ≤1.2kV
Response time [line-line/shield]                                    tA ≤1ns ≤1ns
Response time [line/shield-PG]                                     tA ≤100ns ≤100ns
Operating temperature range                                      Tu -40℃…+80℃ -40℃…+80℃
Connection input/output                                RJ45/Power   RJ45/Terminal block     RJ45/Terminal block
Bandwidth 30Mbps 30Mbps
Insertion loss ≤0.3dB ≤0.3dB
Enclosure material Thermal plastic Thermal plastic
Order Code D9052 D9053



Technology characteristic:



5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic 0



Application:



  • • SPDs for CCTV is mainly used for supervisory control system, preventing product from lightning
      strike and surge.
    • Protect the video equipment effectively and ensure the image can display normally5.Inhibit the
      overvoltage pulse issue fromthe transmission line on the camera effectively, Avoiding the video
      surveillance equipment damage due to overvoltage pulse.
    • Offer surge protection for almost any products application in power, instrumentations and controls,
      network and data lines, coax and etc.
    • For Radio Antennas, GPS Antennas, CATV, CCTV and Satellite TV.



Advantage:



  • • Lower Prices
    • Low Capacitance
    • High Discharge Current
    • Continuous and repeated protection in intense environment



Our Services:



  • • Professional manufacturer, 17 years global leading profession manufacture of electrical products
      surge arrester.
    • The majority of our products are CE-certified.
    • OEM/ODM available.
    • Standard packaging, and you can also tell us your own requirements on packaging.
    • Our factory production is strictly guided by ISO9001:2000 quality management system, thus
      ensuring the quality of our products is in accordance with related rules and regulations.
    • Faster delivery.
    • Individually Tested Prior to Shipment.



Factory:



5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic 1



Shipping:



5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic 2

Certificate:



5kA Signal Line Protectors CCTV SPD Surge Protection Devices For CCTV System Thermal Plastic 3



What is IEC 61643-21 standards?



  • • IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected
      to telecommunications and signalling networks; Performance requirements and testing methods.
    • The test categories for surge protective devices connected to telecommunications and signalling
      networks are defined in these standards.
