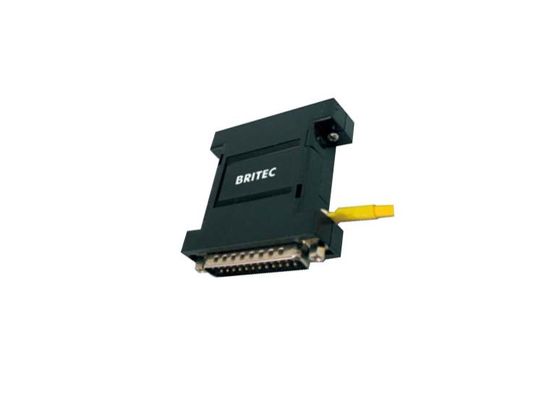

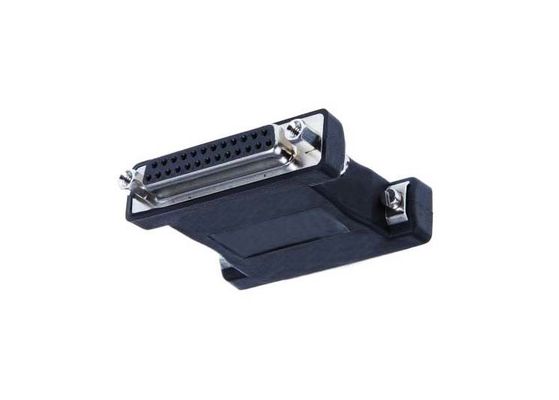

25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control

25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control
25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control 25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control

Large Image :  25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-DB25
Document: SPD for Data BR-DB.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now

25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control

Description
Type: D-sub Dataline Surge Protector Number Of Protected Poles: 25 Pin Connector
Network: RS232, RS485, 4-20mA Max Operating Voltage: 15VDC
Nominal Line Voltage: 12V Standards Compliance: IEC 61643-21 / EN 61643-21
In (line-SG): 5kA In (SG-PG): 10kA
Material: Aluminium Alloy Up [line-SG: 1
Highlight:

spd surge protector

,

commercial surge protection devices

12V Data Protection SPD For 25 PINS RS232 RS485 4-20MA Male To Female With 25 Way D Sub Connector
Data Protection SPD Feature:
  • "D-Sub" surge protectors
  • For Use With: D-Sub 25 plug/socket
  • For RS232, RS422, RS485 communication lines
  • All 25 lines are wired pin to pin and locking hardware is included
  • Fast and easy installation
  • Provides full range of lightning protection for D-SUB port data transfer
Data Protection SPD Product Details:
BR-DB25
Test standards IEC 61643-21
Nominal voltage Un 12V
Max.continuous operating d.c.voltage Uc 15V
C2 Nominal discharge current (8/20us) line-SG In 5kA
C2 Nominal discharge current(8/20μs) SG-PG In 10kA
Voltage protection level [line-SG] Up ≤40V
Voltage protection level [SG-PG] Up ≤500V
Response time [line-SG] tA ≤1ns
Response time [SG-PG] tA ≤100ns
Operating temperature range Tu -40℃…+80℃
Connection input/output D-Sub 25 plug/socket
Pinning line:2/3/4/5/6/8/20, SG:7
Bandwidth 10Mbps
Insertion loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20
Order Code D9072
Dimension:
25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control 0
Data Protection SPD Application:
  • Mainly used in electronic devices
  • Male to male (plugs) and female to female (sockets) 25-pin 'D' connector gender changers in moulded black PVC fully screened against RFI/EMI interference
  • Widely used in industrial control lightning protection, DB25 telecom, LAN and commercial and military fields
Data Protection SPD Advantage:
  • Compact product size
  • Easy to install
  • Simple integration into connection cables
Our Services:
  • Professional manufacturer with 21 years experience in electrical surge protection products
  • Prompt response: All inquiries answered within 24 hours
  • OEM/ODM services available
  • Custom packaging options available
  • All products meet IEC international standards
  • Fast delivery times
  • Each product individually tested before shipment
Data Protection SPD Installation and Maintenance:
  • Can be installed on LPZ1-LPZ2 interface and higher interfaces for complete D-SUB port lightning protection
  • Ground path should be as short as possible (≤1.5 meters)
  • Verify pin compatibility with protected equipment during installation
  • Regular maintenance checks recommended
  • Replace immediately if system transmission performance degrades or signals interrupt
Workshop:
25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control 1
Shipping:
25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control 2
Certificate:
25 PINS RS232 RS485 4-20MA Data Protection SPD with 15VDC for Industrial Control 3
