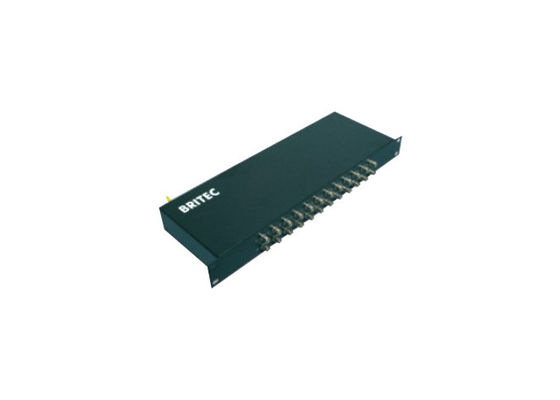

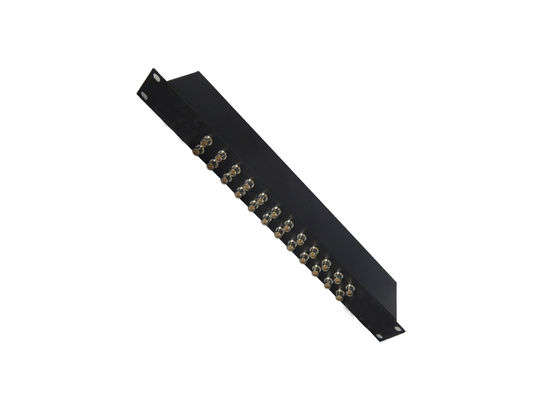

6V Low Voltage Arrester Cable Surge Coaxial Video Signal SPD 5kA BNC 24 Sockets

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-BNC-R

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-21	Un:	5V
Uc (DC):	6V	Material:	Aluminium Alloy
IL:	0.5A	Connection:	BNC 24 Sockets
Bandwidth:	10Mbps	Insertion Loss:	≤0.3dB
Uc (AC):	4V	Impedience:	50Ω
High Light:	spd surge protector , commercial surge protection devices

6V Low-Voltage Arrester Coaxial Surge Protection Device Coaxial Video Signal SPD 5kA BNC 24 Sockets

6V Low Voltage Arrester Cable Surge Coaxial Video Signal SPD Feature:

• IEC 61643-21

• Integrated multi-port

• Signal transmission superior performance, low insertion loss

• Multi-port mode

• Easily adaptable due to BNC sockets

• For installation in conformity with the lightning protection

• Multistage protection, flow capacity and fast response

• Residual voltage is low, excellent transmission performance

• BNC Surge Protective Device is designed according to the IEC standard

• It realized high efficient discharging lightning currents which caused by lightning current

6V Low Voltage Arrester Cable Surge Coaxial Video Signal SPD Product Details:

	BR-BNC-R
Test standards	IEC 61643-21
Nominal voltage Un	5V
Max.continuous operating d.c.voltage Uc	6V
Max.continuous operating a.c.voltage Uc	4V
Nominal current IL IL	0.5A
C2 Nominal discharge current (8/20us)line-shield In	5kA
C2 Nominal discharge current (8/20us)shield-PG In	10kA
Voltage protection level [line-shield] Up	≤30V
Voltage protection level [shield-PG] Up	≤500V
Response time [line-shield] tA	≤1ns
Response time [shield-PG] tA	≤100ns
Operating temperature range Tu	-40℃…+80℃
Connection input/output	BNC 24 sockets
Bandwidth	10Mbps
Insertion loss	≤0.3dB
Impedience	50Ω
Enclosure material	aluminium alloy
Degree of protection	IP20
Order Code	D9021

Dimension:

6V Low Voltage Arrester Cable Surge Coaxial Video Signal SPD Application:

• For electromagnetic interference protection of sensitive video equipment

• Apply to other uses BNC connectors for the signal transmitted through the coaxial cable.

• protect against a variety of video transmission equipment from the signal transmission line inductive lightning surge voltage, over-voltage and electrostatic discharge caused by damage.

• Monitor system (such as video matrix switchers, cameras, video surveillance equipment, video distributor, etc.).

• Video line surge protection.

• Protecting Closed Circuit Television (CCTV), video, camera, and surveillance systems to avoid being influenced by leakage pickups.

• Lightning protection of analog video signal with BNC connector.

6V Low Voltage Arrester Cable Surge Coaxial Video Signal SPD Advantage:

• Simple structure, easy installation and maintenance

• It has advantages of multi classes protection

• Perfect transmission performance

• Lower prices than other companies in the industry

• Professional manufacturer, over 17 years experience in production and processing

• Faster product innovation, production specialization, timely delivery

• Strict quality inspection procedure

• Quantity discount is available

6V Low Voltage Arrester Cable Surge Coaxial Video Signal SPD Installation and maintenance:

• Integrated multi-stage surge protection, which can be easily connected in series access line, pay attention when installing the cables out of the direction of the alignment should be separated to avoid the emergence of a secondary coupling surge.

• Should be checked regularly work surge protector, when problem arises and the SPD is suspected, check the system with SPD taken out of circuit.Should system recover, the SPD shall be regarded as a damaged unit and must be replaced immediately.
