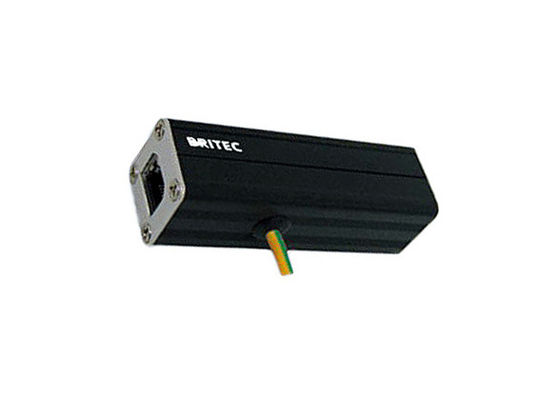

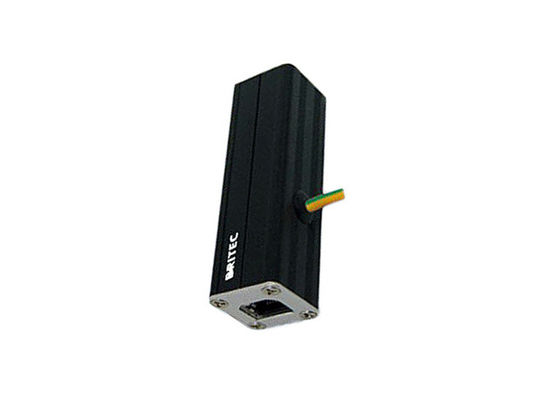

Name: 5V Ethernet Surge Protection Devices For Protects POE Devices From Lightning Induced Surges
Brand: BRITEC
SKU: BRRJ45-1
Price: 1 USD
Availability: InStock
Rating: 4.9 (162 reviews)

Home Products Ethernet Surge Protection Devices

5V Ethernet Surge Protection Devices For Protects POE Devices From Lightning Induced Surges

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BRRJ45-1

Payment & Shipping Terms:

Minimum Order Quantity:	200 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Type:	RJ45
Model Number:	BRRJ45-1	Item Name:	Ethernet Surge Protector
Tu:	-40℃-80℃	Un:	5V
IL:	0.5A	In:	5kA
Connection:	RJ45 Socket	Bandwidth:	30 Mbps
High Light:	ethernet lightning arrestor , ethernet surge protector poe

Ethernet Surge Protector For Protects POE Devices from Lightning Induced Surges

5V Ethernet Surge Protection Devices Feature:

• Nominal current up to 0.5A.

• Tested standards IEC 61643-21.

• Power-over-Ethernet compatible.

• Housing material: aluminum alloy.

• Network connection: RJ45 connector.

• Operating Temperature: -40°C to +80°C.

• Adheres to cable categories CAT5e, CAT6.

• Protection Modes Line-Line, Line-Ground.

• Nominal Discharge Current (8/20μs): 5 KA.

• Outside Dimensions (W*L*H) 25*25*84 mm.

5V Ethernet Surge Protection Devices Product Details:

	BRRJ45-1
Test standards	IEC61643-21
Nominal voltage Un	5V
Max.continuous operating d.c.voltage Uc	6V
Max.continuous operating a.c.voltage Uc	4V
Nominal current IL	0.5A
C2 Nominal discharge current (8/20us) per line In	5kA
Voltage protection level [line-line] Up	≤30V
Voltage protection level [line-PG] Up	≤500V
Response time [line-line] tA	≤1ns
Response time [line-PG] tA	≤100ns
Operating temperature range Tu	-40℃…+80℃
Connection (input/output)	RJ45 socket
Bandwidth	30 Mbps / 100 Mbps / 300 Mbps
Insertion Loss	≤0.3dB
Enclosure material	aluminium alloy
Degree of protection	IP20

Dimension:

5V Ethernet Surge Protection Devices For Protects POE Devices From Lightning Induced Surges 0

5V Ethernet Surge Protection Devices Application:

• Protect network devices powered from Ethernet such as webcams.

• Protect against include direct lightning strikes, voltage spikes, or POE overvoltage.

• Protects both transmission and power circuits from lightning surges on POE compatible devices.

• Protect PSE (power-supply equipment) connected to a network from transient overvoltage.

• Inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage of electronic networking equipment.

• Protect communication devices connected via Ethernet LAN from lightning surge entering through network cables.

• Protect a wide array of valuable components such as switch, router, modem, bridge, repeater, or any part of internet service network.

5V Ethernet Surge Protection Devices Installation:

• It should be properly grounded to work. The Ethernet ground wire (11 Inch - 12 AWG) on the surge protector needs to be connected to ground through the shortest path.

• The Line-to-Line Ethernet surge protection mode helps protect against short circuits between different nodes of the network system while the Line-to-Ground mode protects against short circuits between the network node and the earth.

Company information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Certificate:

Payment & Shipping:

FAQ:

Q1: What is your terms of payment?
A1: T/T, Paypal etc.

Q2: What is your terms of delivery?
A2: EXW, FOB, CIF, CNF.

Q3: How about your delivery time?
A3: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4: Can you produce according to the samples?
A4: Yes, we can produce by your samples or technical drawings.

Q5: Is samples available?

A5: Samples are available, but it is not free.
