Type 1 Class B Surge Protection Device 50kA Three Phase System for Low Voltage Power Distribution

Certification
China Britec Electric Co., Ltd. certification
China Britec Electric Co., Ltd. certification
I'm Online Chat Now

Type 1 Class B Surge Protection Device 50kA Three Phase System for Low Voltage Power Distribution

Type 1 Class B Surge Protection Device 50kA Three Phase System for Low Voltage Power Distribution
Type 1 Class B Surge Protection Device 50kA Three Phase System for Low Voltage Power Distribution

Large Image :  Type 1 Class B Surge Protection Device 50kA Three Phase System for Low Voltage Power Distribution

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE/TUV/CB
Model Number: BR-50GR 3P
Document: BR-50GR 3P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month

Type 1 Class B Surge Protection Device 50kA Three Phase System for Low Voltage Power Distribution

Description
Item Name: Surge Protection Device Usage: Low Voltage
Uc: 275V Iimp: 50kA
Safety Standar: IEC61643-1 Color: White
Material: Thermoplastic Class: Type 1 Class B
Keyword: Lightning Protection Voltage Rating: 120V/240V
Voltage Protection Level: 2.0KV Responsetime: Less Than 25 Nanosecond
Pole No: 3P Protection: IP20
Highlight:

lightning surge protector

,

power surge arrester

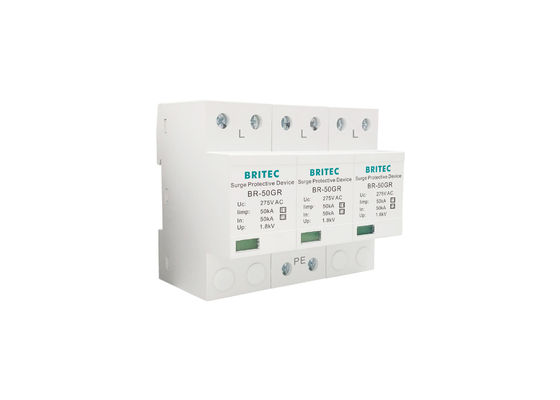

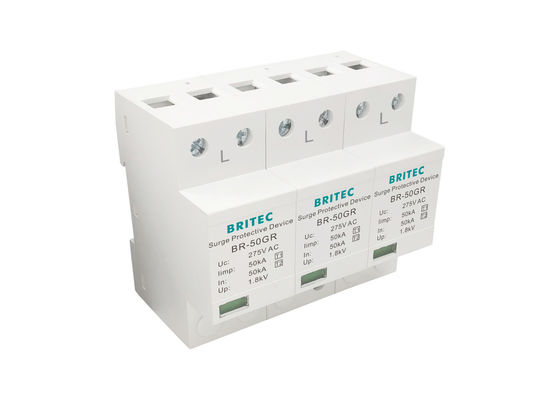

Type 1 Class B Surge Thunder Protection Device 50kA 385V Three Phase System
Product Features
  • Working indication window
  • Remote alarm connector: optional
  • Good sealing, modular design with 35mm Din-rail mounting
  • Designed according to IEC61643 standard
  • Compliant with Low-voltage Surge Protective Devices standards
Technical Specifications
Applicable Power Supply System TN-C system
Max. continuous operating a.c. voltage Uc 275V
Nominal discharge current (8/20us) In 50kA
Maximum discharge current (8/20us) Imax 160kA
Lightning impulse current (10/350us) Iimp 50kA
Voltage protection level Up ≤2.0kV
Response time tA ≤100ns
Indication Method Indication Window, Turns Red When Malfunction
Remote Alarm Function Optional
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Operating temperature range Tu -40℃ to +80℃
Relative Humidity ≤95%RH
Dimensions
Type 1 Class B Surge Thunder Protection Device dimensional diagram
Applications
Suitable for low voltage power distribution cabinets/boxes of buildings, and equipment connected between three (single) phase AC power supply and system in parallel.
Delivery Time
25 working days after receiving deposit (depending on quantity).
Payment Terms
  • 100% in advance (Contract Value less than $5000)
  • 30% in advance, balance payment before shipment
Surge protection device installation example
