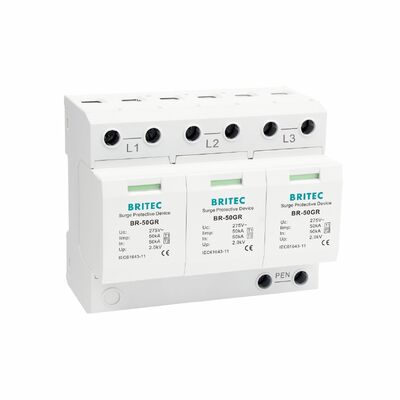

Product Details:
|
| Item Name: | Surge Protection Device | Usage: | Low Voltage |
|---|---|---|---|
| Uc: | 275V | Iimp: | 50kA |
| Safety Standar: | IEC61643-1 | Color: | White |
| Material: | Thermoplastic | Class: | Type 1 Class B |
| Keyword: | Lightning Protection | Voltage Rating: | 120V/240V |
| Voltage Protection Level: | 2.0KV | Responsetime: | Less Than 25 Nanosecond |
| Pole No: | 3P | Protection: | IP20 |
| Highlight: | lightning surge protector,power surge arrester |
||
Applicable Power Supply System
TN-C system
Max. continuous operating a.c. voltage Uc
275V
Nominal discharge current (8/20us) In
50kA
Maximum discharge current (8/20us) Imax
160kA
Lightning impulse current (10/350us) Iimp
50kA
Voltage protection level Up
≤2.0kV
Response time tA
≤100ns
Indication Method
Indication Window, Turns Red When Malfunction
Remote Alarm Function
Optional
Cross-section area (Min.)
4mm²
Cross-section area (Max.)
35mm²
For mounting on
35mm Din rail
Enclosure material
Thermoplastic UL94-V0
Degree of protection
IP20
Operating temperature range Tu
-40℃ to +80℃
Relative Humidity
≤95%RH
