320V White Power Surge Protection Device with 12.5kA Type 1+2 Class I+II and IEC61643-1 Safety Standards

320V White Power Surge Protection Device with 12.5kA Type 1+2 Class I+II and IEC61643-1 Safety Standards
320V White Power Surge Protection Device with 12.5kA Type 1+2 Class I+II and IEC61643-1 Safety Standards 320V White Power Surge Protection Device with 12.5kA Type 1+2 Class I+II and IEC61643-1 Safety Standards

Large Image :  320V White Power Surge Protection Device with 12.5kA Type 1+2 Class I+II and IEC61643-1 Safety Standards

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-12.5M 320 1P
Document: BR-12.5M 1P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

320V White Power Surge Protection Device with 12.5kA Type 1+2 Class I+II and IEC61643-1 Safety Standards

Description
Warranty: 5 Years Operating Temperature Range: -40°C To 80°C
Protection Level: 1.5kv Shipping Term: UPS/Fedex
Maximum Surge Current: 60kA Application: Industrial
Structure: MOV Class: Type 1+2
Safety Standards: IEC61643-1 Keyword: Lightning Protection
Highlight:

lightning surge protector

,

power surge arrester

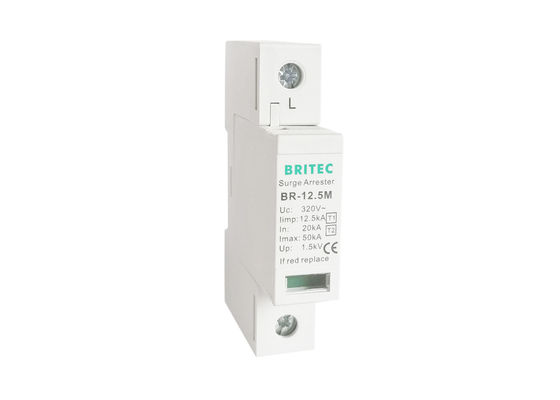

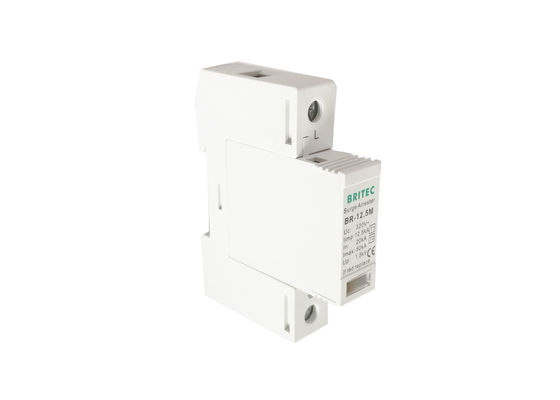

320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD
Product Features
  • Indoor fixed installation, voltage limited type
  • Module design
  • Large lightning current discharge capacity
  • Installed in 35mm DIN rail, easy to wire
  • Easy to maintain
  • Visible window displays green when working normally, red when failed
  • Response time <25ns
  • Available in different working voltage levels and lightning discharge currents
  • Customization available according to requirements
Technical Specifications
Max. continuous operating a.c. voltage (Uc) 320V
Voltage protection level (Up) ≤1.5kV
Lightning impulse current (10/350us) (Iimp) 12.5kA
Nominal discharge current (8/20us) (In) 25kA
Max. discharge current (8/20us) (Imax) 60kA
Response time (tA) ≤25ns
Test Standard IEC61643-1
Operating temperature range (Tu) -40℃--80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Product Dimension
320V White Power Surge Protection Device dimensions and specifications
Shipping Information
  • Shipment port: SHANGHAI/NINGBO
  • By Air or by Sea for batch goods, Airport / Port receiving
  • Customers specifying freight forwarders or negotiable shipping methods
Shipping and logistics process for surge protection devices
Our Services
  • One to one service, feedback within 24 hours
  • Design for special packing, products printing and logo OEM
  • Find the solution for any problems actively
Product Certification
Certification and quality standards for surge protection devices
Manufacturing Workshop
Manufacturing workshop and production facilities
Frequently Asked Questions
Q: If I'm interested in your surge protector when I can receive your quotation and detail information after send the enquiry?
A: All your enquiry will be replied in 24 hours.
Q: Can I get a sample before the order because I really don't know how is your Surge diverter quality?
A: Of course! We also think sample order is the best way to build the trust. But in our company samples are not free.
Q: How's the delivery? Because I really need them is urgently?
A: For sample order 7-10 days will be no problem. And for regular order we promise in 30 days.
