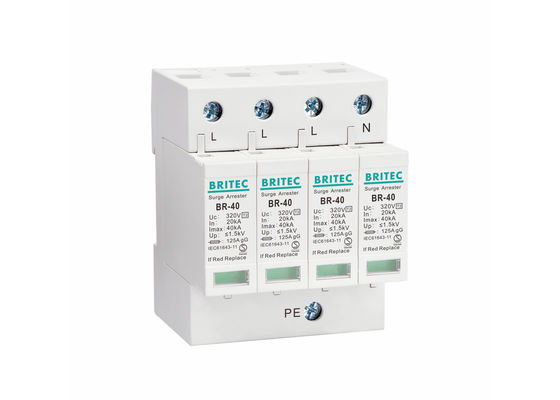

Power Voltage AC 3 Phase SPD 40kA Lightning Protectors Electrical Equipment

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	BR385-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protective Device	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Material::	Thermal Plastic
Type Item:	SPD	Color:	White, Grey
Rated Voltage:	385V	In:	20kA
Usage:	Low Voltage	Model Number:	BR385-40 4P
Highlight:	lightning protection device , power surge arrester

Power Voltage AC 3 Phase SPD 40kA Surge Protective Device Electrical Equipment

Power Voltage AC 3 Phase SPD 40kA Lightning Protectors Feature:

• Plug and play design, live-wire replacement, easy maintenance.

• Designed according to IEC 61643-1.

• Green light in notice window indicates normal; red indicates broken, replacement notice, which is clear and easy distinguished.

• Three-phase protection for TN-S system.

• Optional remote signaling monitoring interface, realizable remote monitoring.

• High discharge capacity, quick response.

• Assembled 1P, 2P, 3P, 4P etc. modes, applied to various electric network systems.

Power Voltage AC 3 Phase SPD 40kA Lightning Protectors Technology characteristic:

	BR385-40 4P
SPD classification according to EN61643-11	Type 2
SPD classification according to IEC61643-11	Class II
Max. continuous operating a.c. voltage Uc	385V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level Up	≤1.8kV
Response time tA	≤25ns
Max. backup fuse	125A gG
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Dimension	4mods
Test standards	IEC 61643-1
Core component	Varistor
Degree of protection	IP20
Operating state/fault indication	green/red
Remarks	Other maximum continuous operating voltage UC can be customized (150V, 275V, 320V, 440V)

Technology:

Power Voltage AC 3 Phase SPD 40kA Lightning Protectors Electrical Equipment 0

Power Voltage AC 3 Phase SPD 40kA Lightning Protectors Application:

• Protecting low voltage equipment from surge damages.

• Applied in modular SPD Class II (Class C) for TNS power supply system.

Workshop:

Certification:

Shipping:

Power Voltage AC 3 Phase SPD 40kA Lightning Protectors Electrical Equipment 3

Labortory Equipment:

Power Voltage AC 3 Phase SPD 40kA Lightning Protectors Electrical Equipment 4

FAQ:

Q1: Is the sample available and free?
A: Sample is available but not free. And the cost will be refund after further order received.

Q2: Do you accept customized order?
A: Yes we do.

Q3: What the delivery time?
A: Within 2 weeks for small order after receiving the payment, but sometimes delivery time will be based on the order quantity.

Q4: What is the payment term?
A: T/T, Paypal etc.
