Name: 25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector
Brand: BRITEC
SKU: BR-25M 2P
Rating: 4.5 (181 reviews)

Home Products Power Surge Protection Device

25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-25M 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protector	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Safety Standard:	IEC61643-1
Uc:	275v	Iimp:	25kA
For Mounting On:	35mm Din Rail	Pole No.:	2P
Application:	Single Phase	Weight (g):	500
High Light:	lightning protection device , lightning surge protector

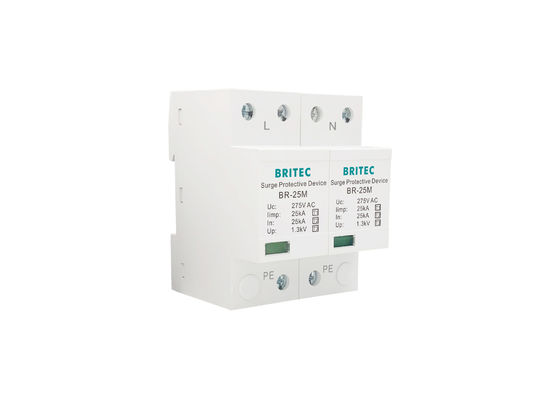

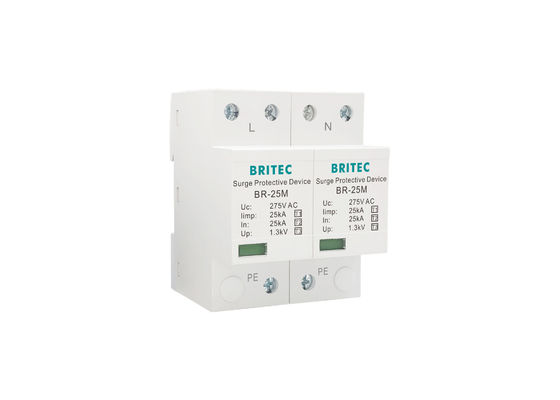

25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector

25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector Features:

• High performance varistor with thermal disconnection tripping device.

• Protection class: Type 1, Class I.

• Pole number: 2P.

• Green/Red window color showing working status, green=normal, red=abnormal.

25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector Technology characteristic:

	BR-25M 2P
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.3kV
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Maximum discharge current (8/20us) Imax	100kA
Response time tA	≤25ns
Test standard	IEC61643-1
Operating temperature range Tu	-40℃—80℃
Relative humudity(25°C)	≤95%
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0

Dimension:

25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector 0

25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector Application:

• Protecting low-voltage consumers' installations against indirect lightning discharges.

• Used to guard sensitive equipment from voltage spike.

Our Services:

• Reply inquiry within 24 hours.

• Answer your detailed question.

• Freight forwarder: faster, safer, and convenient.

• Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.

Company Information:

Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.

25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector 1

Certification:

Product process:

Shipping:

FAQ:

Q1: How long is the delivery time?
A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.

Q2: What is the warranty for the surge protection?
A: Two years.

Q3: What is the payment terms?
A: T/T, Paypal, etc.

Q4: How about the products quality?
A: Our products have got CE, CB, TUV certificates.

Q5: Is it OK to print my logo on lightning arrester?

A: Yes. Please inform us formally before our production.
