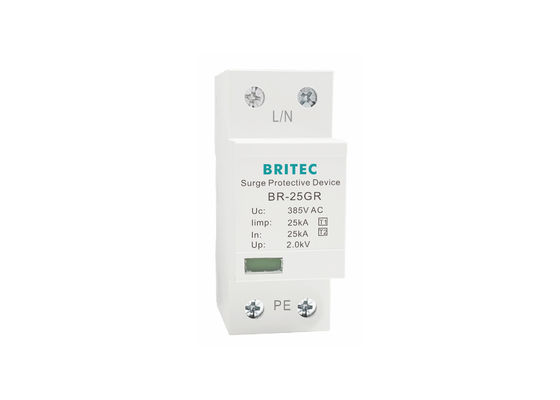

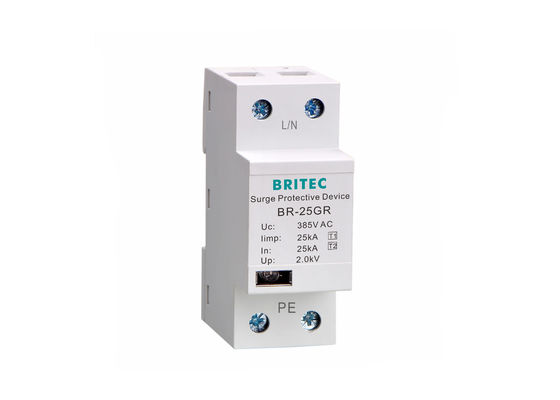

Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA

Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA

  • Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA
  • Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA
Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA
Product Details:
Place of Origin: China
Model Number: BR-25GR 1P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Brand Name: BRITEC Item Name: Surge Protection Device
Place Of Origin: Zhejiang, China (Mainland) Model Numbers: BR-25GR 1P
Safety Standard: IEC61643-1 Uc: 385V
Iimp: 25kA Weight (g): 0.25kgs
Color: White, Grey Application: Single Phase
High Light:

lightning protection device

,

power surge arrester

AC 385V Single Phase SPD 25kA Power Supply Surge Current Protection Device



Power Supply Surge Current Protection Device Features:



• Indoor fixed installation, voltage limited type.

High energy surge protection.
Smallness leak current, response quickly, less residual voltage.
Failure detection indicator.
New technology, highly energy.
Standard modular installation.
Time of response <100ns.
Flame retardant plastic are adopted.
Large discharge current (Iimp): 25kA (10/350μs).
Easy installation, directly installed in the standard 35mm rail profiles.



Power Supply Surge Current Protection Device Technology characteristic:



  BR-25GR 1P
SPD classification according to EN61643-11 Type 1
SPD classification according to IEC61643-11 Class I
Max. continuous operating a.c. voltage                           Uc 385V
Voltage protection level                                                    Up ≤2.0kV
Lightning impulse current (10/350us)                            Iimp 25kA
Nominal discharge current (8/20us)                                  In 25kA
Max. discharge current (8/20us)                                   Imax 100kA
Response time                                                                  tA ≤100ns
Operating temperature range                                           Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                 Thermal plastic UL94-V0



Dimension:



Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA 0



Power Supply Surge Current Protection Device Application:


Suit for power supply systems.



Packing and delivery:


Standard export box package: 49 X 33 X 19cm.

Delivery Time: 15-30 days for batch goods.


Shipping:


Shipment port: SHANGHAI/NINGBO.

By Air or by Sea for batch goods, Airport/ Port receiving.

Customers specifying freight forwarders or negotiable shipping methods.



Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA 1



Our Services:



One to one service,Feedback within 24 hours.

Design for special packing, products printing and logo OEM.

• Find the solution for any problems actively.



Power Supply Surge Current Protection Device AC 385V Single Phase SPD 25kA 2



FAQ:



Q1. What's the payment terms?

  A. We accept T/T, PayPal etc.


Q2. How's the delivery time?
  A. Usually it will take about 3 weeks for production.


Q3. Tell me the standard of package?
  A. It use cartons.



Q4. Would you accept to use our logo?
  A. If you have good quantity, it absolute no problem to do OEM.


Q5. Where is your market?
  A. Our products are popular in South America, Europe, Southeast Asia, Africa, Mid East, and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
