| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-25M 150 3P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protector | Place Of Origin: | Zhejiang, China (Mainland) |
|---|---|---|---|
| Brand Name: | BRITEC | Model Numbers: | BR-25M 150 3P |
| Standard: | IEC61643-1 | Uc: | 150V |
| Iimp: | 25kA | In: | 70kA |
| For Mounting On: | 35mm Din Rail | Pole No.: | 3P |
| High Light: | lightning protection device,power surge arrester |
||

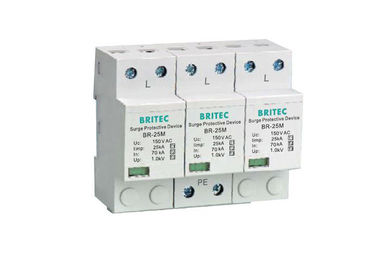

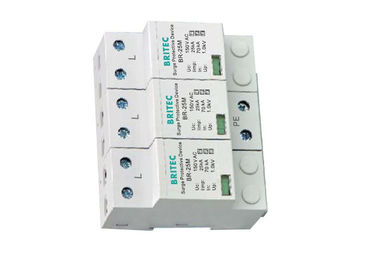

Din Rail 35mm High Quality 25KA 3P 150V Power Lightning Surge Protectors
Din Rail 35mm 25KA 3P 150V Power Surge Protection Device Features:
Din Rail 35mm 25KA 3P 150V Power Surge Protection Device Technology characteristic:
| BR-25M 150 3P | |
| No. of poles | 3P |
| Power supply system | TN-C |
| SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
| SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
| Max. continuous operating a.c. voltage Uc | 150V |
| Voltage protection level Up | ≤1.0kV |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 70kA |
| Maximum discharge current (8/20us) Imax | 140kA |
| Status indication | Mechanical flag |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Relative humidity | On condition that room temperature 30% to 90% |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
| For mounting on | 35mm Din rail |
| Max. backup fuse | 315A gG |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| Note | Other maximum continuous working voltage Uc can be customized |
Dimension:
Din Rail 35mm 25KA 3P 150V Power Surge Protection Device Application:
BR-25M series surge protective devices are suitable for B+C grade surge protection, which protects the electrical network not shocked by the thunder.
Workshop:
Laboratory:
Certificate:
Shipping:
FAQ:
Q1. What's the payment term?
A1. We accept TT, 30% deposit and 70% balance before shipping.
Q2. Would you accept to use our logo?
A2. If you have good quantity, it absolute no problem to do OEM.
Q3. Do you accept customized order?
A3. Yes, we do.
