275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection

275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection
275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection 275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection

Large Image :  275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-25M 3P
Document: BR-25M 3P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection

Description
Safety Standard: IEC61643-11 Keywords: Surge Arrester
Voltage Rating: 230/400 VAC Technology: MOV
Status Indicator: Green/Red Fuse: 200A
Connections: TN-C Enclosure Material: Thermoplastic UL94-V0
Mounting Type: DIN Rail Mount Iimp: 25KA
Highlight:

lightning protection device

,

lightning surge protector

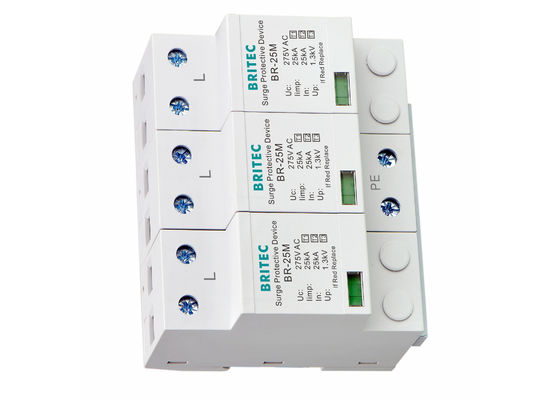

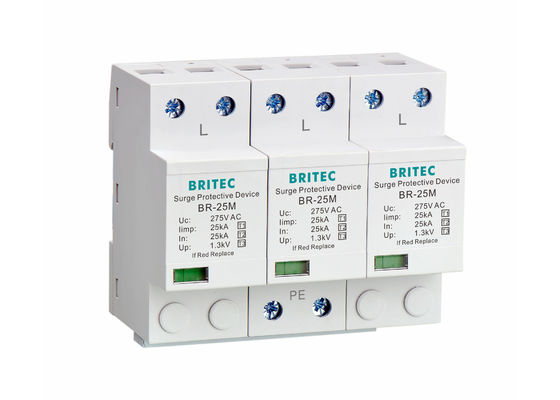

SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
Product Features
  • Parallel module type surge protective device
  • Large lightning current discharge capacity with maximum discharge current up to Imax=100kA (8/20us)
  • Modular design with excellent sealing performance
  • Matched and faulty indicator window
  • Optional remote signal interface
  • Easy installation on 35mm DIN rail with simple wiring
  • Available in different working voltage levels and lightning discharge currents
  • Customizable according to specific requirements
Technical Specifications
Max. continuous operating a.c. voltage Uc 275V
Voltage protection level Up ≤1.3kV
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 120kA
Response time tA ≤25ns
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Max. backup fuse 200A gG
Operating temperature range Tu -40℃ to +80℃
Relative humidity (25°C) ≤95%
For mounting on 35mm DIN rail
Enclosure material Thermoplastic UL94-V0
Product Dimensions
275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection 0
Application
Suitable for 220V power supply distribution lightning protection systems.
Manufacturing Facility
275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection 1
Certifications
275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection 2
Shipping & Delivery
275V Lightning Surge Protector with 25KA Iimp and DIN Rail Mount for 3 Phase Power Protection 3
Frequently Asked Questions
Q1: If I'm interested in your product, when can I receive your quotation and detailed information after sending an enquiry?
A1: All enquiries will be replied to within 24 hours.
Q2: Can I get a sample before placing an order to verify your product quality?
A2: Of course! We believe sample orders are the best way to build trust and ensure product satisfaction.
Q3: Do you have a product catalogue? Can you send me the catalogue to review all your products?
A3: Yes, we have a comprehensive product catalogue. Please contact us online or send an email to receive our catalogue.
