Name: Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power
Brand: Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power
SKU: BR-25GR 4P
Price: 1 USD
Availability: InStock
Rating: 4.8 (191 reviews)

Home Products Power Surge Protection Device

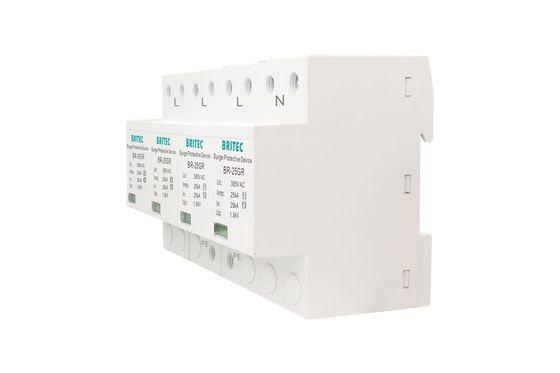

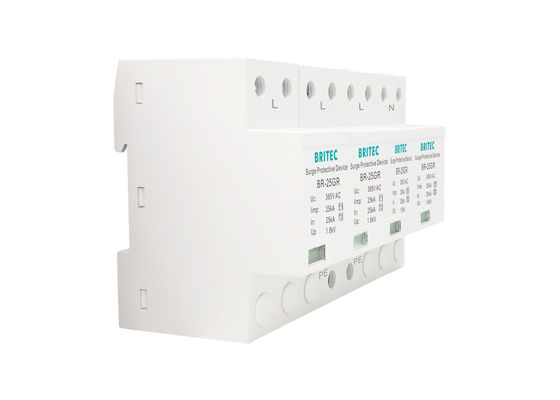

Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power

Product Details:

Place of Origin:	China
Certification:	CE
Model Number:	BR-25GR 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Brand Name:	BRITEC	Item Name:	Power Surge Protection
Place Of Origin:	Zhejiang, China (Mainland)	Model Numbers:	BR-25GR 4P
Uc:	385V	Safety Standard:	IEC61643-1
Pole Number:	4P	Iimp:	25kA
In:	25kA	Imax:	100kA
High Light:	lightning surge protector , power surge arrester

Type 1 Class B 25KA 4P 385Vac Class I High Power Surge Protector

Type 1 Class B Spd Surge Protector Features:

• Surge arrestor.

• The single module impact current can reach a maximum of 25KA (10 / 35us), which can prevent various electric surges including direct strikes.

• High arresting capacity.

• The connecting rail adopts 4-35mm² multi-strand copper soft wire.

• Visual status display.

• Simple standard hat rail mounting.

• Labeled connections.

• Energy saving, environmental protection, easy installation, no special maintenance.

Type 1 Class B Spd Surge Protector Technology characteristic:

	BR-25GR 4P
Max. continuous operating a.c. voltage Uc	385V
Thunderbolt Protection Area	0→1
Voltage protection level Up	≤1.8kV
Response time tA	≤100ns
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Operating temperature range Tu	-40℃—80℃
Air humidity	≤95%
Degree of protection	IP20
For mounting on	35mm Din rail

Dimension:

Type 1 Class B Spd Surge Protector Application:

The product is installed at the junction of LPZO or LPZOB and LPZ1 area, or at the main distribution box where the power supply is introduced.

Company Information:

Britec is located in Yueqing city, which is on the coast of the East China Sea. It is a professional manufacturer engaged in the development, production, sales and service of surge protection devices. Equipped with domestic advanced production lines and sophisticated testing equipment.

Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power 1

Factory:

Shipping:

Certificate:

FAQ:
