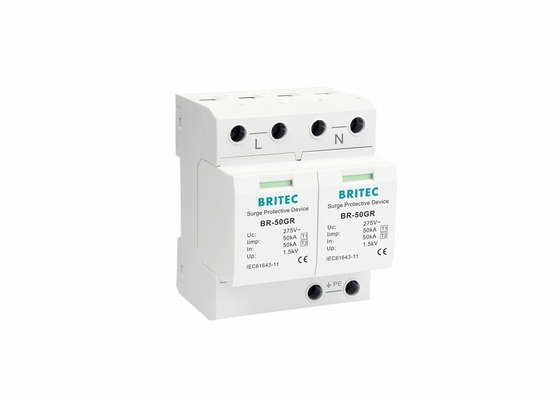

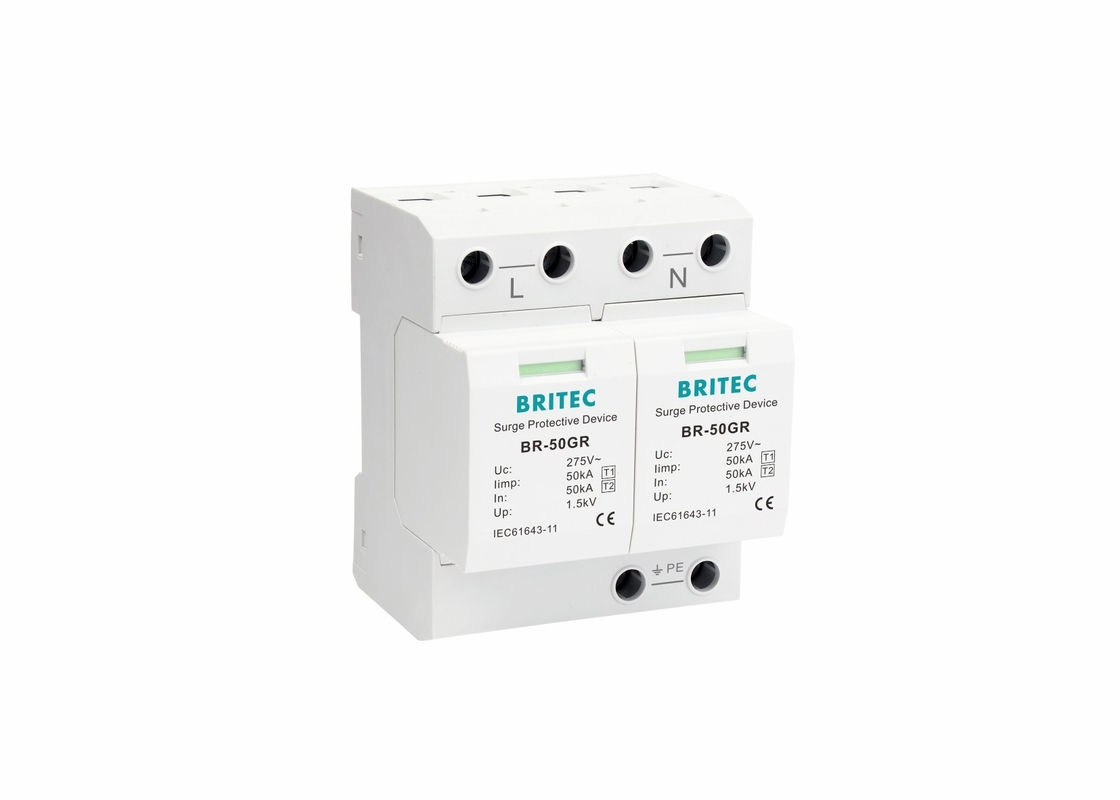

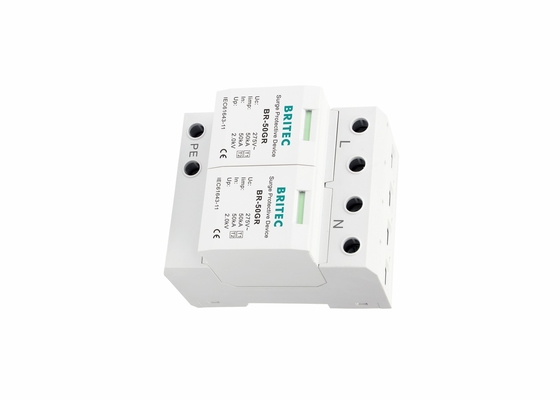

Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated

Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated

  • Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated
  • Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated
Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-50GR 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Arrester Type: Ac Surge Protector
Material: Plastic UC: 275V
Iimp: 50kA In: 50kA
Imax: 200kA Pole Number: 2P
Brand Name: BRITEC Protection: IP20
Highlight:

industrial surge protection devices

,

ac surge protection device

50kA Single Phase Type 1 Surge Protection Device TUV certificated BR-50GR 2P



Ac Electrical Type 1 Surge Protection Device Features:

• Type 1 Class I 50kA surge arrester.
• Poles number: 2P.
• Width of one pole: 36mm.
• Uc 385V / 275V can be achieved.
• Fault indication via red mark in the inspection window.
• 35mm DIN rail mountable.
• With remote signaling contact for control device for your option.
• Network system: TN system.
• In accordance with EN / IEC 61643.



Ac Electrical Type 1 Surge Protection Device Technology characteristic:



Specification BR-50GR 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage                     Uc 275V
Lightning impulse current (10/350µs)                     limp 50kA
Norminal discharge current (8/20µs)                         In 50kA
Voltage protection level                                            Up ≤1.8kV
Follow current extinguishing capability a.c.               lifi 3kA rms
Max. backup fuse 500A gG
Response time                                                          tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                   Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermal plastic UL94-V0



Dimension:



Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated 0



Ac Electrical Type 1 Surge Protection Device Application:



• Used to guard sensitive equipments from voltage spike.
• Used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.
• Used in the main distribution boards, for use primarily on mains power distribution systems to protect connected equipment from transient overvoltages.
• Suitable for the low voltage main power distribution cabinet/box of buildings, and the equipments connected between single phase AC power supply and system in parallel.

Ac Electrical Type 1 Surge Protection Device Advantage:

• Low residual voltage and quick response.
• Compact design.
• Visual indication of status.
• Endurable, sustains thousands of strikes.
• Competitively priced against other brands.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.

Certification:

Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated 1

Shipping and payment:

Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated 2Ac Electrical Type 1 Surge Protection Device 385 Voltage TUV Certificated 3

FAQ:

Q1: What payment method do you accept?
  A: We accept the various of payment, T/T bank, Credit card, L/C, Paypal etc.

Q2: Do you ship to our address?
  A: We can send goods to all the address where express could arrive.

Q3: Do you provide warranty for the goods?
  A: Yes, we provide warranty for all the goods from us.

Q4: Could you provide technology support?
  A: We're in this field for many years. There're many engineers here. If there's any problem, please contact with our sales, we'll provide suggestion from our engineer to help you solve the problem.
