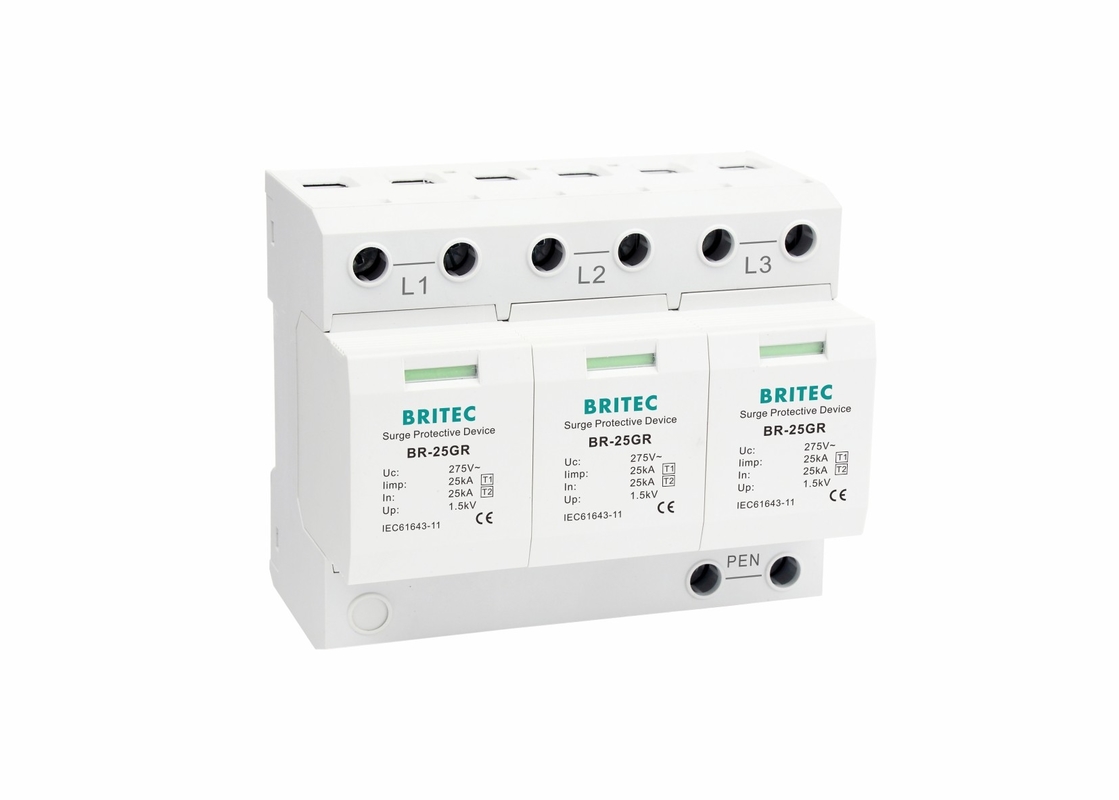

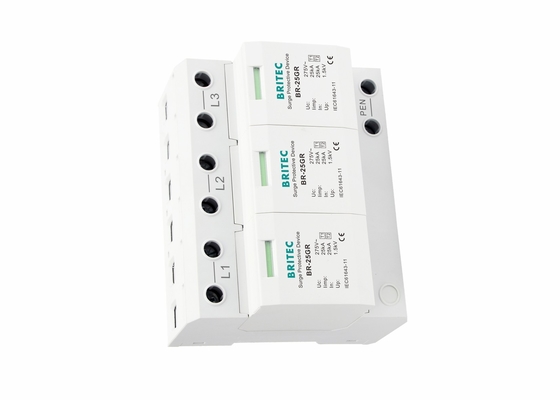

SPD Three Phase Type 1 Surge Protection

SPD Three Phase Type 1 Surge Protection

  • SPD Three Phase Type 1 Surge Protection
  • SPD Three Phase Type 1 Surge Protection
SPD Three Phase Type 1 Surge Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-25GR 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 25 days after payment
Payment Terms: T/T
Supply Ability: 500000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Type: Ac Surge Protector
Material: Plastic Class: SPD Classification According To EN61643-11 Type 1
Pole Number: 1P,2P,3P,4P,1+1,3+1 Enclosure: Thermoplastic UL94-V0
Protection: IP20 Certificate: TUV/SEMKO/CB/CE/ROHS/ISO9001 Approved Standard
Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For Three-phase TN-C System
Highlight:

industrial surge protection devices

,

type 1 surge protector

SPD Three Phase Type 1 Surge Protection Features:



Endurable,sustains thousands of strikes.

Status indication.

Uc 275V can be achieved.

Protection class: Type 1,Class I.

Pole number:1P,2P,3P,4P,1+1,3+1.

Widely suitable for single-phaseTN system,for protecting the buildings to avoid national defense.



Dimension:

SPD Three Phase Type 1 Surge Protection 0

SPD Three Phase Type 1 Surge Protection Product characteristics:



Specification BR-25GR 4P BR-25GR 3P
Item name  Surge Arrester Surge Arrester
SPD dassification according to EN61643-11 Type 1 Type 1
SPD dassification according to IEC61643-11 Class I Class I
Max continuous 0perating a.c. voltage       Uc 275V 275V
Lightning impulse current (10/350µs)       limp 25kA 25kA
Nominal discharge current (8/20µs)            In 25kA 25kA
Voltage protection level                              Up ≤1.8kV ≤1.8kV
Follow current extinguishing capability a.c.  lfi 3kA rms 3kA rms

Max. backup fuse

315A gG

315A gG

Response time                                            tA

≤100ns

≤100ns

For mounting on 35mm Din rail

35mm Din rail

Degree of protection IP20 IP20
Operating temperature range                     Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²

Enclosure material

Thermoplastic UL94-V0



3 phase spd and thermoplastic enclosure



What is spd in electrical terms?



A Surge Protective Device (SPD) is an essential electrical component designed to protect electrical equipment from damage caused by sudden voltage spikes, known as surges. These surges can result from lightning strikes, electrical system switching, or equipment malfunctions, and they can seriously damage or even destroy sensitive devices. SPDs work by diverting excess voltage to the ground, preventing it from reaching and harming your equipment.



We can make the same parameters for all the models in the abb surge arrester catalogue pdf.



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.


SPD Three Phase Type 1 Surge Protection 1


Company Information:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


SPD Three Phase Type 1 Surge Protection 2


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.


SPD Three Phase Type 1 Surge Protection 3


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.


SPD Three Phase Type 1 Surge Protection 4
