| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR385-60 3P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Device | Protection Level Up: | 2.0 KV |
|---|---|---|---|
| Product Name: | AC Surge Lightning Protector | IP Degred: | IP20 |
| Type: | Type 2 Class C | Phase: | Single Phase |
| Pole Number: | 1P | Uc: | 385V |
| In: | 30kA | Imax: | 60kA |
| Highlight: | Class C type 2 surge protector,SPD type 2 surge protector,Class II S type 2 surge arrester |
||

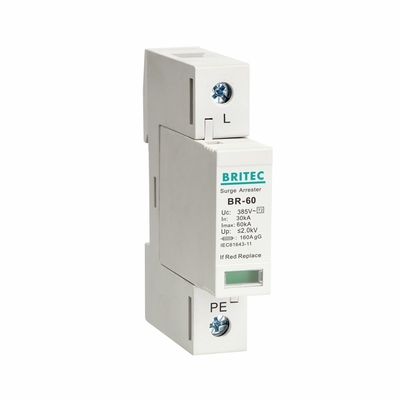

BRITEC 1P Class II SPD 60kA T2 Surge Arrester AC surge lightning protector surge protection device
We can produce according to your requirements.
Contact us get the lowest price
Product description
1. For installation at LPZ1 or higher, protecting low voltage equipment from surge damages.
2. Applied in modular SPD Class II (Class C) for TNS power supply system.
3. Designed according to IEC 61643-11.
BRITEC Type 2 Class C Surge Protection Parameters:
| Model Name | BR385-60 3P |
| Brand | BRITEC |
| Product Type | Surge Protection Device |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max. Continuous Voltage Uc | 385V |
| Max. discharge current (8/20µs) Imax | 60kA |
| Norminal discharge current (8/20µs) In | 30kA |
| Voltage protection level Up | ≤2.0kV |
| Max. backup fuse | 160A gG |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Manufacturer Guarantee | 5 Years Guarantee |
| No. of Phases | Three-Phase |
| Number of Poles | three pole |
| Operation temperature range | -40 ~ +80 degree |
| Remote control contacts | Optional |
Dimension:
BRITEC Type 2 Class C Surge Protection Application:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 2,Class II

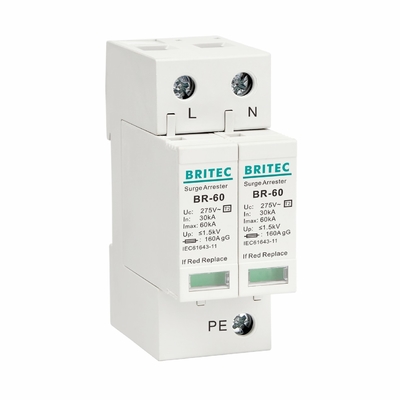

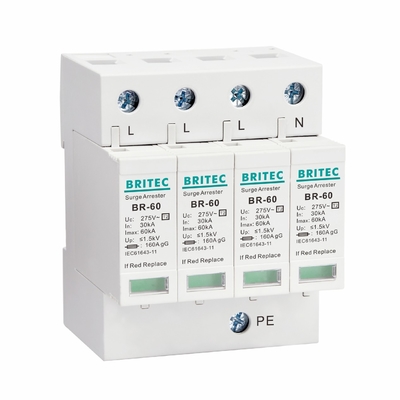

Pole number:1P,2P,3P,4P,1+1,3+1 optional
surge protectors are used to guard sensitive equipments from voltage spike
Company profile:
Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.
Our certificate:
Workroom:
FAQ:
Q1: What is the MOQ of each item?
A: Usually the MOQ is 5 pcs. If this product we have in stock, there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All products have five years guarantee.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 21 yeas. We have full experience of producing surge protection device.
Q4: How to control the quality?
A: Each product must be test before shipment. Our production line full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within 1 week we can finished all the delivery. If no have stock, normally around 3 weeks, depends on order.
