| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-POE-P |
| Minimum Order Quantity: | 30 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-20 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Temperature: | -40℃…to 80℃ | Material: | Aluminium Alloy / Thermal Plastic |
|---|---|---|---|
| Shipping Term: | TNT DHL FEDEX EMS UPS | Type: | RJ45 POE Surge Protector |
| Protection: | IP20 | OEM/ODM: | Available |
| Relative Humidity: | ≤95％ | Packing Unit: | 1 Pc |
| High Light: | 48V RJ45 POE surge protector,ethernet poe surge protector,aluminium alloy poe lightning protector |
||

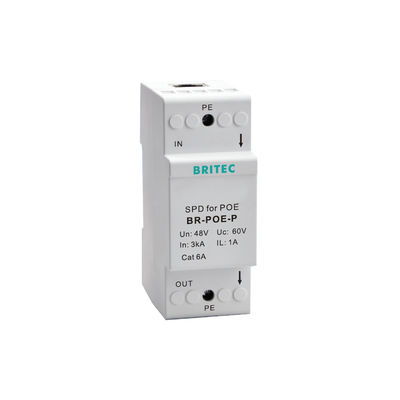

ethernet surge protection device 48V RJ45 POE surge protector
RJ45 POE surge protector Product Details:
| Specification | BR-POE-P | |
| Test standards | IEC 61643-21 | |
| SPD class | TYPE2 P1 | |
| Norminal voltage | Un | 48V |
| Max. continuous operating d.c. voltage | Uc | 48V |
| Max. continuous operating a.c. voltage | Uc | 34V |
| Max. continuous operating d.c. voltage pair-pair(PoE) | Uc | 57V |
| Nominal current | IL | 1A |
| D1 Lightning impulse current (10/350 μs) per line | Iimp | 0.5kA |
| C2 Norminal discharge current (8/20μs) line-line | In | 150A |
| C2 Nominal discharge current (8/20μs) line-PG | In | 2.5kA |
| C2 Total nominal discharge current (8/20μs) line-PG | In | 10kA |
| C2 Nominal discharge current (8/20μs) pair-pair(PoE) | In | 150A |
| Voltage protection level pair-pair for In C2 | Up | ≤180V |
| Voltage protection level line-PG for In C2 | Up | ≤500V |
| Voltage protection level line-line for In C2(POE) | Up | ≤600V |
| Insertion loss at 250 MHz | ≤3dB | |
| Capacitance line-line | C | ≤30pF |
| capacitance line-PG | C | ≤25pF |
| Operating temperature range | Tu | -40℃-80℃ |
| For mounting on | 35mm DIN rails acc. to EN 60715 | |
| Connection (input/output) | RJ45 socket/RJ45 socket | |
| Pinning | 1/2, 3/6, 4/5, 7/8 | |
| Earthing via | 35mm DIN rails acc. to EN 60715 | |
| Enclosure material | polyamide PA 6.6 | |
| Degree of protection (plugged-in) | IP10 | |
Product Description:
Features:
POE Surge Protector (Gigabit)
Power over Ethernet protector is designed for POE power supply equipment, are widely used in the areas of wireless coverage, security monitoring, etc. to protect the communication equipment's POE port line from the impact of lightning Electromagnetic pulse, lightning electromagnetic pulse, switching overvoltage.
Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)
manufacture with many years experiences.We are providing quality products, competitive price, prompt
delivery and excellent service, and looking forward to even greater cooperation with overseas trade
based on mutual benefits.
Britec have strong sales team, our surge protection device are sold to many countries around the world.
Europe and Asia are our main market. We would like to cooperate with global customers and help you
success in your market.
Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company
implements ISO9001 quality mangement system.
Britec have developed a wide range of products mainly covering requirements in the area of low voltage
lightning protection, such as SPD for power system,PV system and data , etc. All these products have
been widely applied in electronic system, computer network and security system, protection for power
industry, petroleum chemical industry and national defense industry.
01
We have our own factory and in-house test laboratory, our R&D department have more than
20 years experiences.
02
Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.
Qulaity recognized :cooperate with transnational company.
03
Inner box and out carton are made as per international standard.
We can make packaging according to customer's need.
04
Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.
05
5 years.
06
Of course,support sample order, especially for new customers under certain condition.
07
7-10 days.
08
Quality is priority. We always attach great importance to quality control from the beginning to the end of
the production. IQC inspects the components, the patrol inspection is done during production and all the
goods to be tested 100% before leaving the factory..
