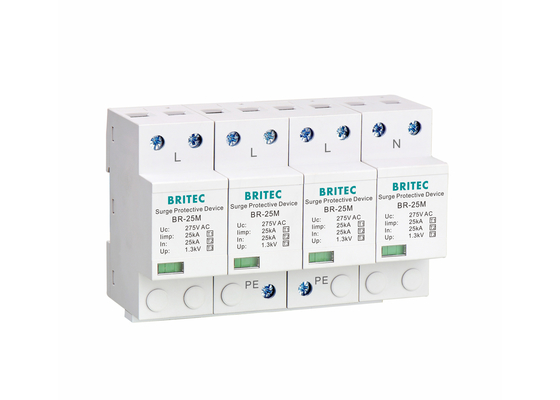

25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection

Large Image : 25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE
Model Number:	BR-25M 4P
Document:	BR-25M 4P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	100000 Piece/Pieces Month

Contact Now

25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection

Description

Structure:	MOV	Application:	AC System
Operation Voltage:	Low Voltage	Material:	Thermoplastic UL94-V0
Specification:	Weight: 1KG, Dimension: 144x90x70mm	HS Code:	8536300000
Type:	Power Surge Arrester	Installation:	Parallel Arrester
Size:	Small	Shape:	Cuboid
Highlight:	lightning protection device , lightning surge protector

25KA 10/350 Power Surge Protection Device SPD For Lightning Protection Surge Protector

Product Features

Class I AC surge protector designed for low-voltage power supply system protection
Response time less than 25ns
Quick thermal response and perfect circuit cutoff function with special thermal disconnector design and arc extinguishing device
Automatic detachment from grid upon failure with visual alarm indicators (green for normal, red for fault)

Technical Specifications

Parameter	Specification
SPD classification according to EN61643-11 with 5M	Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M	Class I + Class II + Class III
Rated operating voltage Un	220V
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.3kV
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Maximum discharge current (8/20us) Imax	100kA
Response time tA	≤25ns
Combined impulse Uoc	20kV
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Max. backup fuse	315A gG
Operating temperature range Tu	-40℃ to +80℃
Relative humidity (25°C)	≤95%
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0

Product Dimensions

Applications

• For integrated low-voltage power distribution systems

• Suitable for TN-S power supply systems of AC 50/60Hz

About Our Company

Wenzhou Britec Electric Co., Ltd. is a manufacturer established in 2003, specializing in surge arresters with over 21 years of experience. We are a high-tech enterprise of Zhejiang province and have passed ISO 9001 certification.

Our Certifications

Frequently Asked Questions

Q1: How to select the right surge protector?

A: Surge protector grading is assessed according to the IEC61024 subdivision lightning protection theory, installed at partition junctions. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone with high flow requirements (minimum GB50057 requirement is 12.5 kA 10/350), while second and third stages are installed between 1-2 and 2-3 zones, mainly to suppress overvoltage.

Q2: Are your surge protectors available for customization?

A: Yes, we offer custom surge protector solutions.

Q3: Are you a manufacturer or trading company?

A: We are a direct manufacturer of lightning surge protectors.

Q4: How can I request samples?

A: We are pleased to provide samples. Please contact our staff with your detailed contact information. We maintain strict confidentiality of all customer information.
