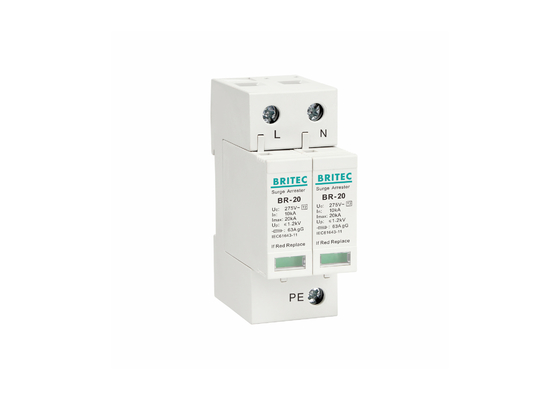

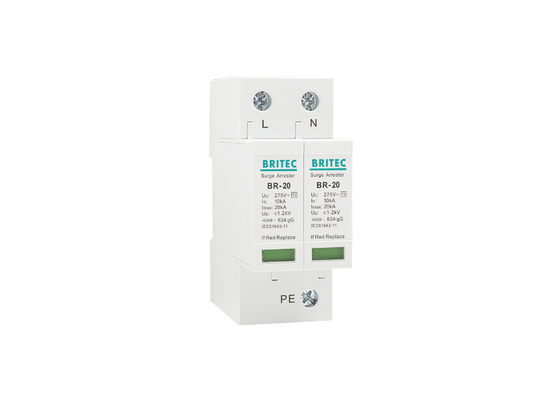

10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD

10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD

  • 10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD
  • 10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD
10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-20 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protector Place Of Origin: Zhejiang, China (Mainland)
Brand Name: BRITEC Type: Type 2
Material: Thermal Plastic Type Item: BR-20 2p
Uc: 275v In: 10kA
Usage: Low Voltage Delivery Time: 20 Days
High Light:

lightning surge protector

,

power surge arrester

Power 10/20kA Class C Single Phase 2P AC Surge Protector Device 275V SPD



10/20kA Class C Single Phase Power Surge Protection Device Feature:



Designed according to IEC 61643-1.
Single-phase protection for TN-S system.
Pluggable module, easy for installation and maintenance.
High discharge capacity, quick response.
Green window will change when fault.
Remote alarm control: Optional.



10/20kA Class C Single Phase Power Surge Protection Device Technology characteristic:



                             BR-20 2P
Max. continuous operating a.c. voltage                      Uc 275V
Nominal discharge current (8/20us)                             In 10kA
Max. discharge current (8/20us)                              Imax 20kA
Response time                                                             tA ≤25ns
Nominal frequency 50/60Hz
Installation Indoor type
Degree of protection IP20
Operating state / fault indication green / red
Remote signal alarm contacts Optional
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2



Dimension:



10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD 0



10/20kA Class C Single Phase Power Surge Protection Device Application:

Protecting low voltage equipment from surge damages.
Applied in modular SPD Class II (Class C) for TN-S power supply system.
Suitable to 220V AC power systems for protection of equipment from surges and transient over-voltages caused by external factors (such as are lightning strokes, electromagnetic impulses and interferences, etc.)



Operating environment:



Operating temperature: -40℃~+80℃.

Relative humidity: 5%-95%.

Atmosphere pressure: 70kPa~106kPa.



Reference standards:



YD/T1235.2-2002 Test methods of surge protective device applied in low voltage distribution system for communication centers (stations).

IEC 61643-1:2005 Low-voltage surge protective devices-Part 1: Surge protective devices connected to low-voltage power distribution systems-requirements and tests.

EN 60950-1/A12:2011 Low-voltage surge protective devices-Part 12: Surge protective devices connected to low-voltage power distribution systems-performance requirements and tests.

GB 18802.1-2002 Surge protective devices connected to low-voltage power systems, part 1: Performance requirements and tests.



Production Plant:



10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD 1



Test Platform:



10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD 2



Company introduction:



Wenzhou Britec Electric Co.,Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences. We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.



10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD 3



Certificate show:



10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD 4



Shipping:



10/20kA Class C Single Phase Power Surge Protection Device 2P AC Surge Protector 275V SPD 5



FAQ:



Q1: Are you the manufacturer or trader?
  R: We are a professional manufacturer located in Yueqing city, Zhejiang province, China.



Q2: What is your after-sales service and delivery?
  R: We can reply the customer's question and resolve it within 24 hours everyday and give full technical support in time about our products. The delivery is base on the order quantity, generally we need 20days can finish it.



Q3: What is the quality warranty about your product?
  R: About the quality warranty, we have the quality certificates like CE, CB, TUV etc. for our surge protection. Meanwhile, we also can supply 2 years quality guarantee.



Q4: What is your main market?
  R: The main market for us is in South America, South-East Asia, Middle East, South Africa, European countries and so on.



Q5: Do you accept ODM and OEM?
  R: Yes. Our R & D team owns latest technology, can develop and produce products base on the customers' drawing with their own brand.
