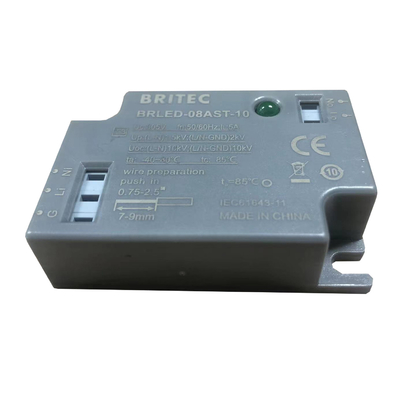

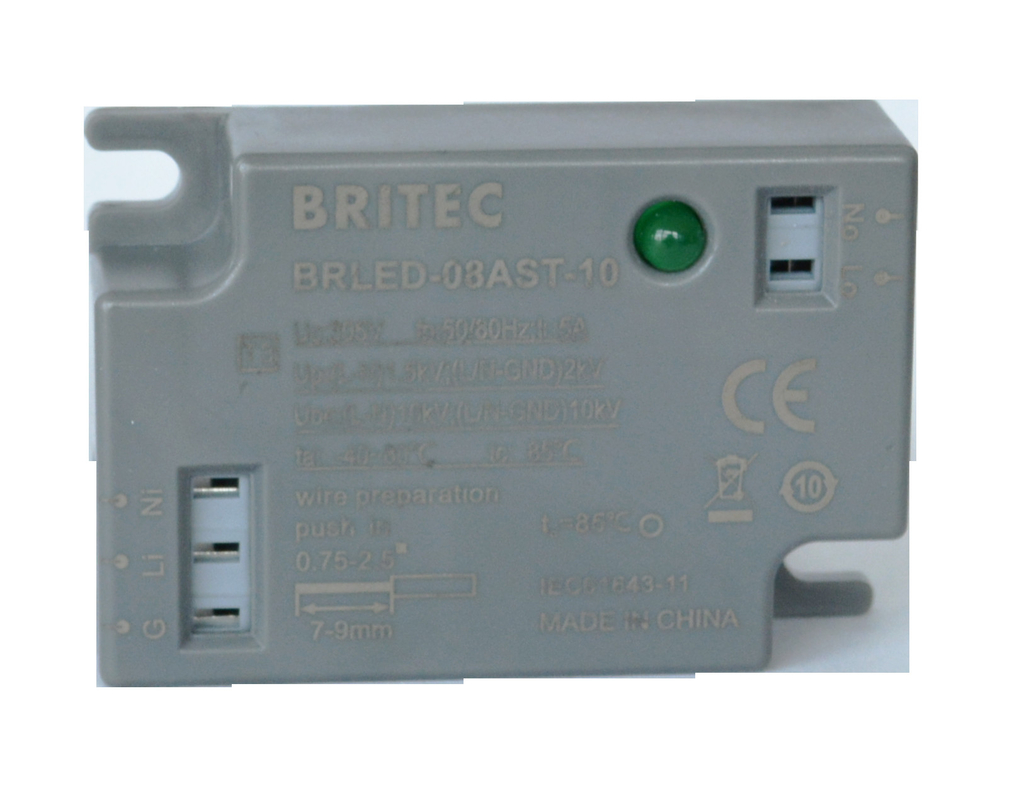

BRLED-08AST-10 LED Surge Protection Device Street Light SPD Driver Surge Protector lightning arrester

Product Description:

LED Surge Protection Device (SPD) is a high-performance surge protector designed to protect LED drivers from voltage transients and other electrical surge events. With a response time of ≤25ns, this SPD is capable of providing lightning-fast protection from surges and over-voltages, ensuring the safety of your LED driver. It features storage temperature range of -40℃~+85℃, a nominal current of 5A and a maximum discharge current of 10kA, making it suitable for a wide range of lighting applications. This LED SPD is backed by a 5-year warranty, giving you peace of mind that it is designed to the highest standards and will provide reliable protection for your LED driver for years to come.

Features:

• Product Name: LED Surge Protection Device
• Operating Temperature: -40℃~+85℃
• Nominal current: 5A
• Protection Level: ≤1.5kV
• Response Time: ≤25ns
• Dimension: 50.5*40.5*17mm
• Keywords: LED SPD, LED Driver Surge Protector, LED SPD

Technical Parameters:

Applications:

BRITEC’s BR-LED-10INS LED Surge Protection Device is certified by TUV/CB/CE/ROHS/ISO9001 and comes with a minimum order quantity of 1PCS. The packaging for this device is a carton and delivery time is 15 days after receipt of deposit, paid via TT. BRITEC is able to produce up to 1000000 of these devices a month. This device is designed for safety and protection, with a humidity level of ≤95%RH, max. continuous operating a.c. voltage of 275V, protection class of Class II + Class III, and a response time of ≤25ns.

This LED Surge Protection Device provides a long-term solution for protecting LED drivers, LED lighting systems, and other LED applications from electrical surges. By having this device in place, your LED systems and drivers will be safeguarded from any power surges, lightning strikes, and other power-related issues. Additionally, this device is designed to be extremely reliable and efficient, ensuring it can provide a long-term, dependable surge protection solution for your LED drivers and lighting systems.

Customization:

• Brand Name: BRITEC
• Model Number: BR-LED-10INS
• Place of Origin: China
• Certification: TUV/CB/CE/ROHS/ISO9001
• Minimum Order Quantity: 1PCS
• Packaging Details: carton
• Delivery Time: 15 days after receipt of deposit
• Payment Terms: TT
• Supply Ability: 1000000 per month
• Response Time: ≤25ns
• Warranty: 5 Years
• Nominal current: 5kA
• Humidity: ≤95%RH
• Operating Temperature: -40℃~+85℃

BRITEC BR-LED-10INS LED Surge Protection Device is your ideal choice for lightning surge protection. It is designed to protect your LED driver from lightning strike, power surges and spikes. Our LED SPD surge protection device provides fast response time with a 5A nominal current. It is certified with TUV/CB/CE/ROHS/ISO9001, and comes with a 5-year warranty. It offers a reliable protection even in high humidity and extreme temperatures of -40℃~+85℃. Order now!

Support and Services:

Our LED Surge Protection Device offers technical support and services, including:

• 24/7 customer service and technical support
• Free software updates
• Troubleshooting assistance
• Hardware repairs and replacements
