| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR-25GR 1P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Uc: | 150V/275V/320V | Manufacturers: | Wenzhou Britec Electric Co., Ltd. |
|---|---|---|---|
| Item Name: | Class I Surge Protection Device | Place Of Origin: | Zhejiang, China (Mainland) |
| Brand Name: | BRITEC | Model Numbers: | BR-25GR 1P |
| Safety Standard: | IEC61643-1 | Iimp: | 25kA |
| Weight (g): | 0.25kgs | Color: | White, Grey |
| High Light: | Type1 Surge Protection Device Protector,Type1 Surge Protection Device 25kA,Uc 150V Type1 Surge Protection Device |
||

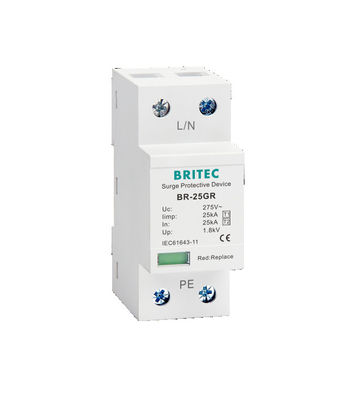

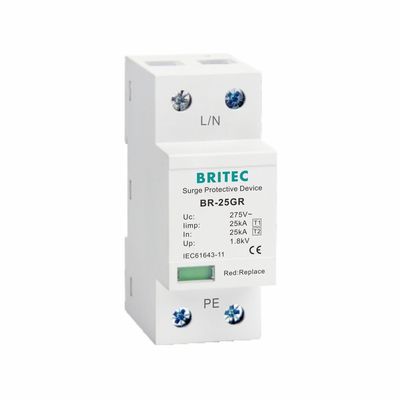

25kA Class I Surge Protector Features:
• Model number: BR-25GR 1P
25kA Class I Surge Protector Technology characteristic:
| BR-25GR 1P | |
| SPD classification according to EN61643-11 | Type 1 |
| SPD classification according to IEC61643-11 | Class I |
| Max. continuous operating a.c. voltage Uc | 275V |
| Voltage protection level Up | ≤1.8kV |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 25kA |
| Max. discharge current (8/20us) Imax | 100kA |
| Response time tA | ≤100ns |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
Dimension:
25kA Class I Surge Protector Application:
• It is mainly used for the first stage of surge protection in AC distribution system.
• Used to protect electrical and electronic equipment from induced voltages, operating transients and overvoltages.
• Widely used in communication equipment, traffic, industrial control and other fields of power protection.
• Standard export box package: 49 X 33 X 19cm.
• Delivery Time: 15-30 days for batch goods.
• Shipment port: SHANGHAI/NINGBO.
• By Air or by Sea for batch goods, Airport/ Port receiving.
• Customers specifying freight forwarders or negotiable shipping methods.
Our Services:
• One to one service,Feedback within 24 hours.
• Design for special packing, products printing and logo OEM.
• Find the solution for any problems actively.
FAQ:
Q1. What's the payment terms?
A. We accept T/T, PayPal etc.
Q2. How's the delivery time?
A. Usually it will take about 3 weeks for production.
Q3. Tell me the standard of package?
A. It use cartons.
Q4. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.
Q5. Where is your market?
A. Our products are popular in South America, Europe, Southeast Asia, Africa, Mid East, and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
