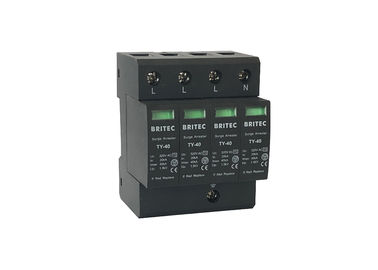

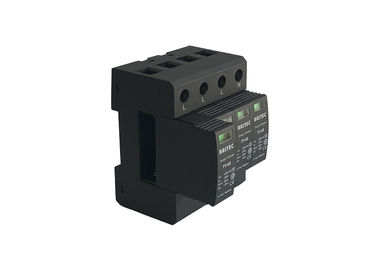

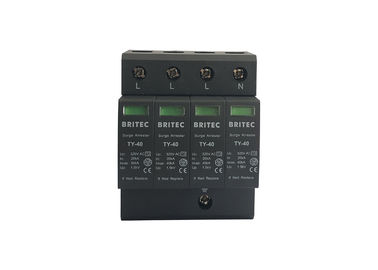

3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance

3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance

  • 3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance
  • 3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance
  • 3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance
  • 3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance
  • 3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance
3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: TY-40B 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Poles No.: 4P TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Class: Type 2 Item: Surge Arrester
High Light:

2 pole surge protector

,

type 2 surge protector



3 Phase Type 2 Surge Arrester 40KA 4P Pluggable Surge Protective



3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Feature:



• Surge arrestor, type 2.

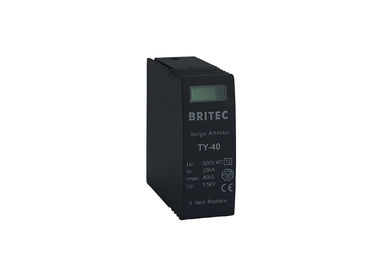

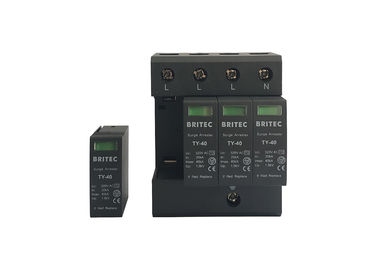

• Modular, monobloc and pluggable surge arrester.
• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors.
• Patented fast tripping mechanism.
• SEMKO approval.
• Modular design, standard 35mm DIN rail installation.
• Modular connectable arrestor with cut-off unit and visual status display.
• Products are available to meet IEC 61643 international standards.
• Plastic to UL94-V0.



3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Product Details:



  TY150 40B 4P TY275 40B 4P TY320 40B 4P TY385 40B 4P TY440 40B 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)              Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                            tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:



3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance 0



3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Application:



• For equipotential bonding in main and sub-distributions.

• For the protection of AC electrical networks from lightning, internally induced transients and also external voltage transients.
• Widely used to industry and automation, commercial and residential installations.
• Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.



3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Advantage:



• High discharge current.

• Voltage protection level (Up) is low.
• Interchangeable modules varistors.
• IP20 protection.
• Incorporate technology-based high energy varistors.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Installation:



• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.
• Multiple surge diverters installed in a cascaded approach should be used to ensure adequate protection of the facility.



Shipping:



3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance 1



Workshop:



3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector Reliable Performance 2



FAQ:



Q1: What is the MOQ of each item?
  A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.



Q2: Do you have any guarantee for products?
  A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.



Q3: Are you a factory or a trading company?
  A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection.



Q4: How to control the quality?

  A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.



Q5: How long does it take to delivery?
  A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
