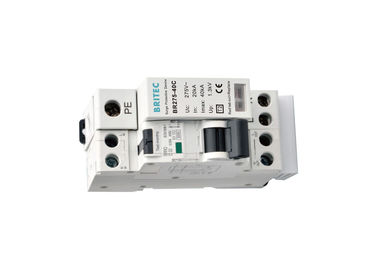

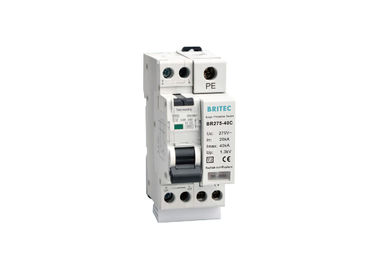

Stable Class II SPD Surge Arrester Combined With RCBO For 35mm Din Rail

Stable Class II SPD Surge Arrester Combined With RCBO For 35mm Din Rail

    • Stable Class II SPD Surge Arrester Combined With RCBO For 35mm Din Rail
    • Stable Class II SPD Surge Arrester Combined With RCBO For 35mm Din Rail
  • Stable Class II SPD Surge Arrester Combined With RCBO For 35mm Din Rail

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BRRO-15/30/40

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: EN61643-11 / IEC61643-11 Uc: 275V
    Imax: 15kA / 30kA / 40kA Material: Thermal Plastic UL94-V0
    Leakage Current: <30mA Mounting On: 35mm Din Rail
    Un: 230V Tu: -40℃...+80℃





    Class II SPD Surge Arrester Combined With RCBO For 35mm Din Rail

    Feature:



    • • Item No.:BRRO
      • Class II, Type 2
      • Max. discharge current(8/20us):15kA / 30kA / 40kA.
      • Conforms to IEC 61643-11 and EN61643-11
      • This series is surge protection combined with RCBO.
      • BRRO can detect SPD degeneration at a very early stage and cut the fault SPD with only 30mA
        leakage.
      • Remote signaling selectable.


    Product Details:




    BRRO-15

    BRRO-30 BRRO-40
    SPD classification according to EN61643-11 Type 2 Type 2 Type 2

    SPD classification according to IEC61643-11

    Class II Class II Class II
    Norminal a.c. voltage                                 Un 230V 230V 230V
    Max. continuous operating a.c. voltage     Uc 275V 275V 275V
    RCBO leakage current <30mA <30mA <30mA
    Nominal discharge current (8/20us)            In 5kA 15kA 20kA
    Max. discharge current (8/20us)            Imax 15kA 30kA 40kA
    Voltage protection level                             Up ≤1.1kV ≤1.3kV ≤1.3kV
    Response time                                                tA ≤25ns ≤25ns ≤25ns
    Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃
    Operating state / fault indication green / red green / red green / red
    Cross-section area (Min.) 2.5mm2 2.5mm2 2.5mm2
    Cross-section area (Max.) 16mm2 16mm2 16mm2
    For mounting on     35mm Din rail         35mm Din rail         35mm Din rail
    Enclosure material Thermal plastic UL94-V0
    Degree of protection IP20 IP20 IP20
    Order Code B8466 B8468 B8470
    Order code(With remote signal) B8467 B8469 B8471


    Technology characteristic:

    Stable Class II SPD Surge Arrester Combined With RCBO For 35mm Din Rail

    Application:


    • • It is installed between LPZ2 and LPZ3, it can provide protection for TN system.
      • In case of surge current or voltage caused by lightningstrike or similar, SPD functions quickly to
        conduct the surge voltage/current to earth and thus effectively prevent the downstream
        equipments of its protected line from destruction.


    Advantage:


    • • Special design, combined with RCBO.
      • Quick response less than 25ns.
      • Mechanical status indicator.
      • With remote signal.
      • Much safe than MCB and fuse.


    Our Services:


    • • 15 years global leading profession manufacture of electrical products surge arrester.
      • All products will be well packed before shipping.
      • Standard packaging, and you can also tell us your own requirements on packaging.
      • Faster delivery.
      • Individually Tested Prior to Shipment.



    Why do we need surge protection?



    • There are not many areas of the world today that do not experience surge-related incidents. Lightning
      is only one of the many causes of transient surge related problems. Today's modern electronic
      equipment is much smaller, much faster, and much more susceptible to transient related problems
      than was the last generation of equipment. The sheer number of control and communication devices
      interlinked together in today's networks make their susceptibility many times greater. These are new
      problems that were not nearly as frequent with previous generations of control equipment.
