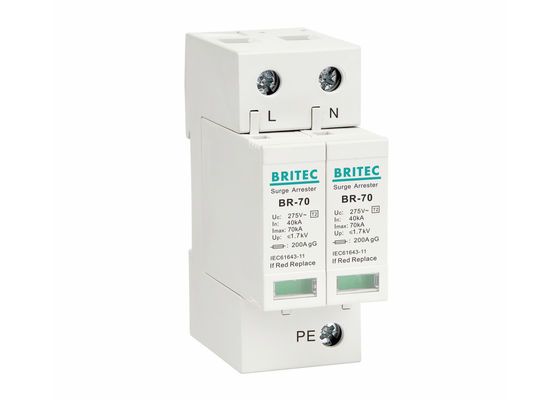

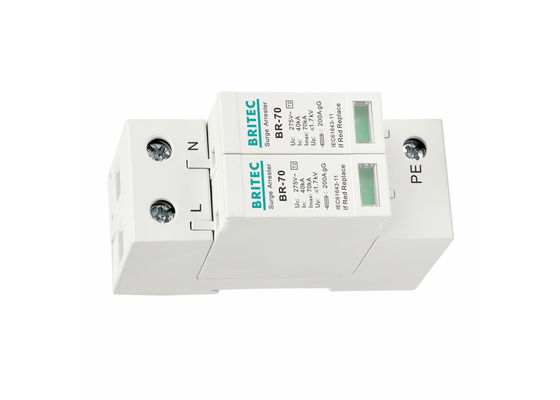

AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester

AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester

    • AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester
    • AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester
  • AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BR-70 2P

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V
    In: 40kA Material: Thermal Plastic UL94-V0
    TA: ≤25ns Mounting On: 35mm Din Rail
    Imax: 70kA Tu: -40℃...+80℃
    High Light:

    lightning surge arrester

    ,

    2 pole surge protector


    Type 2 AC Surge Protector 70kA DIN Rail Mountable Surge Arrester

    Feature:


    • • Class II, Type 2, 70kA 2P.
      • Discharge currents : In : 40 kA / Imax : 70 kA.
      • IEC 61643-11 and EN 61643-11 compliance.
      • BR-70 is DIN rail compatible and is built with a plug-in module and a fixed base.
      • The BR-70 protects against the direct and indirect lightning strikes and large switching
        transients.
      • They are particularly useful in areas where space is limited.
      • Version with a remote signaling for disconnection indication is also available.


    Product Details:


     BR150 70 2PBR275 70 2PBR320 70 2PBR385 70 2P
    SPD classification according to EN61643-11Type 2Type 2Type 2Type 2
    SPD classification according to IEC61643-11Class IIClass IIClass IIClass II
    Max. continuous operating a.c. voltage     Uc150V275V320V385V
    Nominal discharge current (8/20us)           In40kA40kA40kA40kA
    Max. discharge current(8/20μs)             Imax70kA70kA70kA70kA
    Voltage protection level                                 Up≤1.0kV≤1.7kV≤2.0kV≤2.3kV
    Voltage protection level 5kA                         Up≤0.5kV≤0.9kV≤1.1kV≤1.3kV
    Max. backup fuse200A gL200A gL200A gL200A gL
    Response time                                           tA≤25ns≤25ns≤25ns≤25ns
    Operating temperature range                   Tu-40℃-80℃-40℃-80℃-40℃-80℃-40℃-80℃
    Operating state / fault indication  green / red    green / red    green / red    green / red
    Cross-section area (Min.)4mm24mm24mm24mm2
    Cross-section area (Max.)35mm235mm235mm235mm2
    For mounting on35mm Din rail
    Enclosure materialThermal plastic UL94-V0
    Degree of protectionIP20IP20IP20IP20
    Order CodeB8276B8278B8280B8282
    Order Code (With remote signaling)B8277B8279B8281B8283


    Technology characteristic:

    AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester 0

    Application:


    • • Useful in case of high lightning density areas.
      • SPDs provide protection to electrical/electronic equipment against a brief overvoltage spike or
        disturbance on a power/signal waveform called a surge.
      • This surge arrestor is suitable for all installations where risk of surge and spike activity and,
        particularly due to nearby lightning activity, as in telecom installations, oil rigs, and open
        exposed areas with metal structures.
      • This unit should be installed in all building and sites at high risk (where a Lightning Protection
        System is in place and there is risk to human life such as schools, hospitals etc).


    Advantage:


    • • Built with a plug-in module, which allows an easy and fastmaintenance.
      • Low leakage current to ground.
      • No follow current and a low residual clamp voltage.
      • A visual fault indicator, protection redundancy.


    Our Services:


    • • 17 years global leading profession manufacture of electrical products surge arrester.
      • All products will be well packed before shipping.
      • Standard packaging, and you can also tell us your own requirements on packaging.
      • Faster delivery.
      • Individually Tested Prior to Shipment.


    Certificate:

    AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester 1

    Company Information:

    Our company has been in surge protector manufacture and export more than 17years with good quality
    and nice price, CE certificate has gained. OEM servie is welcomed. We're happy to service each
    customer the best in the future.

    AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester 2

    Installation​:


    • • Installed near the power feed so that there is the required lightning current equipotential
        bonding between the lightning protection facility and the power distribution system.
      • All surge arresters must be installed by a qualified electrician.
