IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting

IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting

    • IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting
    • IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting
  • IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BR-40 1P+NPE

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
    In: 20kA Uc[N-PE: 1
    TA: ≤25ns TA[N-PE: 1
    Imax: 40kA Tu: -40℃...+80℃

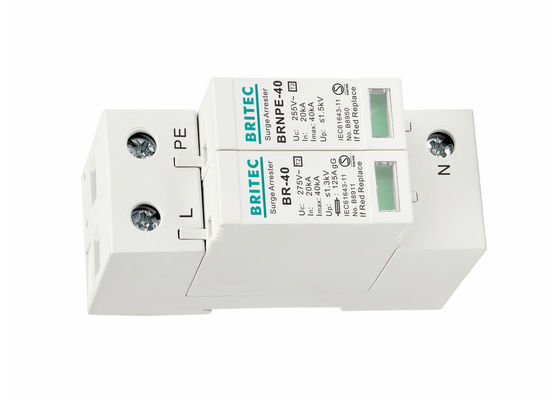

    IEC 61643-11 SPD AC 40kA Type 2 Surge Arrester 1P+NPE Lightning Protection DIN Rail Mounting



    Feature:



    • • Class II, Type 2, 40kA
      • 40kA maximum surge current
      • The surge arrestors BR-40 1+1NPE meet the type 2 requirement class according to IEC 61643-11
      • The housing is fixed on 35mm electrical guide
      • Window color display working status, normal green, red, indicating failure of the product
      • Optional with remote communication terminals for remote alarm control



    Product Details:



      BR150 40 1P+NPE BR275 40 1P+NPE BR320 40 1P+NPE BR385 40 1P+NPE BR440 40 1P+NPE

    SPD classification according to EN61643-11

    Type 2 Type 2 Type 2 Type 2 Type 2

    SPD classification according to IEC61643-11

    Class II Class II Class II Class II Class II

    Max. continuous operating a.c. voltage                  Uc

    150V 275V 320V 385V 440V

    Max. continuous operating a.c. voltage[N -PE]       Uc

    255V 255V 255V 255V 255V

    Nominal discharge current (8/20us)                         In

    20kA 20kA 20kA 20kA 20kA

    Max. discharge current(8/20μs)                           Imax

    40kA 40kA 40kA 40kA 40kA

    Voltage protection level                                           Up

    ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV

    Voltage protection level 5kA                                    Up

    ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV

    Voltage protection level [N-PE]                               Up

    ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV

    Follow current extinguishing capability [ N-PE] a.c. Ifi

    100Arms 100Arms 100Arms 100Arms 100Arms
    Max. backup fuse 125A gL 125A gL 125A gL 125A gL 125A gL
    Response time                                                         tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
    Response time [N-PE]                                             tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
    Operating temperature range                                  Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃

    Operating state / fault indication

       green / red       green / red     green / red      green / red      green / red
    Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
    Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
    For mounting on 35mm Din rail
    Enclosure material Thermal plastic UL94-V0
    Degree of protection IP20 IP20 IP20 IP20 IP20
    Order Code B8251 B8253 B8255 B8257 B8370
    Order Code (With remote signaling) B8252 B8254 B8256 B8258 B8371



    Technology characteristic:



    IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting



    Application:



    • • For protection of consumer equipment againts transient voltage caused by indirect lightning strike and switching operations.
      • Use in domestic, commercial and light industrial installations.
      • Usually installed in household power distribution boards, telecom machinery center, computer equipment center, elevator
        control center, hospital's surgery and ICU, information equipment, electronic equipment and in front of control equipment
        or nearest socket box of control equipment.



    Advantage:



    • • High current capacity, quick response
      • Low residual voltage, free of leakage current
      • Easy installation with Din rail mounting
      • Status indicators visually verify protection level
      • Simple, professional installation of the arrester modules.



    Our Services:



    • • 10 years global leading profession manufacture of electrical products surge arrester
      • All products will be well packed before shipping
      • Standard packaging, and you can also tell us your own requirements on packaging
      • Faster delivery
      • Individually Tested Prior to Shipment



    Installation:



    • Usually installed in the distribution box office, the power phase line (L), neutral (N), respectively, corresponding
         surge protectors access terminals to ensure secure and reliable, and the surge protector ground terminal and
         ground as well electrical connection.
      • Surge protectors should regularly check the work, such as the protection window turns red indicating the deterioration
         of its front open space, when the fuse is tripped, timely maintenance or replacement module.
      • After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker
         (fuse) switch, check the working status is normal.
