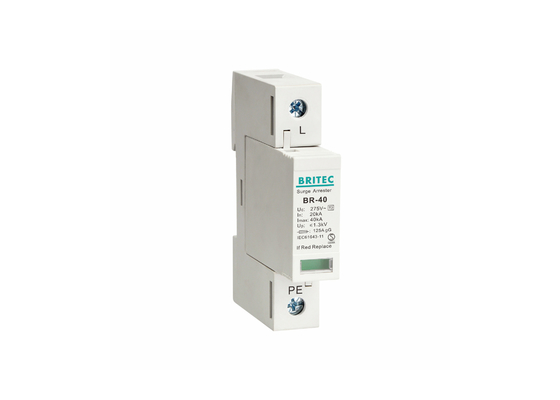

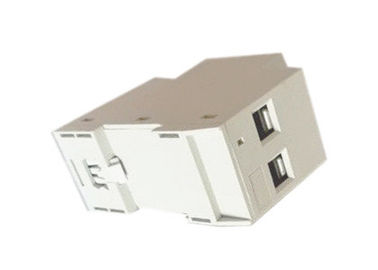

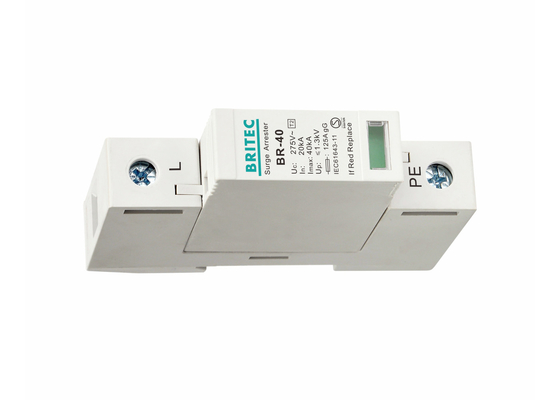

SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643

SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643
SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643 SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643 SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643 SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643

Large Image :  SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-40 1P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now

SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643

Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Item: Surge Protection Device Class: Type 2
Keyword: Lightning Protection
Highlight:

2 pole surge protector

,

type 2 surge protector



SPD 40kA 1P Lightning Protector Din Rail Anti-Lightning Electric System IEC61643



SPD 40kA 1P Lightning Protector Feature:



• BR-40 1P is for low-voltage power supply 150V / 275V / 320V / 385V / 440V, Imax 40kA, 1pole.
• Class II / Type 2 surge protection.
• Designed and manufactured according to IEC61643 standard.
• Remote signaling can select
• It is designed as module and 35mm din rail mounting.
• With working indication window, fault indication via red mark in the inspection window.
• It is accordance with the criterion of surge protective devices connected to low-voltage power systems-requirements and test methods.



SPD 40kA 1P Lightning Protector Product Details:



  BR150 40 1P BR275 40 1P BR320 40 1P BR385 40 1P BR440 40 1P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage     Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)           In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)             Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                                 Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                         Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                           tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                   Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B8101 B8103 B8105 B8107 B8109
Order Code (With remote signaling) B8102 B8104 B8106 B8108 B8110



Dimension:



SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643 0



SPD 40kA 1P Lightning Protector Application:



• BR-40 1P surge protective device are suitable for lightning and surge protection in AC 50/60Hz
• It is suitable for communications, TV broadcasting, computer room, automatic control, mechanical and electric control, mechanical and electrical equipment, and related AC power equipment.
• For the protection of low voltage equipment against transient voltages and current surges from lightning
• Protects against transients produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc



SPD 40kA 1P Lightning Protector Advantage:



• Low leakage current, fast response time, low residual voltage.
• The module design, easy installation
• The new technology, high-energy
• Window color shows working condition
• OEM & ODM are acceptable.
• We can produce according to customer's requirements.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment



Installation:



• The line of surge arresters includes a full range of compact protectors for installation on DIN rail
• When the fault indication window turns from green to red please replace the cartridge as soon as possible
• After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.



Company Information:


We provide service for surge protection solutions.



SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643 1



Certification:



SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643 2



FAQ:



Q1: Are you trading company or manufacturer?

  A: We are manufacturer.



Q2: How long is your delivery time?

  A: Generally, within 30days.



Q3: Do you provide samples? Is it free or extra?

  A: We can provide samples, but it is not free.



Q4: Can we visit your factory?

  A: Warmly welcome!
