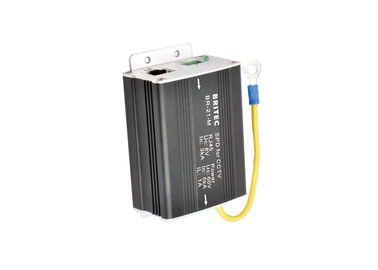

10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block

10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block

    • 10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block
    • 10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block
  • 10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BR-CCTV-21M

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-21 IL: 0.5A
    In: 5kA Material: Aluminium Alloy
    TA: ≤1ns Connection: RJ45/Terminal Block
    Bandwidth: 30Mbps Insertion Loss: ≤0.3dB
    Imax: 10kA Tu: -40℃...+80℃

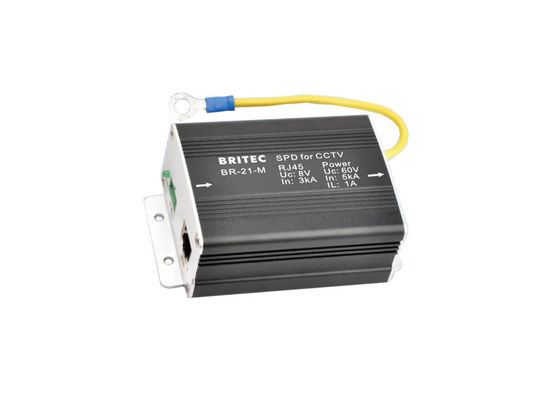

    10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block



    Feature:



    • • Low voltage surge protective device
      • Operating temperature:-40℃~+80℃
      • Designed according to IEC 61643-21 standards



    Product Details:



      CCTV-21M-48 CCTV-21M-230
    Test standards IEC 61643-21 IEC 61643-21
    Max. continuous operating d.c. voltage               (RJ45)Uc 6V 6V
    Max. continuous operating a.c. voltage               (RJ45)Uc 4V 4V
    Max. continuous operating a.c. voltage             (power)Uc 60V 275V
    Nominal current                                                             IL 0.5A 0.5A
    C2 Nominal discharge current (8/20us)                         In 5kA 5kA
    C2 Max. discharge current(8/20μs)                           Imax 10kA 10kA
    Voltage protection level [line-line/shield]             (RJ45)Up   ≤30V ≤30V
    Voltage protection level [line/shield-PG]             (RJ45)Up ≤500V ≤500V
    Voltage protection level                                     (power)Up ≤200V ≤1.2kV
    Response time [line-line/shield]                                    tA ≤1ns ≤1ns
    Response time [line/shield-PG]                                     tA ≤100ns ≤100ns
    Operating temperature range                                      Tu -40℃…+80℃ -40℃…+80℃
    Connection input/output                                RJ45/Power   RJ45/Terminal block     RJ45/Terminal block
    Bandwidth 30Mbps 30Mbps
    Insertion loss ≤0.3dB ≤0.3dB
    Enclosure material aluminium alloy aluminium alloy
    Degree of protection IP20 IP20
    Order Code D9050 D9051



    Technology characteristic:



    10kA CCTV Data SPD Surge Protector Video Monitoring Surge Arrester RJ45 Terminal Block



    Application:



    • • Designed to protect monitor equipments (Power, Ethernet), widely applied in bank monitor & safe guard system
      • Suitable to video monitoring systems for protection from surge, over voltage and electrostatic induced from lightning stroke
      • Monitor equipment for school, enterprise, road etc. security and protection. CCTV camera,dome camera
      • Suitable for lightning protection of power and video transmission



    Advantage:



    • • Easy installation and maintenance free
      • Low insertion loss
      • Quick response
      • Multiple stage protection configuration with high current discharge ability and low protection voltage
      • High quality components ensure the fast response and reliable performance
      • Interface of the surge protective device match to the equipment interface for easy connection
      • Protection circuits for over current and overheating ensures reliability, safety and flame-retardant property.



    Our Services:



    • • Professional manufacturer, 10 years global leading profession manufacture of electrical products surge arrester
      • Prompt response: Any inquiries will be replied within 24 hours
      • OEM/ODM available
      • Standard packaging, and you can also tell us your own requirements on packaging
      • All products in accordance with the IEC IEEE the international standard.
      • Faster delivery
      • Individually Tested Prior to Shipment



    What is IEC 61643-21 standards?



    • • IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected
        to telecommunications and signalling networks; Performance requirements and testing methods.
      • The test categories for surge protective devices connected to telecommunications and signalling
        networks are defined in these standards.
