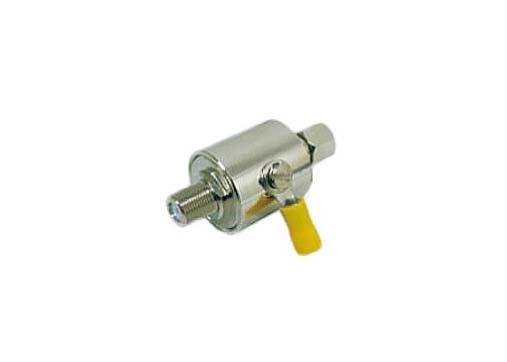

F Type 10KA Coaxial SPD Surge Protection Device F Socket Connector Water Resistance

F Type 10KA Coaxial SPD Surge Protection Device F Socket Connector Water Resistance

    • F Type 10KA Coaxial SPD Surge Protection Device F Socket Connector Water Resistance
    • F Type 10KA Coaxial SPD Surge Protection Device F Socket Connector Water Resistance
  • F Type 10KA Coaxial SPD Surge Protection Device F Socket Connector Water Resistance

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BR-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-21 IL: 20A
    In: 10kA Material: Steel
    TA: ≤100ns Connection: F Socket
    Bandwidth: 3Gbps Insertion Loss: ≤0.3dB
    Uc (AC): 130V Impedience: 50Ω



    F Type 10KA Coaxial Surge Protection Device F Connector for SPD



    Feature:



    • • Easily Replaced Element
      • Available in 50 Ω technology
      • Bi-Directional Protection
      • High Reliability Protection from Excessive Voltages
      • DC passed
      • Various Grounding Types Available
      • Insertion loss:≤0.3dB
      • Degree of protection:IP20
      • Standards compliance IEC 61643-21
      • Data cable protection devices for transmission and reception technology with exchangeable gas discharge tube.



    Product Details:



      BR-F
    Test standards IEC 61643-21
    Max.continuous operating d.c.voltage                                          Uc 180V
    Max.continuous operating a.c.voltage                                          Uc 130V
    Nominal current IL                                                                         IL 20A
    C2 Nominal discharge current (8/20us) line-shield/PG                  In 10kA
    Voltage protection level [line-shield/PG]                                      Up   ≤800V
    Response time [line-shield/PG]                                                     tA   ≤100ns
    Operating temperature range                                                      Tu -40℃…+80℃
    Connection input/output F socket
    Bandwidth 3Gbps
    Insertion loss ≤0.3dB
    Impedience 50Ω
    Enclosure material                         Steel
    Degree of protection IP20
    Order Code D9024



    Technology characteristic:



    F Type 10KA Coaxial SPD Surge Protection Device F Socket Connector Water Resistance



    Application:



    • • Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning
        over-voltage, induced over-voltage and static discharge
      • BOS radio, SAT and TV systems, mobile radio
      • Antenna Systems
      • Security Camera Systems
      • Network Appliances
      • Transmitters and Receivers
      • Communication stations, radar stations, PHS base stations, mobile communication base stations,
        GPS base stations, CDMA base stations, PHS (PAS) base stations, satellite communications, microwave stations and so on.



    Advantage:



    • • Long endurance due to minimum contact erosion resulting from the large-area contact surface
        of the gas discharge tubeMulti grade protection
      • High quality with extremely low capacitance.
      • High Frequency and Low Insertion Loss
      • Wide Range of Connector Styles
      • Water Resistance Designs
      • The built-in high-speed high-speed overvoltage protection device has an efficient defensive function
        against the lightning high-voltage pulses induced on the antenna feeder to prevent the antenna and
        transceiver equipment from being over-voltage caused by the feeder's induced lightning strike.



    Our Services:



    • • Professional manufacturer, 10 years global leading profession manufacture of electrical products surge arrester
      • Prompt response: Any inquiries will be replied within 24 hours
      • OEM/ODM available
      • Standard packaging, and you can also tell us your own requirements on packaging
      • All products in accordance with the IEC IEEE the international standard.
      • Faster delivery
      • Individually Tested Prior to Shipment



    What is IEC 61643-21 standards?



    • • IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected
        to telecommunications and signalling networks; Performance requirements and testing methods.
      • The test categories for surge protective devices connected to telecommunications and signalling
        networks are defined in these standards.
