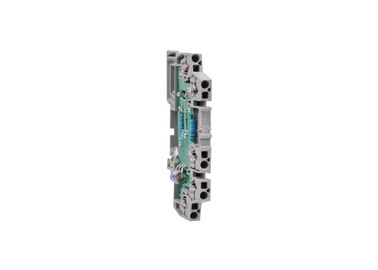

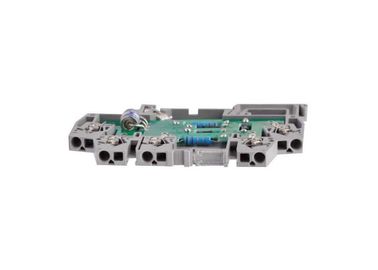

10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation

10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation

    • 10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation
    • 10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation
  • 10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BR-MD / BR-ME

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-21 SPD Class: TYPE2 P1
    TU: -40℃…+80℃ Material: Polyamide PA 6.6
    IL: 0.5A / 1.7A Cross Section: 0.08-2.5mm²
    High Light:

    data surge protection devices

    ,

    commercial surge protection devices

    10kA SPD for Date BR-MD / BR-ME polyamide PA 6.6,for general information



    Product Description:



    BR-MD:

      BR-MD-12 BR-MD-24 BR-MD-48 BR-MD-110
    Test standards IEC 61643-21
    SPD class TYPE2 P1
    Nominal voltage                                                      Un 12V 24V 48V 110V
    Max.continuous operating d.c.voltage                    Uc 14V 33V 55V 170V
    Max.continuous operating a.c.voltage                    Uc 9.5V 23V 38.5V 120V
    Nominal current at 45℃                                           IL 0.5A 0.5A 1.7A 0.5A
    C2 Total nominal discharge current (8/20us)           In 10kA 10kA 10kA 10kA
    C2 Nominal discharge current (8/20us) per line      In 5kA 5kA 5kA 5kA
    Voltage protection level line-line for In C2              Up ≤25V ≤50V ≤100V ≤260V
    Voltage protection level line-PG for In C2              Up ≤750V ≤750V ≤750V ≤750V
    Voltage protection level line-line at 1 kV/us C3      Up ≤19V ≤45V ≤70V ≤230V
    Voltage protection level line-PG at 1 kV/us C3       Up ≤650V ≤650V ≤650V ≤650V
    Series impedance per line 1.8Ohm 1.8Ohm 0.4Ohm 1.8Ohm
    Cut-off frequency line-PG                                        fG 2.5MHz 6MHz 10MHz 16MHz
    Capacitance line-line                                                C ≤2.4nF ≤1nF <0.6nF <0.4nF
    Capacitance line-PG                                                C ≤5pF ≤5pF <10pF <5pF
    Operating temperature range                                  Tu -40℃…+80℃
    Cross section of cable    0.08-2.5mm²       0.08-2.5mm²       0.08-2.5mm²       0.08-2.5mm²
    Enclosure material polyamide PA 6.6
    Degree of protection (plugged-in) IP 20 IP 20 IP 20 IP 20
    Order Code D9151 D9152 D9153 D9154



    BR-ME:

      BR-ME-12 BR-ME-24 BR-ME-48 BR-ME-110
    Test standards IEC 61643-21
    SPD class TYPE2 P1
    Nominal voltage                                                      Un 12V 24V 48V 110V
    Max.continuous operating d.c.voltage                    Uc 14V 33V 55V 170V
    Max.continuous operating a.c.voltage                    Uc 9.5V 23V 38.5V 120V
    Nominal current at 45℃                                           IL 0.5A 0.5A 0.5A 0.5A
    C2 Total nominal discharge current (8/20us)           In 10kA 10kA 10kA 10kA
    C2 Nominal discharge current (8/20us) per line      In 5kA 5kA 5kA 5kA
    Voltage protection level line-line for In C2              Up ≤55V ≤110V ≤175V ≤500V
    Voltage protection level line-PG for In C2              Up ≤40V ≤65V ≤100V ≤270V
    Voltage protection level line-line at 1 kV/us C3      Up ≤36V ≤90V ≤160V ≤460V
    Voltage protection level line-PG at 1 kV/us C3       Up ≤19V ≤45V ≤80V ≤230V
    Series impedance per line 1.8Ohm 1.8Ohm 1.8Ohm 1.8Ohm
    Cut-off frequency line-PG                                        fG 2.5MHz 6MHz 10MHz 16MHz
    Capacitance line-line                                                C <1.2nF <0.5nF <0.3nF <0.2nF
    Capacitance line-PG                                                C <2.4nF <1.0nF <0.6nF <0.4nF
    Operating temperature range                                  Tu -40℃…+80℃
    Cross section of cable    0.08-2.5mm²       0.08-2.5mm²       0.08-2.5mm²       0.08-2.5mm²
    Enclosure material polyamide PA 6.6
    Degree of protection (plugged-in) IP 20 IP 20 IP 20 IP 20
    Order Code D9131 D9132 D9133 D9134


    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 0



    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 1

    Dimension:



    BR-MD:
    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 2

















    BR-M:

    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 3



    Workshop:


    Britec owns advanced test equipments and product line, perfect management, professional technical

    personnel and well-trained workers. Britec team keep developing newest product for our customer, that is

    why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 4


    Company Information:


    Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)

    manufacture with many years experiences.We are providing quality products, competitive price, prompt

    delivery and excellent service, and looking forward to even greater cooperation with overseas trade

    based on mutual benefits.


    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 5


    Exhibition:


    Britec have strong sales team, our surge protection device are sold to many countries around the world.

    Europe and Asia are our main market. We would like to cooperate with global customers and help you

    success in your market.

    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 6


    Certifications:


    Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company

    implements ISO9001 quality mangement system.

    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 7


    Product Uses:


    Britec have developed a wide range of products mainly covering requirements in the area of low voltage

    lightning protection, such as SPD for power system,PV system and data , etc. All these products have

    been widely applied in electronic system, computer network and security system, protection for power

    industry, petroleum chemical industry and national defense industry.

    10 KA Data Surge Protection Devices Polyamide PA 6.6 Easy Installation 8


    FAQ:

    01

    How about your experience?

    We have our own factory and in-house test laboratory, our R&D department have more than
    17 years experiences.



    02

    What's your advantage?

    Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.
    Qulaity recognized :cooperate with transnational company.



    03

    Is custom design package acceptable?

    Inner box and out carton are made as per international standard.
    We can make packaging according to customer's need.



    04

    Could you do OEM for us?

    Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.



    05

    How about warranty?

    2 years.

    06

    Could I buy 1pc sample first and small order?

    Of course,support sample order, especially for new customers under certain condition.



    07

    How long make a sample?

    7-10 days.



    08

    How does your company do regarding the quality control?

    Quality is priority. We always attach great importance to quality control from the beginning to the end of

    the production. IQC inspects the components, the patrol inspection is done during production and all the

    goods to be tested 100% before leaving the factory..
