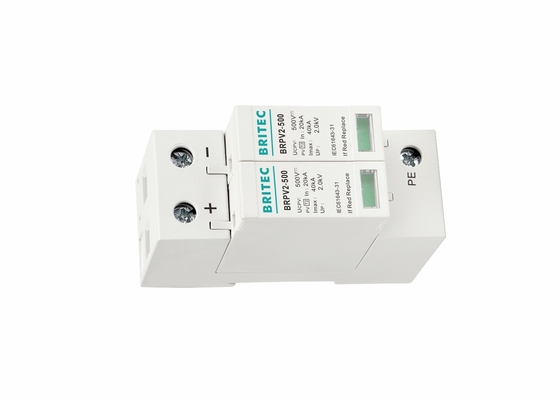

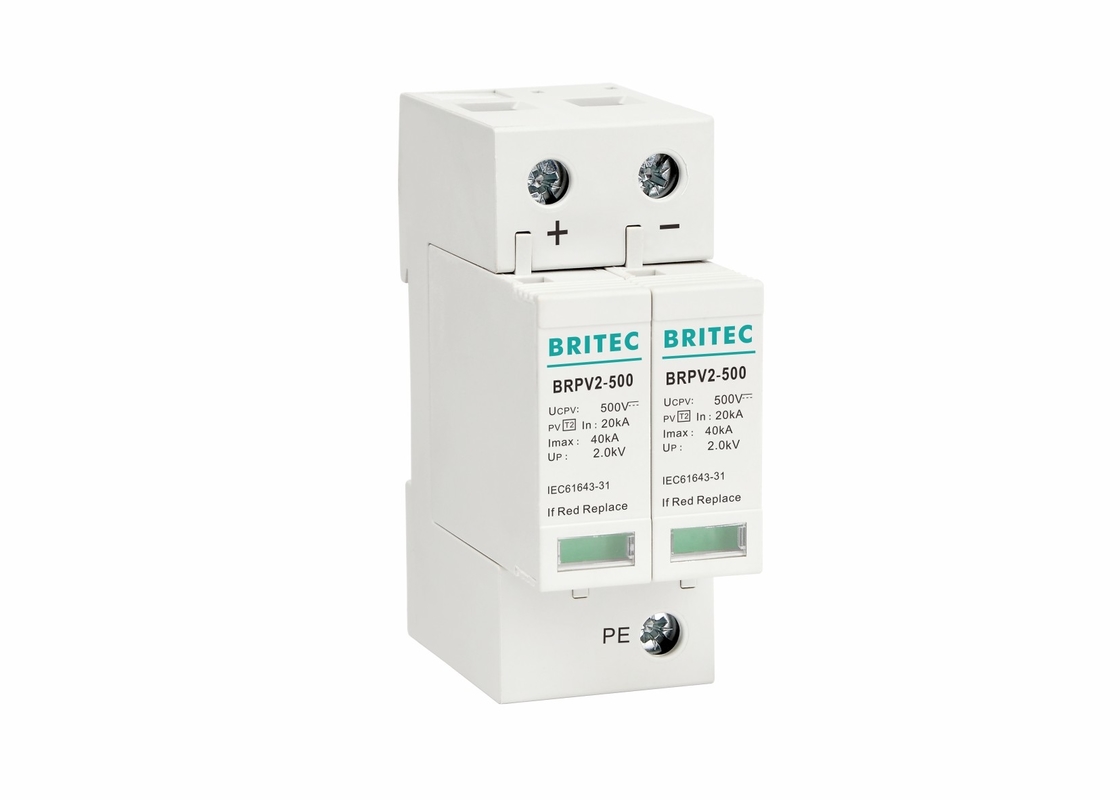

2P DC Low - Voltage Arrester Device Power Surge Protector For Solar PV System

2P DC Low - Voltage Arrester Device Power Surge Protector For Solar PV System

    • 2P DC Low - Voltage Arrester Device Power Surge Protector For Solar PV System
    • 2P DC Low - Voltage Arrester Device Power Surge Protector For Solar PV System
  • 2P DC Low - Voltage Arrester Device Power Surge Protector For Solar PV System

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Model Number: BRPV2-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Place Of Origin: Zhejiang, China (Mainland) Type: DC SPD
    Model Number: BRPV2-500 Item Name: DC Pv Surge Protector
    Material: Thermal Plastic Ucpv: 500V DC
    Pole Number: 2P Tu: -40℃-80℃
    In: 20kA Standard: IEC61643-11

    Power Surge Protector 2P DC Low-voltage Arrester Device for Solar PV System



    Characteristic:


    • Type 2 surge protector for photovoltaic system.
    • DIN rail mounting.
    • Replaceable module.
    • Designed for solar system.
    • Discharge current range from 20KA to 40KA.
    • The shell is made of flame retardant material.
    • Indicator for remote failure alerts (optional).
    • Indicator window is obvious (green is OK, red indicates failure).
    • High energy MOVs equipped with specific thermal disconnections.
    • Rated of 2 Poles can reach 500V DC, even can be customized to 12V DC, 24V DC, 48V DC.



    Product detail:



    2 Mod BRPV2-500
    SPD classification according to EN61643-11 Type 2
    SPD classification according to EN50539-11 Class II
    Max. continuous operating dc voltage                     Ucpv 500V
    Nominal discharge current (8/20us)                              In 20kA
    Max. discharge current (8/20us)                               Imax 40kA
    Voltage protection level [(DC+/DC-)→PE]                   Up ≤2.0kV
    Response time                                                              tA ≤25ns
    Operating temperature range                                       Tu -40℃-80℃
    Operating state / fault indication green / red
    Cross-section area (Min.) 4mm2
    Cross-section area (Max.) 35mm2
    For mounting on 35mm Din rail
    Enclosure material                   Thermal plastic UL94-V0
    Degree of protection IP20



    Dimension:



    2P DC Low - Voltage Arrester Device Power Surge Protector For Solar PV System



    Application:

    • For use in PV d.c. system at boundaries from LPZ 0B-1 and higher.
    • Protect against lightning surge voltages in solar system (photovoltaic power supply system).
    • Protect DC power equipment against lightning surge voltages in photovoltaic power supply network,
      such as inverters, combiner boxes and charge controllers.

    Advantage:

    • No leakage.
    • Failure status indicator.
    • Convenient replacement.
    • High discharge capacity.
    • Fast clamp response, under 25ns.
    • State-of-the-art surge protection technology.

    Installation instruction:

    • Installation must be performed only by electrically skilled operator.
    • These units must be installed in parallel on the DC networks to be protected.
    • Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.
    • If protector is to be located outdoors and exposed to elements, mount protector inside a suitable
      weatherproof enclosure.
