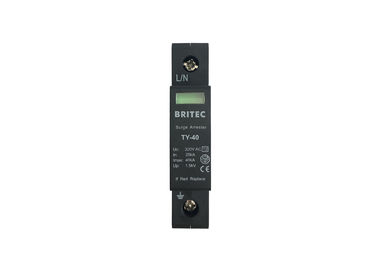

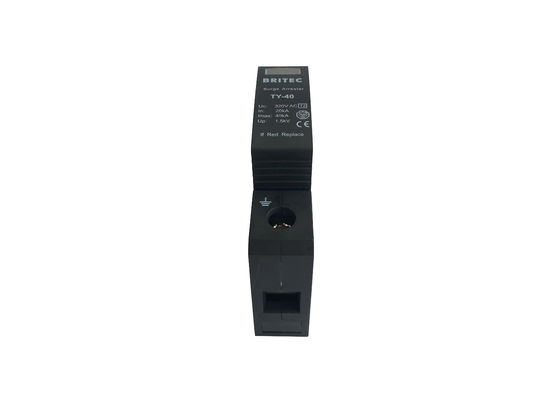

Single Phase Type 2 Power Surge Protection Device 40kA AC SPD for 230V Power Supply

Single Phase Type 2 Power Surge Protection Device 40kA AC SPD for 230V Power Supply
Single Phase Type 2 Power Surge Protection Device 40kA AC SPD for 230V Power Supply Single Phase Type 2 Power Surge Protection Device 40kA AC SPD for 230V Power Supply

Large Image :  Single Phase Type 2 Power Surge Protection Device 40kA AC SPD for 230V Power Supply

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE/CB/TUV/S
Model Number: BR-40 1P
Document: BR-40 1P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

Single Phase Type 2 Power Surge Protection Device 40kA AC SPD for 230V Power Supply

Description
Item Name: Surge Protection Device Pole: 1P
Uc: 275v Material: Thermoplastic
In: 20kA Imax: 40kA
Up: ≤1.3kV Type: Type 2
Keyword: Lightning Protection Customized Service: OEM/ODM Is Support
Standard: IEC/EN 61643-11 Rated Voltage: 230V/400V
Highlight:

lightning protection device

,

power surge arrester

Key Features
  • Indoor fixed installation, voltage-limited type.
  • Compliant with IEC 61643-1 standard.
  • High discharge capacity with low voltage protection level.
  • Quick response time.
  • Visible status window: displays green during normal operation and red upon failure.
Technical Specifications
BR-40 275 1P
Max. continuous operating a.c. voltage (Uc) 275V
Nominal discharge current (8/20µs) (In) 20kA
Max. discharge current (8/20µs) (Imax) 40kA
Voltage protection level (Up) ≤1.3kV
Response time (tA) ≤25ns
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Max. backup fuse 100A gG
Operating temperature range (Tu) -40°C to 80°C
Relative Humidity ≤95%RH
Mounting 35mm DIN rail
Enclosure material Thermoplastic UL94-V0
Dimensions
Technical dimension drawing of the BR-40 275 1P single phase AC surge protection device showing physical measurements and mounting layout
Application

Designed to protect all types of electrical equipment in power systems from lightning over-voltage, operation over-voltage, and power frequency transient over-voltage impact damage.

Our Strengths
  • All products are manufactured with advanced equipment and strict QC procedures to ensure high quality.
  • Stable and timely supply, with products selling well in both domestic and overseas markets.
  • Quality assurance: 5-year warranty at a competitive price.
  • CB, CE, and TUV certified.
Company Introduction

Wenzhou Britec Electric CO., LTD is a professional surge protector manufacturer in China. The company specializes in AC (DC) SPD production with many years of experience, offering DC surge protection, AC surge protection, data surge protective devices, and more to meet diverse customer needs.

Wenzhou Britec Electric company facility and manufacturing overview
Shipping

The mode of transportation is selected according to the quantity of products and customer requirements. Options include express, sea, or air freight.

Shipping and logistics options for surge protection device orders including express, sea, and air freight
Frequently Asked Questions
Q1: Do you provide a warranty for the goods?

A: Yes, our products are guaranteed for 5 years.

Q2: Could you provide technical support?

A: We have been in this field for many years. If there is any problem, please contact us, and we will provide suggestions from our engineers to help you solve it.

Q3: What is the packing material?

A: Usually packed in cartons.
