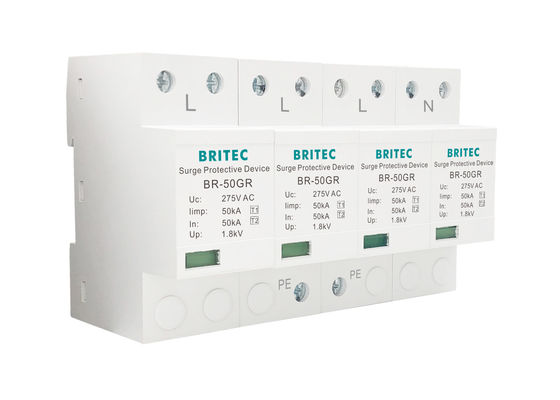

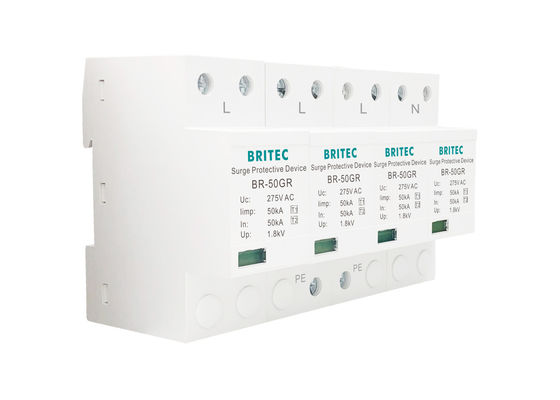

275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD

275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD

    • 275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD
    • 275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD
  • 275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: TUV
    Model Number: BR-50GR 4P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: Surge Protection Device Place Of Origin: Zhejiang, China (Mainland)
    Type: Type 1 Material: Thermal Plastic
    Type Item: AC Power SPD Uc: 275V
    Iimp: 50kA Usage: Low Voltage

    275v Surge Protection Device 50kA Three Phases 4P AC Power SPD



    Feature:



    Designed according to IEC 61643-11/EN 61643-11.
    Red: functionless, immediate replacement required.



    Product detail:



      BR-50GR 4P
    Nominal voltage                                                 Un 230V/400V AC
    Max. continuous operating a.c. voltage              Uc 275V
    Lightning impulse current (10/350us)              Iimp 50kA
    Nominal discharge current (8/20us)                    In 50kA
    Maximum discharge current (8/20us)              Imax 160kA
    Voltage protection level                                     Up ≤2.5kV
    Response time                                                   tA ≤100ns
    Max. backup fuse 500A
    Operating temperature range                            Tu -40℃—80℃
    Cross-section area (Min.) 4mm2
    Cross-section area (Max.) 35mm2
    For mounting on 35mm Din rail
    Enclosure material Thermal plastic UL94-V0
    Test standards                    IEC 61643-11; EN 61643-11
    Certification TUV



    Dimension:



    275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD



    Applications:



    Suitable for B grade surge protection. For installation at LPZ 0A-1 or higher, protecting low voltage
      equipment from surge damage.
    Usually installed in low voltage main distribution box connected to the incoming end of the buildings.
    Applied in modular SPD Class I+II (Class B+C) for three-phase TN-S power supply system.



    Certificate:



    275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD



    Workshop:



    275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD



    Laboratory:



    275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD



    Shipping:



    275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD



    Company information:



    Britec is located in Yueqing city with beautiful scenery and developed science and education. It is

    specialized in power surge protection devices. A high-tech enterprise integrating product development,

    production and sales.  The company's products have independent intellectual property rights and have

    passed the test of national professional institutions, which also obtained the state. The company has

    passed the ISO9001 International Quality Management System.



    275v Power Surge Protection Device 50kA Three Phases 4P AC Power SPD



    FAQ:



    Q1. Are you factory or trade company?
      A: We are factory of more than 17 years export experience.



    Q2. What is your terms of payment?
      A: T/T 30% as deposit, and 70% before delivery.



    Q3. What is your terms of delivery?
      A: EXW, FOB, CIF, DDU.



    Q4. Samples?

      A: Samples are available, but it is not free. Delivery time usually is 7-10 days.



    Q5. How to order and cooperate with you?

      A: Send your inquiry request → Feedback with quotation → Confirm quotation → Price confirmed →

          Proforma invoice provided → Deposit payment → Mass production → Balance payment → Packing

          → Delivery.
