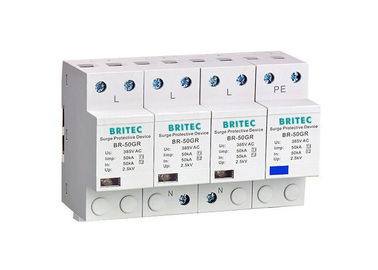

50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector

50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector

    • 50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector
    • 50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector
  • 50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: TUV
    Model Number: BR-50GR 3+1

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: Surge Protector Place Of Origin: Zhejiang, China (Mainland)
    Brand Name: BRITEC Material: Thermal Plastic
    Type Item: SPD Color: White
    Uc: 385V Iimp: 50kA / 100kA
    Usage: Low Voltage Delivery Time: 15-30 Days

    50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector



    Feature:



    This surge protective device is 35mm rail mounting, standard modular design.
    Stable and reliable performance.
    Red: functionless, immediate replacement required.
    High lightning current capability, fast response speed.
    Optional remote signaling interface.



    Technology characteristic:



      BR-50GR 3+1
    Lightning impulse current (10/350us) (L-N / N-PE)              Iimp 50kA / 100kA
    Voltage protection level (L-N / N-PE)                                     Up ≤2.5kV / ≤2.0kV
    Phase/Pole 3P+NPE
    Max. continuous operating a.c. voltage                                 Uc 385V
    Response time                                                                       tA ≤100ns
    Enclosure material             Thermal plastic UL94-V0
    For mounting on 35mm Din rail
    Operating temperature range                                                Tu -40℃—80℃
    Test standard IEC61643-1
    Degree of protection IP20

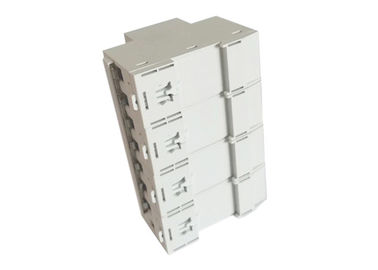

    Dimension:



    50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector



    Application:

    Suitable for B grade surge protection, which protects the electrical network not shocked by the thunder.
    Usually installed in low voltage main distribution box connected to the incoming end of the buildings.

    Company Information:

    Britec established in 2003 located in Yueqing City, Zhejiang Province. We are an enterprise focusing
    on SPD production, sales, and R&D. Our company currently provides up to 100 kinds of surge
    protective Device SPD. We also provide surge protectors according to customers' requirements.

    50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector

    Quality Inspection:

    In our company, we have first-class laboratories and R&D platform, advanced detection equipment
    ensure the security and stability of the products.

    50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector


    Certification:



    Our products have CE, CB, TUV certification. The company implements ISO9001 quality mangement

    system.



    50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector



    Shipment:



    We ship out the goods by Express, by Air or by Sea.



    50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector



    Payment:



    Our trade term: EXW, FOB, CIF.

    Payment term: T/T in advance, L/C, Paypal etc.



    50KA Electric SPD 3 Poles + NPE Lightning Power Surge Protector



    FAQ:



    Q1: What is the MOQ for customized color please?

      A: 500pcs/item could be designed customer color.



    Q2: Where is your main market?

      A: South America, South Africa, South East Asia, the Middle East, Europe.



    Q3: Are you manufacturer? How long have you do the surge protection device?

      A: Yes, we are professional SPD manufacturer since 2003.



    Q4: Where is your factory?

      A: Our factory is located in Yueqing City, Zhejiang Province.
